ECO-FLO EFLS20 Irrigation Pump

SKU # 116838499
Product price

Save Up To
See Price at Check Out
Product Rating is 5.0

Financing Available! Click here for more details...



Delivery Options:

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it. Learn More

power plus

Item Information

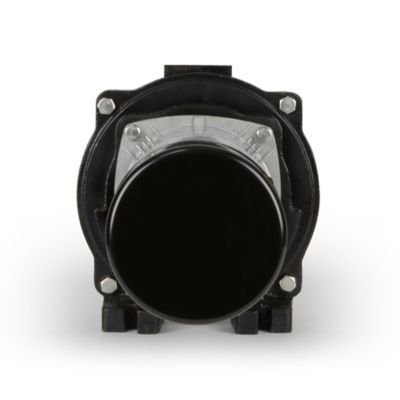

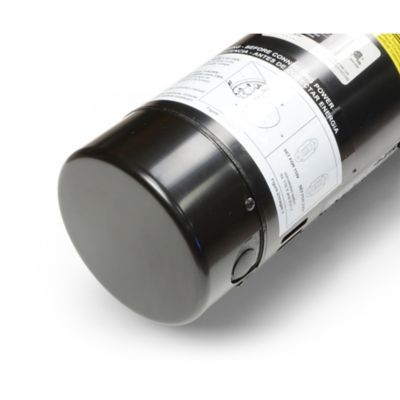

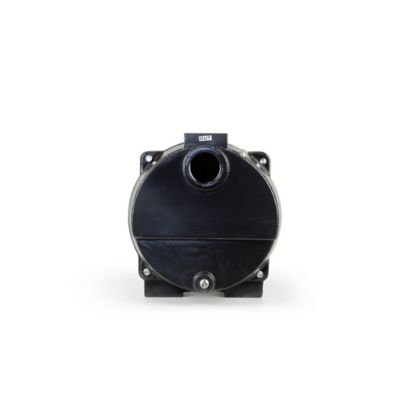

The fast self-priming, heavy-duty ECO-FLO EFLS20 Irrigation Pump is constructed of rugged cast iron and corrosion-resistant thermoplastic. The self-priming design works on automatic sprinkling systems, and also for de-watering and water transfer applications.

  • Ideal for lawn sprinkling applications
  • Heavy-duty 2 HP motor, designed for continuous operation
  • Motors have stainless steel shaft, heavy-duty bearings and dust proof cover to eliminate the most common causes of motor failure
  • Easy service design for quick access to normal wear parts

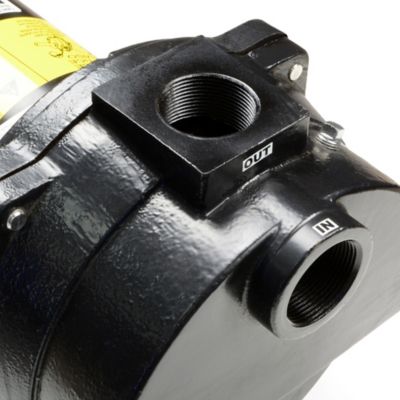

  • 1-1/2 in. suction and discharge pipe size
  • Dual voltage: 115/230V (Factory set at 230V and wiring diagrams are permanently affixed on each motor for easy field change to 115V)
  • 1 year limited warranty

Specification Description
Hertz: 60 Hz
Pressure Rating: 45 PSI
Power Type: Electric
Discharge Size: 1-1/2 in.
Voltage: 115/230 V
Warranty: 1 Year
Flow Rating: 71 GPM
Material: Cast Iron
Brand: ECO-FLO Products Inc.
Total Head: 100 ft.
Rated Speeds: 3,450 RPM
Power Rating: 2 HP
Engine Specifications: PSC
Thread: NPT
Product Type: Water Pumps
Watts: 1,491 W
Manufacturer Part Number EFLS20
ECO-FLO EFLS20 Irrigation Pump is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Great product We purchased this product for our irrigation water. It works wonderful and very quiet. Price was right alright also. Very happy with this product
Date published: 2017-09-14
  • y_2018, m_7, d_18, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_1
  • loc_en_US, sid_116838499, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 4ms

Can I connect this pump to a water tank via a water hose then connect a 50ft water hose attached to sprinkler on the output side?

Asked by: HillyBilly01
HillyBilly01 The inlet on this pump is 2" and should be kept this size for proper operation. The discharge can be sized down but remember the smaller the piping the less flow you will receive. Thanks Customer Service
Answered by: ECO-FLO Products
Date published: 2018-05-16

Where are these made? I try to stay with USA made products.

Asked by: DeepDigger
This pump was manufactured in China.
Answered by: BrittanyH
Date published: 2017-09-06

Is it usable with a pressure switch (30-50psi) and pressure air tank? Does it come with a pressure switch?

Asked by: Ragan
The EFLS does not come with a pressure switch. However one can be installed. The vendor recommends a 20 / 40 switch as this pump does not build much more than 40 psi.
Answered by: BrittanyH
Date published: 2017-08-20

will this pump suck water vertically approx. 80 feet and discharge? is it self priming?

Asked by: 1Semperfidelis
No, it will only pump 20 feet vertically. Yes, it is self-priming.
Answered by: ElliottB
Date published: 2018-06-06
