CountyLine 18 Min. HP 3-Point Post Hole Digger, Auger Not Included
Exclusive
CountyLine 18 Min. HP 3-Point Post Hole Digger, Auger Not Included
Item # 1353114
Stocked & Ready
$769.99
or
or
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Exclusive
CountyLine 18 Min. HP 3-Point Post Hole Digger, Auger Not Included
Item # 1353114
Stocked & Ready
$769.99
or
or
$65/mo.† suggested payments with 12 Months Financing or earn $38 in Rewards+ on this purchase.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
This is a Big & Bulky item.
Pickup Nearby at FRANKLIN TN(6.7) miles Free
Ship to store at Grassland (franklin) TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Drill holes easily with the CountyLine 18 Min. HP 3-Point Post Hole Digger. A great tool for installing fence posts and sign posts, this post hole digger can create 6 in., 9 in. and 12 in. narrow holes. It features a heavy-duty gearbox with heavy-duty PTO driveline and comes with 2 removable legs.Auger sold separately
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Use the post hole digger to quickly and easily drill narrow holes in order to install posts for fences and signs
- Compatible with category 1 and category 2 tractors ranging from 18 HP to 100 HP
- Pair the post hole digger with 6 in., 9 in. and 12 in. augers (sold separately)
- 4 hole adjustments for boom
- Driveshaft cradle and control rod
- Heavy-duty gearbox with heavy-duty PTO driveline
- 2 removable legs included with the post hole digger
- 48 in. cutting depth
- 3 year limited warranty
| Brand | CountyLine |
|---|---|
| Country of Origin | Imported |
| Auger Diameter | 9 in. |
| Auger Length | 48 in. |
| Auger Material | Steel |
| Auger Speed | 0 N/A |
| Boom Diameter | 0 N/A |
| Boom Pole Shape | J shape |
| Compatibility | Any CAT 1 or CAT 2 Tractor |
| Features | N/A |
| Frame Material | Steel |
| Gearbox Ratio | 2.92:1 |
| Hitch Type | Category 1 |
| Lift Capacity | This boom is not designed be a lift device. Max boom lift capacity is to 500 lb. |
| Maximum Drilling Depth | 48 in. |
| Maximum Tractor Horsepower | 100 HP |
| Minimum Tractor Horsepower | 18 HP |
| Number Of Lifting Loops | 4 |
| Primary Material | Steel |
| Product Height | 60 in. |
| Product Length | 72 in. |
| Product Weight | 190 lb. |
| Product Width | 32 in. |
| Recommended Auger Part Number | CountyLine Auger for Post Hole Digger 9 in. SKU # 210024699, CountyLine Auger for Post Hole Digger 6 in. SKU# 210023899, CountyLine Auger for Post Hole Digger, 12 in. SKU 210025499 |
| Warranty | 3 Year Limited |
| Manufacturer Part Number | 24-0469 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 1503 Questions
Newest questions
Q: I need a new 3 point hitch mount where do I get that from
4 days ago1 Answer
- AI-generated, Human-approvedA: For assistance with obtaining a new mount or replacement parts, please contact your local Tractor Supply Company (TSC) store.a day agoHelpful?
Q: Will it work on a LS MT 225S 25 hp. Benny
5 days ago1 Answer
- A: It depends on your tractor's specific power output. This tiller requires a minimum of 30 PTO HP and a maximum of 50 PTO HP, and it is compatible with Category 1 hitches.2 days agoHelpful?
Q: Will this fit a Kubota bx 2350 sub compact tractor
6 days ago1 Answer
- AI-generated, Human-approvedA: No, this post hole digger is not suited for sub-compact tractors like the Kubota BX series due to height requirements. It is designed for Category 1 and Category 2 tractors ranging from 18 HP to 100 HP.6 days agoHelpful?
Q: Gear oil required
15 days ago1 Answer
- AI-generated, Human-approvedA: Yes, this post hole digger requires gear oil before operation as it is shipped dry. You will need approximately two quarts of 80W-90 or 90W gear lube to service the gearbox.15 days agoHelpful?
Q: I just received this item and I cannot get the driveline spring-activated locking pin seated firmly in tractor PTO spline groove. It gets stuck about half way and we'll not go all the way on. We have tried for like 5 hours with different people .
21 days ago1 Answer
- A: Contact Tool Tuff Direct at 720-437-7640 for assistance.20 days agoHelpful?
Q: Will this work on a bx23?
27 days ago1 Answer
- A: This digger requires min 15 PTO HP and should not exceed 50 HP.27 days agoHelpful?
Q: What is the shift size
a month ago1 Answer
- A: The CountyLine 18 Min. HP 3-Point Post Hole Digger uses a 2-inch round output shaft on its gearbox to connect to the auger. Gearbox Output Shaft: 2 in. round (standard size for attaching matching CountyLine or generic Cat 1/Cat 2 tractor augers). Tractor PTO Driveline: 1-3/8 in. with a 6-spline setup (Series 4 PTO driveline). Boom Outer Diameter: 3 in.a month agoHelpful?
Q: How big is the box
a month ago1 Answer
- A: The CountyLine 18 Min. HP 3-Point Post Hole Digger does not come packaged in a fully enclosed cardboard box; instead, it is banded and shipped partially pre-assembled on a steel or wooden shipping pallet. The assembled unit has a total product weight of 190 lbs and overall dimensions of 60 inches high, 72 inches long, and 32 inches wide.a month agoHelpful?
Q: does an 18" auger fit this
a month ago1 Answer
- A: CountyLine 3-Point Post Hole Digger is factory-rated and recommended by Tractor Supply Co. to pair specifically with 6-inch, 9-inch, and 12-inch augers.a month agoHelpful?
Q: Will this work on a Yanmar SA324
a month ago1 Answer
- A: Yes, the CountyLine 3-Point Post Hole Digger will work on a Yanmar SA324, but with careful operation. The tractor provides a Cat 1 3-point hitch, a standard 540 RPM rear PTO, and about 18.1 PTO horsepower, which meets the digger's 18 HP minimum requirementa month agoHelpful?
1 - 10 of 1503 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 1503 Questions
Newest questions
Q: I need a new 3 point hitch mount where do I get that from
4 days ago1 Answer
- AI-generated, Human-approvedA: For assistance with obtaining a new mount or replacement parts, please contact your local Tractor Supply Company (TSC) store.a day agoHelpful?
Q: Will it work on a LS MT 225S 25 hp. Benny
5 days ago1 Answer
- A: It depends on your tractor's specific power output. This tiller requires a minimum of 30 PTO HP and a maximum of 50 PTO HP, and it is compatible with Category 1 hitches.2 days agoHelpful?
Q: Will this fit a Kubota bx 2350 sub compact tractor
6 days ago1 Answer
- AI-generated, Human-approvedA: No, this post hole digger is not suited for sub-compact tractors like the Kubota BX series due to height requirements. It is designed for Category 1 and Category 2 tractors ranging from 18 HP to 100 HP.6 days agoHelpful?
Q: Gear oil required
15 days ago1 Answer
- AI-generated, Human-approvedA: Yes, this post hole digger requires gear oil before operation as it is shipped dry. You will need approximately two quarts of 80W-90 or 90W gear lube to service the gearbox.15 days agoHelpful?
Q: I just received this item and I cannot get the driveline spring-activated locking pin seated firmly in tractor PTO spline groove. It gets stuck about half way and we'll not go all the way on. We have tried for like 5 hours with different people .
21 days ago1 Answer
- A: Contact Tool Tuff Direct at 720-437-7640 for assistance.20 days agoHelpful?
Q: Will this work on a bx23?
27 days ago1 Answer
- A: This digger requires min 15 PTO HP and should not exceed 50 HP.27 days agoHelpful?
Q: What is the shift size
a month ago1 Answer
- A: The CountyLine 18 Min. HP 3-Point Post Hole Digger uses a 2-inch round output shaft on its gearbox to connect to the auger. Gearbox Output Shaft: 2 in. round (standard size for attaching matching CountyLine or generic Cat 1/Cat 2 tractor augers). Tractor PTO Driveline: 1-3/8 in. with a 6-spline setup (Series 4 PTO driveline). Boom Outer Diameter: 3 in.a month agoHelpful?
Q: How big is the box
a month ago1 Answer
- A: The CountyLine 18 Min. HP 3-Point Post Hole Digger does not come packaged in a fully enclosed cardboard box; instead, it is banded and shipped partially pre-assembled on a steel or wooden shipping pallet. The assembled unit has a total product weight of 190 lbs and overall dimensions of 60 inches high, 72 inches long, and 32 inches wide.a month agoHelpful?
Q: does an 18" auger fit this
a month ago1 Answer
- A: CountyLine 3-Point Post Hole Digger is factory-rated and recommended by Tractor Supply Co. to pair specifically with 6-inch, 9-inch, and 12-inch augers.a month agoHelpful?
Q: Will this work on a Yanmar SA324
a month ago1 Answer
- A: Yes, the CountyLine 3-Point Post Hole Digger will work on a Yanmar SA324, but with careful operation. The tractor provides a Cat 1 3-point hitch, a standard 540 RPM rear PTO, and about 18.1 PTO horsepower, which meets the digger's 18 HP minimum requirementa month agoHelpful?
1 - 10 of 1503 Questions
Similar Items
-
-
-
-
Top Rated
-
-
-
-
-
-
-
-
Items You May Like
-
Top Rated
-
Top Rated
-
-
-
-
-
-
-
-
-
-
Reviews
Most Helpful Favorable Review
5 out of 5 stars.
Excellent implement
4 years ago
The quality is great for the price as compared to similar implements when I was shopping. I saw a lot of negative reviews about shear pins “failing” (aka doing their job protecting the shaft and gearbox. But I think those people were trying to start the pto at 540 rpm with downward pressure on the 3 pt control. In my opinion that is negligent abuse of this particular implement. If you hover the auger over the intended hole, idle the throttle, engage the pto at IDLE, and then carefully lower the 3 pt until the rock/ root buster makes a nice pilot hole and then EASE the 3 pt down until you reach your desired depth you won’t have a problem and you probably won’t even have to increase engine rpm from idle, saving you wear and tear (and fuel) on your tractor, as well as your shear pins! This is one implement YOU DO NOT HAVE TO RUN AT 540 pto rpm.
27 people found this helpful
Show Reviews:
Most Helpful Critical Review
1 out of 5 stars.
Worked great for an hour
6 years ago
I bought this a few months ago but didn't get around to using it until last weekend. At first it was fantastic, even with clay soil the 12" auger worked like a champ. After a while I noticed a lot of clattering and saw that the two bolts that attach the output guard had both fallen out and the guard was down around the auger. Those bolts were preinstalled, they were not part of the installation so its not like I didn't put them in properly. They also aren't listed in the user's manual so I don't know what to replace them with. My biggest grip is that I can't get anyone to send me replacement bolts or even tell me what size they are to get my own. I've called the company that makes then and also emailed tractor supply, without a response.
33 people found this helpful
Show Reviews:

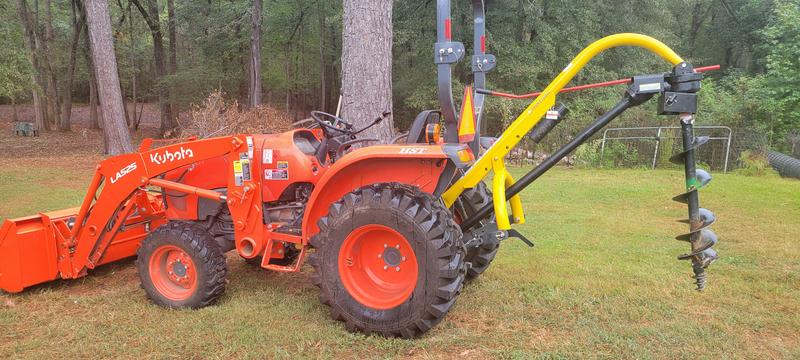

Customer Images and Videos
- purchase
- price
- instructions
- quality
- satisfaction
- setup
- gears
- installation
1 to 4 of 1752 Reviews .
1 – 4 of 1752 Reviews
Most Recent
Review 1
5 out of 5 stars.
This thing is a monster!
16 days ago
This thing is a monster with the 12” auger blade!
SweepstakesYes
Sherman, TX
Review 1
5 out of 5 stars.
Great addition to tractor
2 months ago

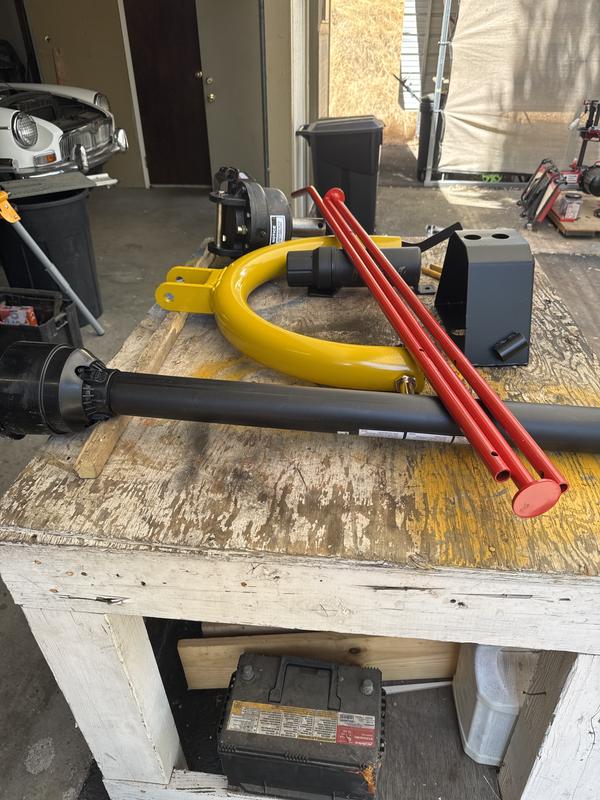

Very heavy but did get it assembled pretty quick.
We purchased a separate 12" auger and it fit with this accessory.

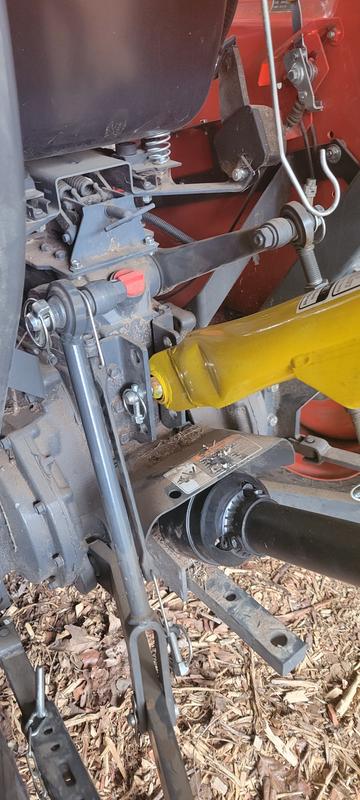

Attaching to tractor was pretty straightforward. Loved the ring PTO lock, wish my rotary cutter came with the same. It took some time learning how to hook it up, but got it by lowering the Auger without binding anywhere, it was easy to align and push on. Did I mention I loved the Ring PTO lock?
I ran this on my Yanmar SA325 and it does a great job running at IDLE. With all of the rain and the clay I did have a case where drilling through grass was difficult, moved the bit over about 6" and it seemed to get through no problem.
Definitely worth the buy. Watch YouTube videos for tips for connecting/disconnecting and general use. It is a dangerous tool, follow the safety warnings and be safe!
SweepstakesYes
Yes, I recommend this product.
Pennsylvania
Reviews 3
4 out of 5 stars.
Home owner
2 months ago
Works well but assembly was a little time consuming
SweepstakesYes
Review 1
5 out of 5 stars.
My review
2 months ago
Works like it should, good quality
SweepstakesYes
Yes, I recommend this product.
