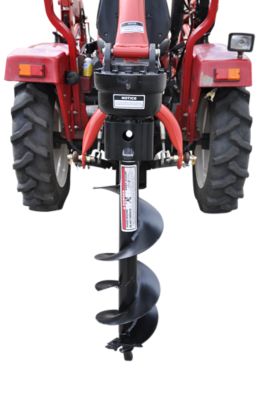

The AgKNX Model 400 Post Hole Digger is for most sub-compact, compact and Category 0 tractors with CAT 1 pins, allowing for fast post hole digging with convenient, safe operation from the tractor seat. The Model 400 can also be used on smaller CAT 1 tractors. The post hole digger features a heavy-duty gear box, durable driveline, and rust-resistant powder coat finish. Quick connect to 6 spline PTO to quickly change out implements. Rated for tractors up to 45 HP, this post hole digger can make quick work of your next job. CAT 0, Compact and Sub-Compact tractors typically come in 2 different configurations concerning the 3-pt. Some come with CAT 1 pins and other with CAT 0 pins. A CAT 0 3-pt includes 5/8" top link pin and 5/8" lift arm pin. A CAT 1 3-pt includes a 3/4" top link pin and 7/8" lift arm pin. Our Model 400 Post Hole Digger works with tractors that have the CAT 1 pins. CAT 0 lift arm pin is sold separately.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Ideal post hole digger for sub-compact, compact and Category 0 tractors with CAT 1 pins.
- Fast post hole digging with convenient, safe operation from the tractor seat
- Rated for tractors up to 45 HP
- Quick connect to 6 spline PTO
- Standard duty rating
- Top link pin hole diameter: 3/4 in. (Works with 5/8 in. pin. Bushing sold separately)
- Lift arm pin diameter: 7/8 in CAT 1 *(5/8 in CAT 0 pin sold separately)
- 4 position adjustment
- This post hole digger is compatible with 6 in., 9 in., 12 in. compact auger and standard (sold separately)

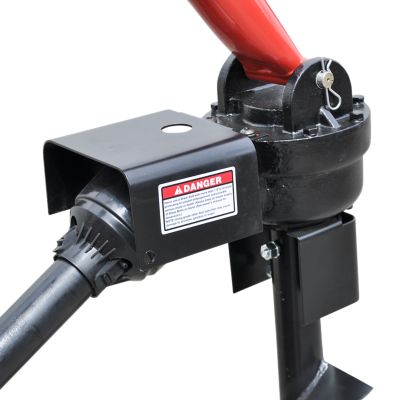

- Digger includes: Boom with high strength 2-7/8 in. tubing with 4 adjustment hole sets and manual canister; PTO driveline, robust 1 series with safety shields (1 3/8 in. x 6 quick release x 1 1/4 in. round with shear bolt); heavy duty right angle gear box; high strength A-frame - 21 in. lift arm spacing; hardware kit with necessary pins and bolts
- Note: Can be purchased with or without augers (all augers are 36 in. length); augers 6-12 in. diameter are standard-duty with replaceable edges
| Brand | AgKNX |
|---|---|
| Country of Origin | Imported |
| Auger Diameter | 6 in. 9 in. 12 in. |
| Auger Length | 36 in. |
| Auger Material | Steel |
| Auger Speed | 186 rpm |
| Boom Diameter | 2.9 in. |
| Boom Pole Shape | L shape |
| Compatibility | Sub-Compact, Compact & Category 0 tractors |
| Features | Rust/Corrosion Resistant |
| Gearbox Ratio | 2.92:1 |
| Hitch Type | N/A |
| Lift Capacity | This boom is not designed be a lift device. Max boom lift capacity is to 500 lb. |
| Maximum Tractor Horsepower | 45 hp |
| Minimum Tractor Horsepower | 0 hp |
| Number Of Lifting Loops | 4 |
| Primary Material | Steel |
| Product Height | 37.6 in. |
| Product Length | 48 in. |
| Product Weight | 137.50 lb. |
| Product Width | 32.8 in. |
| Recommended Auger Part Number | 1930006, 1930007, 1930008 |
| Manufacturer Part Number | 24-0361 |
Q: Would this work good with a mahindra 1626? Or would i need the next size up
3 days ago- A: It will fit on your tractor, but we think you may be better off with a slightly larger model. The Model 400 is our smallest tractor-mounted post hole digger. It's specifically sized for compatibility with sub-compact tractors, and we usually recommend pairing it with 36" compact augers because of size limitations of the tractor. Your compact tractor is a bit larger and would be compatible with a Model 650 (which pairs better with standard, 48" length augers). The CountyLine PHD 100, which should be available in your local TSC store, would also be a good fit for that tractor.2 days agoHelpful?
Q: Where can i order replacement parts the main boom be t already
5 days ago- A: For warranty claims, look in your operator's manual for registration and contact information. To purchase a new boom, look us up at www.ToolTuffDirect.com. The part number is 24-0015 and the price is reasonable.3 days agoHelpful?
Q: How far from the rear tires is the center point of the hole? I have a ditch that I have to back up to and drill on the other side of
10 days ago- A: The length of the boom from the top link connector to the gear box connector is 57-1/2". That's the distance from the tractor frame you will be able to reach out. Our next size up, the Model 650, is 60" from toppling to gearbox, FYI.9 days agoHelpful?
Q: About how deep does it drill with a sub compact tractor
10 days ago- A: The Model 400 usually ships with compact 36" (long) augers. You can typically get right down to 36" depth, but you may need a manual post-hole digger to clear the loose dirt if you want to get down to the full 36 inches. 48" augers are also compatible with the gearbox, but they will drag on the ground if your tractor's frame is too small.9 days agoHelpful?
Q: Will this fit a Mahindra 2026 1120 hst
a month ago- A: Hello, finding the perfect fit for your equipment is easy. Pop the name of the accessory or attachment you're looking for into our part finder at www.tsc.ordertree.com If you have trouble finding the replacement part on the TSC website, you might want to try reaching out to the manufacturer directly.a month agoHelpful?
Q: Will it work with the LS MT225S tractor. 25 hp w 18hp pto cat 1 pins. Does TSC stock the augers in store?
2 months ago- A: To answer your first question, yes, we believe our Model 400 is a good fit for your tractor. Your tractor is sub-compact and the Model 400 has a smaller frame to better fit smaller tractors. Consider getting compact augers (36" length) because with a sub-compact full-length augers sometimes drag on the ground when driving. On your second question, the Model 400 3-point post hole digger is not stocked at Tractor Supply stores; it's available through online ordering only. Auger bits that fit the unit are sold in stores, but compact augers may be hit or miss.2 months agoHelpful?
Q: Do it comes with a Auger
4 months ago- A: For this listing, the auger doesn't come with it. You can purchase auger separately or find our combo listing. Thank you4 months agoHelpful?
Q: will this work with a kubota BX 2680?
4 months ago- A: The 400 will work great.4 months agoHelpful?
Q: Will this work with a kubota B7500?
5 months ago- A: Thank you for your question. It is designed for tractors with a Category 1 three-point hitch and up to 45 PTO HP, which aligns with the general specifications of a Kubota B7500. However, we are unable to confirm compatibility with the B7500 specifically. We recommend verifying with AgKNX customer support.5 months agoHelpful?
Q: Will this work on a Massey Ferguson 1655?
6 months ago- A: Yes but the Model 650 is a better fit.6 months agoHelpful?
Q&As
Q: Would this work good with a mahindra 1626? Or would i need the next size up
3 days ago- A: It will fit on your tractor, but we think you may be better off with a slightly larger model. The Model 400 is our smallest tractor-mounted post hole digger. It's specifically sized for compatibility with sub-compact tractors, and we usually recommend pairing it with 36" compact augers because of size limitations of the tractor. Your compact tractor is a bit larger and would be compatible with a Model 650 (which pairs better with standard, 48" length augers). The CountyLine PHD 100, which should be available in your local TSC store, would also be a good fit for that tractor.2 days agoHelpful?
Q: Where can i order replacement parts the main boom be t already
5 days ago- A: For warranty claims, look in your operator's manual for registration and contact information. To purchase a new boom, look us up at www.ToolTuffDirect.com. The part number is 24-0015 and the price is reasonable.3 days agoHelpful?
Q: How far from the rear tires is the center point of the hole? I have a ditch that I have to back up to and drill on the other side of
10 days ago- A: The length of the boom from the top link connector to the gear box connector is 57-1/2". That's the distance from the tractor frame you will be able to reach out. Our next size up, the Model 650, is 60" from toppling to gearbox, FYI.9 days agoHelpful?
Q: About how deep does it drill with a sub compact tractor
10 days ago- A: The Model 400 usually ships with compact 36" (long) augers. You can typically get right down to 36" depth, but you may need a manual post-hole digger to clear the loose dirt if you want to get down to the full 36 inches. 48" augers are also compatible with the gearbox, but they will drag on the ground if your tractor's frame is too small.9 days agoHelpful?
Q: Will this fit a Mahindra 2026 1120 hst
a month ago- A: Hello, finding the perfect fit for your equipment is easy. Pop the name of the accessory or attachment you're looking for into our part finder at www.tsc.ordertree.com If you have trouble finding the replacement part on the TSC website, you might want to try reaching out to the manufacturer directly.a month agoHelpful?
Q: Will it work with the LS MT225S tractor. 25 hp w 18hp pto cat 1 pins. Does TSC stock the augers in store?
2 months ago- A: To answer your first question, yes, we believe our Model 400 is a good fit for your tractor. Your tractor is sub-compact and the Model 400 has a smaller frame to better fit smaller tractors. Consider getting compact augers (36" length) because with a sub-compact full-length augers sometimes drag on the ground when driving. On your second question, the Model 400 3-point post hole digger is not stocked at Tractor Supply stores; it's available through online ordering only. Auger bits that fit the unit are sold in stores, but compact augers may be hit or miss.2 months agoHelpful?
Q: Do it comes with a Auger
4 months ago- A: For this listing, the auger doesn't come with it. You can purchase auger separately or find our combo listing. Thank you4 months agoHelpful?
Q: will this work with a kubota BX 2680?
4 months ago- A: The 400 will work great.4 months agoHelpful?
Q: Will this work with a kubota B7500?
5 months ago- A: Thank you for your question. It is designed for tractors with a Category 1 three-point hitch and up to 45 PTO HP, which aligns with the general specifications of a Kubota B7500. However, we are unable to confirm compatibility with the B7500 specifically. We recommend verifying with AgKNX customer support.5 months agoHelpful?
Q: Will this work on a Massey Ferguson 1655?
6 months ago- A: Yes but the Model 650 is a better fit.6 months agoHelpful?
Similar Items
Items You May Like
Reviews
- purchase
- setup
- value
- installation
- price
- quality
- size
- small
AgKNX model 400 is a winner
Yes, I recommend this product.
Beat up in shipping

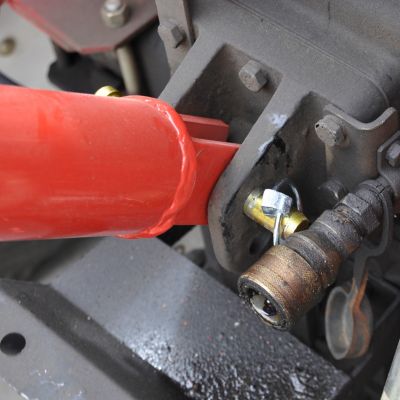

For the PTO driveline, if you're talking about the tractor side, it is a quick disconnect. Try pulling the (yellow zinc-plated / brass colored) end of the collar back, toward the body of the driveline (rather than pushing the black part forward). It should go on in a snap, and it's a very reliable design, just that they have a bit of a learning curve if you're used to the push-button type.
