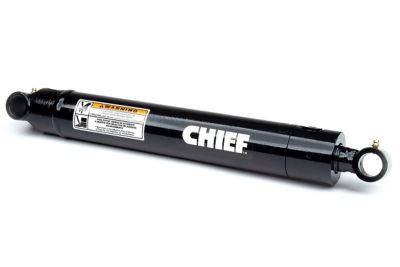

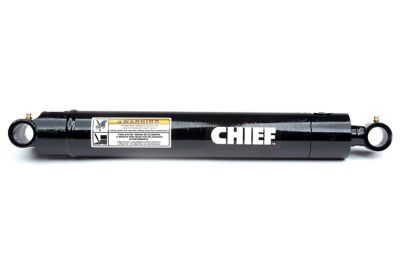

Chief WX Welded Hydraulic Cylinder, 3 Bore x 18 Stroke

SKU: 130477499
Chief WX Welded Hydraulic Cylinder, 3 Bore x 18 Stroke
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.0
4.0
 (1)

Quantity

TSC of  #

,
TSC of  #

,
TSC of  #

,
TSC of  #

,
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

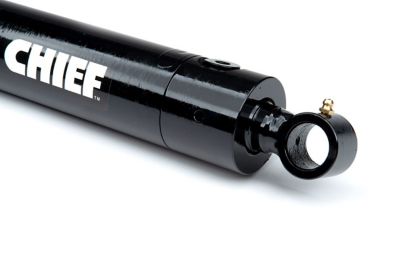

The patented CHIEF WX is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. The adjustable 360° rotating gland allows you to make port alignments as needed. All ports are recessed to maximize an already slender cylinder design. One port is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction. The CHIEF WX has become the cylinder of choice in applications where the same size cylinder can be used in a variety of directions and port positions, thereby eliminating the need to stock assorted cylinders.

  • Every CHIEF WX cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • WX cylinders have a 3,000 PSI operating range
  • 3 year limited warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Includes: Mounting pins and clips
Bore Diameter: 3 in.
Type: Welded Cylinder
Application: Double-acting
Package Quantity: 1
Port Size: SAE 8
Product Width: 5-1/4 in.
Material: Iron/Steel
Pin Diameter: 1 in.
Special Feature: 407 degree rotating gland
Product Length: 3-1/2 in.
Warranty: 3 Year
Brand: Chief
Maximum Weight Capacity: 21200 lb.
Product Weight: 35 lb.
Rod Diameter: 1-1/2 in.
Product Height: 3-1/2 in.
Maximum Operating Pressure: 3,000 PSI
Manufacturer Part Number 207440
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 1ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

what is the length center of pin to center of pin?

Asked by: intimidator
The retracted length, center of pin to center of pin is 26”. Extended length is 44”.
Answered by: MitchellW
Date published: 2019-07-22
