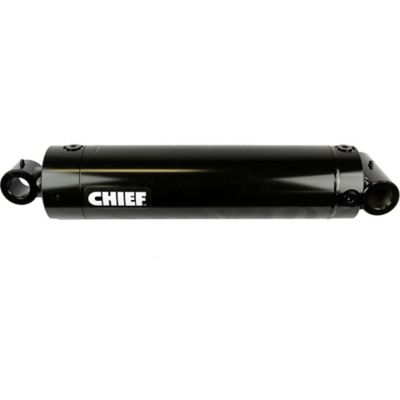

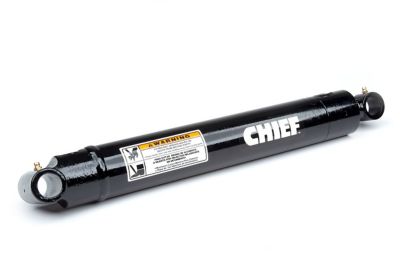

The patented CHIEF WX is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. The adjustable 360° rotating gland allows you to make port alignments as needed. All ports are recessed to maximize an already slender cylinder design. One port is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction. The CHIEF WX has become the cylinder of choice in applications where the same size cylinder can be used in a variety of directions and port positions, thereby eliminating the need to stock assorted cylinders.
Every CHIEF WX cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
WX cylinders have a 3,000 PSI operating range
3 year limited warranty
Note: This product may require up to 2 additional days for order processing prior to shipping
SPECIFICATIONS
Specification
Description
Application:
Double-acting
Bore Diameter:
2-1/2 in.
Brand:
Chief
Includes:
Mounting pins and clips
Material:
Iron/Steel
Maximum Operating Pressure:
3,000 PSI
Maximum Weight Capacity:
2280 lb.
Package Quantity:
1
Pin Diameter:
0-3/4 in.
Port Size:
SAE 8
Product Height:
3 in.
Product Length:
3 in.
Product Type:
Hydraulic Cylinders
Product Weight:
65 lb.
Product Width:
3-1/2 in.
Rod Diameter:
1-3/8 in.
Special Feature:
399 degree rotating gland
Type:
Welded Cylinder
Warranty:
3 Year
Manufacturer Part Number
207427
