Chief 3.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder

5.01 Reviews

Item # 130478399

Chief 3.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder

5.01 Reviews

Item # 130478399

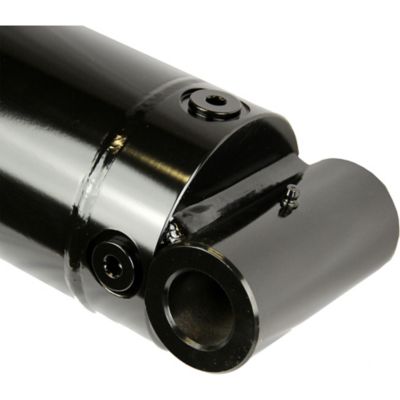

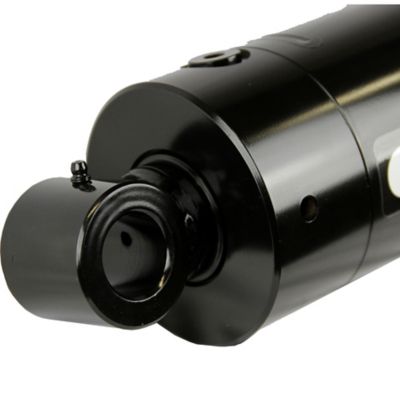

Image showing 3.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder
Image showing 3.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder
Image showing 3.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder
Image showing 3.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder
$329.99
See 2 deals for this item

This item is available online only

Standard Delivery to

37027

subtract

Free Ship To Store on orders $29 and over.Learn More

Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 3.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. The adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize an already slender double acting hydraulic cylinder design. One port is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.Note: This product may require up to 2 additional days for order processing prior to shipping

  • Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • Has a 3,000 PSI operating range
  • Ductile iron piston with nylon, glass-filled wear ring for durability
  • Adjustable 360-degree rotating gland allows you to make port alignments as needed
  • Rod is a nitrided steel bar with corrosion and scratch resistance
  • Double acting hydraulic cylinder design made for tough jobs
  • Satin black paint finish
  • Individually poly bagged hydraulic cylinder is perfect for farming applications
  • Made in the USA
  • 3-year limited warranty
  • Measures 18 in. retracted and 28 in. extended
  • Column load: 28,860 lb.
  • Has a 3.5 in. bore and 10 in. stroke length
  • Adjustments are made by using a spanner wrench to rotate the gland with port clockwise or counterclockwise
