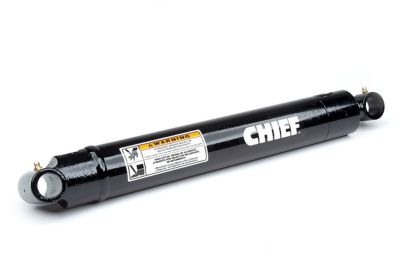

Chief 2.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder

Shop all Chief

  • Online Only

Chief 2.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder

Item # 1304754

Chief Chief 2.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder
Chief Chief 2.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder
$249.99
or
or

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Shop all Chief

  • Online Only

Chief 2.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder

Item # 1304754

Chief Chief 2.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder
Chief Chief 2.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder

$249.99
or
or
financeCard Logo
$42/mo.†  suggested payments with 6 Months Financing or earn $12 in Rewards+ on this purchase.

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

​
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 2.5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall space is restricted. An adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports on the welded hydraulic cylinder are recessed to maximize an already slender cylinder design. One port is located on the rotating gland and two are located on the hydraulic cylinder's fixed base.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.

  • Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • Welded hydraulic cylinder with a 3,000 PSI operating range
  • Ductile iron piston with nylon, glass-filled wear ring is very durable
  • Adjustable 360-degree rotating gland allows you to make port alignments as needed
  • Rod is a nitrided steel bar with corrosion and scratch resistance
  • Double acting hydraulic cylinder design
  • Satin black paint finish
  • Individually poly bagged for ease of transport
  • 3-year limited warranty
  • Offers versatility in mounting options. It features recessed ports, with one located on the rotating gland and two on the fixed base. Adjustments are easily made using a spanner wrench to rotate the gland.
BrandChief
Country of OriginImported
Bore Diameter2.5 in.
Brand CompatibilityUniversal
CompatibilityTractors
Extended Length28 in.
Hydraulic Cylinder TypeWelded
Maximum Operating Pressure3,000 PSI
Maximum Weight Capacity14,720 lb.
Model CompatibilityMost applications
Package Quantity1
Pin Diameter0.75 in.
Port Size8 SAE
Primary MaterialIron
Product Height3 in.
Product Length3 in.
Product Weight21 lb.
Product Width4 in.
Retracted Length18 in.
Rod Diameter1-3/8 in.
Single/Double ActingDouble acting
Stroke Distance10 in.
Warranty3 Year Limited
Manufacturer Part Number207402
