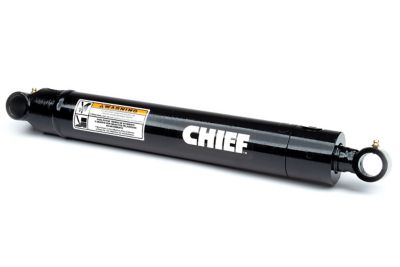

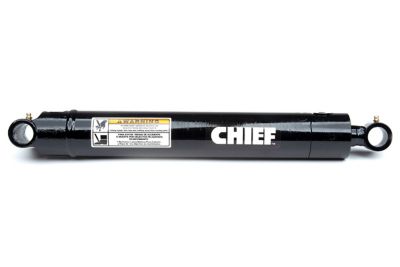

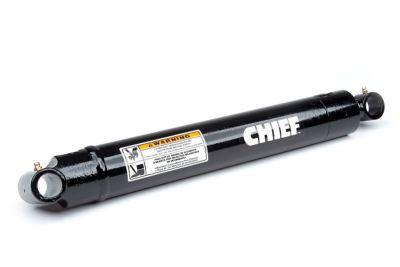

Chief 5 in. Bore x 30 in. Stroke WX Welded Hydraulic Cylinder

Shop all Chief
Chief 5 in. Bore x 30 in. Stroke WX Welded Hydraulic Cylinder

Item # 1304814

Chief Chief 5 in. Bore x 30 in. Stroke WX Welded Hydraulic Cylinder
Chief Chief 5 in. Bore x 30 in. Stroke WX Welded Hydraulic Cylinder
$979.99
Chief 5 in. Bore x 30 in. Stroke WX Welded Hydraulic Cylinder

Item # 1304814

Chief Chief 5 in. Bore x 30 in. Stroke WX Welded Hydraulic Cylinder
Chief Chief 5 in. Bore x 30 in. Stroke WX Welded Hydraulic Cylinder
$979.99

The Chief 5 in. Bore x 30 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. The adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize an already slender double acting hydraulic cylinder design. One port is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.

  • Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • Welded hydraulic cylinder with a 3,000 PSI operating range
  • Ductile iron piston with nylon, glass-filled wear ring is very durable
  • Adjustable 360-degree rotating gland allows you to make port alignments as needed
  • Rod is a nitrided steel bar with corrosion and scratch resistance
  • Double acting hydraulic cylinder design
  • Satin black paint finish
  • Individually poly bagged for ease of transport
  • 3-year limited warranty
  • Offers versatility in mounting options. It features recessed ports, with one located on the rotating gland and two on the fixed base. Adjustments are easily made using a spanner wrench to rotate the gland.
