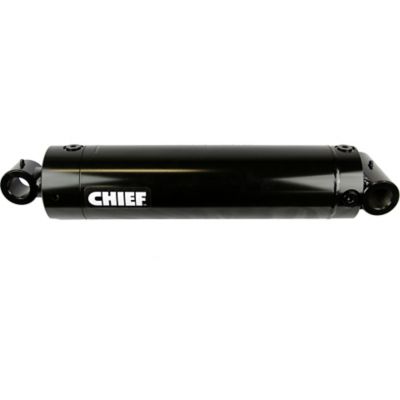

Chief 2.5 in. Bore x 48 in. Stroke WX Welded Hydraulic Cylinder
Item # 130476599
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Chief 2.5 in. Bore x 48 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. The hydraulic cylinder's adjustable 360 rotating gland allows you to make port alignments as needed. All ports are recessed to maximize an already slender double acting hydraulic cylinder design. One port is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
- Welded hydraulic cylinder has a 3,000 PSI operating range
- Ductile iron piston with nylon, glass-filled wear ring for longer life
- Adjustable 360-degree rotating gland allows you to make port alignments as needed
- Rod is a nitrided steel bar with corrosion and scratch resistance for durability
- Double acting hydraulic cylinder design for efficiency
- Satin black paint finish gives a simple, stylish look
- Individually poly bagged farm hydraulic cylinder is made for hard work
- Made in the USA
- 3-year limited warranty
- Has a retracted length of 14 in. and an extended length of 20 in.
- Port size: SAE 8
- Column load: 14720 lb.
- Weight: 17 lb.
- Pin diameter: .75 in.
- Rod diameter: 1.375 in.
| Brand | Chief |
|---|---|
| Country of Origin | Made in USA |
| Bore Diameter | 2.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Tractors |
| Extended Length | 106 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 3,540 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 0-3/4 in. |
| Port Size | SAE #8 |
| Primary Material | Iron |
| Product Height | 3 in. |
| Product Length | 3 in. |
| Product Weight | 57 lb. |
| Product Width | 5-1/2 in. |
| Retracted Length | 58 in. |
| Rod Diameter | 1-3/8 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 48 in. |
| Warranty | 3 Year Limited |
| Manufacturer Part Number | 207426 |
