VIAIR 0.25 HP 2 gal. High Flow Tank Air Source Kit, 150 PSI
Item # 138385899
Neighbor’s Club Members earn points with purchases.
Item # 138385899
This item is available online only
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Viair 2.0 gal. High Flow 150 PSI Tank Air Source Kit comes with a powerful, 30% duty cycle, 280C VIAIR compressor mounted on a 150 PSI-rated 2.0 gal. Matte Black air tank with 5 ports. All Air Source kits come with a pre-wired pressure switch (P/N / 110-150 PSI). The 150 PSI Tank Air Source kit comes complete with a 1/4 in. NPT brass drain cock, 1/4 in. NPT ASME coded and certified safety valve, 1/2 in. NPT port compression fitting for 3/8 in. (I.D.) air line pre-installed. To use the Air Source kit, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 150 PSI/ 1.59 cfm rated 2.0 gal. matte black air tank with 5 ports
- 280C Pewter Air Compressor
- Thermal Overload Protector

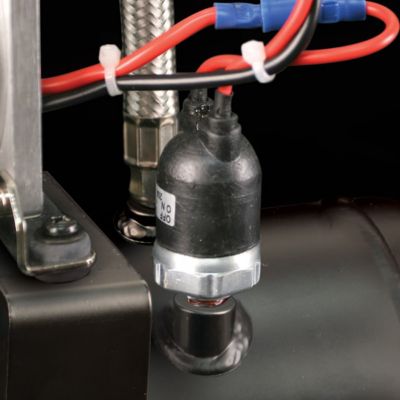

- Air Source kit comes with a pre-wired pressure switch (110 PSI On / 145 PSI Off)

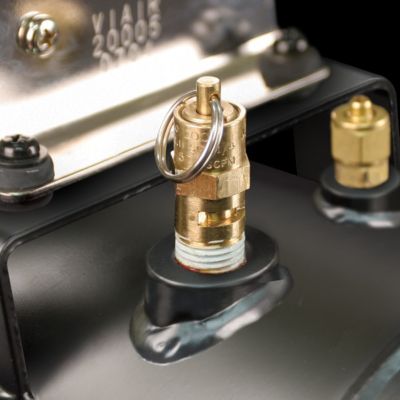

- 1/4 in. NPT ASME coded and certified safety valve (175 PSI)

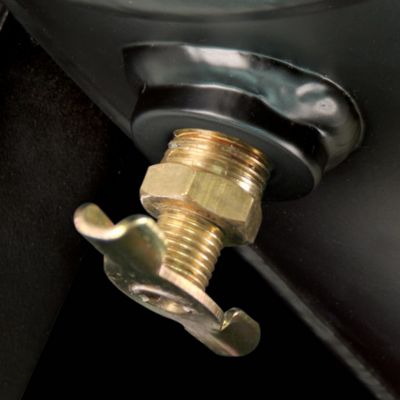

- 1/4 in. NPT Brass Drain Cock
- Leader Hose with Check Valve
- 12-volt 150 PSI tank Air Source kit
- Permanent Magnetic Motor
- Duty Cycle: 30% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 19 Amps
- Ingress Protection Rating: IP54
- Dimensions: 18.9 in. L x 5.9 in. W x 13.7 in. H
- Net Weight: 19.75 lb.
- Pre-installed 1/2 in. NPT port compression fitting for 3/8 in. (I.D.) air line
- Connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting to use the 150 PSI tank Air Source kit
- Use of a 40-amp relay and appropriately-rated fuse with the Air Source kit is strongly recommended to preserve the life of the pressure switch
| Brand | VIAIR |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 1.59 CFM |
| Air Outlet Size | 1/4 in. NPT |
| Amperage | 19A |
| Compressor Horsepower | 0.25 HP |
| Compressor Maximum PSI | 150 PSI |
| Compressor Tank Capacity | 2 gal |
| Compressor Voltage | 12V |
| Cord Length | 1 ft. |
| Drain System | Included |
| Drive Type | DC |
| Features | None |
| Number Of Power Speeds | Single |
| Primary Color | No Color |
| Product Height | 16.0 in. |
| Product Length | 22.0 in. |
| Product Weight | 24.0 lb. |
| Product Width | 9.0 in. |
| Pump Material | Steel |
| Tank Fill Time | 3 minutes 40 seconds |
| Tank Style | Horizontal |
| Warranty | 1 Year |
| Manufacturer Part Number | 20005 |
Q: 30% duty cycle is how long of a run time before needing to be shut off? How fast does it fill the tank to 150 PSI? Can it be used to fill full size truck tires?
6 years ago- A: It takes about 3 minutes and 40 seconds to fill the tank from 0 to 150psi. For larger truck tires I would recommend the 20007 or 20008 as those units come with larger more capable compressors.6 years agoHelpful?
