Mighty Mule E-Z Gates 10-Watt Solar Panel, FM123

SKU # 360987999
Product price

Save Up To
See price at checkout Why?
Product Rating is 4.8
4.8
(14)

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

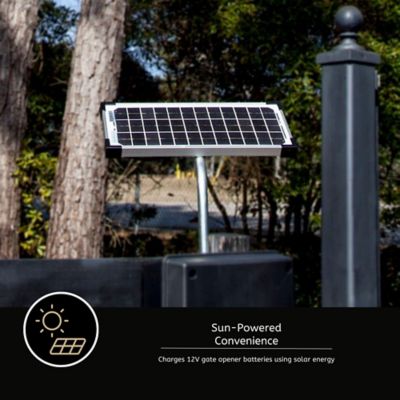

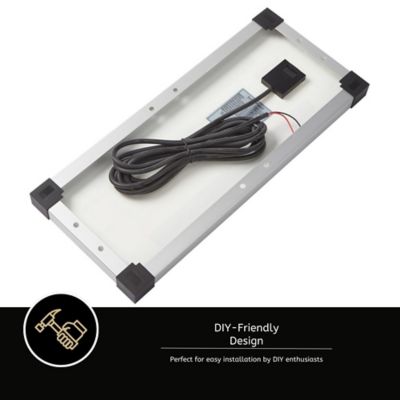

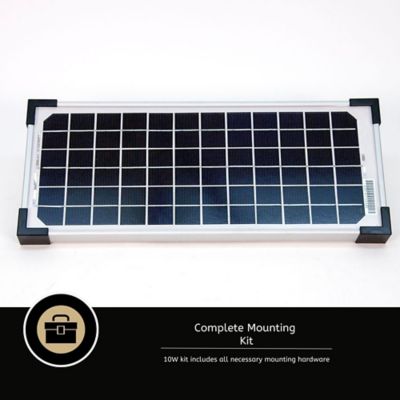

The Mighty Mule 10-Watt Solar Panel Kit is an excellent option for charging the battery in your solar powered gate opener system. This solar panel collects energy from the sun and provides a trickle charge of power to keep an automatic gate opener 12 V battery or batteries fully charged. The solar panel kit includes a strong steel support and mounting hardware with required 8 ft. low voltage wire, ideal for environments lacking a power source at the site of installation.

  • Ideal for sunny climates - not for use in high-shade areas
  • Designed for the "Do-it-Yourself" Installer
  • Includes all required mounting hardware
  • Some applications may require longer low voltage wire; available lengths include 100 ft. (RB509-100), 250 ft. (RB509-250) or 500 ft. (RB509-500)
  • Compatible with all Mighty Mule swing and slide gate openers
  • Backed by a 12 month Mighty Mule warranty and technical support

Specification Description
Product Type: Gate Opener Accessories
Amperage: In bright sunlight the panel output should read at least 18 V dc at approximately 300
Application/Use: Designed to be used as a battery charging option for any Mighty Mule Gate Opener
Brand: Mighty Mule
Compatibility: Compatible with all Mighty Mule Gate Openers
CountryofOrigin: Imported
Finish: Metal housing
Material: Metal
Mounting Location: Place the panel facing due south in the path of the sun
Number of Panels: 1
Part Number: FM123
Product Height: 8 in.
Product Length: 15.75 in.
Product Weight: 6.7 lb.
Product Width: 15.75
Recommended Sunlight: 8 hours of direct sunlight for a full charge
Special Feature(s): Ideal for dual & single swing gate opener applications
Type: Solar Panel
Voltage: 18 V
Wattage: 10 W
Manufacturer Part Number FM123
Mighty Mule E-Z Gates 10 W Solar Panel is rated 4.8 out of 5 by 14.
Rated 5 out of 5 by from It is what it is The wiring looks good, mounting hardware included. Puts out the right amount of power, but probably will add a second for the two batteries I'm charging. Solar is the way to go if you have lightning in your area. It doesn't affect your Mighty Mule like it does if it is plugged in to power.
Date published: 2018-07-31
Rated 5 out of 5 by from Must better than electricity So far, so good. I've had it installed for about 2 wks. As this unit had to be installed where the sun shines, we thread the wires through and ran pvc down the post and under the driveway to the battery box. This worked out well.
Date published: 2018-03-16
Rated 5 out of 5 by from Works great. needs a car battery instead of a lawn mower battery to work gate properly
Date published: 2017-12-19
Rated 5 out of 5 by from Seems to be charging the battery, but haven't got to really test it since we haven't gotten the opener operational yet.
Date published: 2017-12-17
  • y_2018, m_8, d_15, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_4, tr_10
  • loc_en_US, sid_360987999, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 5ms
  • REVIEWS, PRODUCT

Does the solar chargers go into a floating mode (drops down to zero volts and amps) when battery is charged or does it continuously trickle charge at some rate? Is it suitable for use with a gel or AGM battery?

Asked by: GPop
Hi, the solar panel provides a constant trickle charge to the battery that is regulated by the gate opener's control board. Depending on which gate opener you have, depends on which type of battery we recommend. If you have a MM260, MM360, MM362 or MM660 we recommend a 12 Volt Automotive or Marine Type Battery that produces a minimum of 250 cold cranking amps (CCA). If you have a MM560 or MM562 we recommend our Mighty Mule 12 Volt 7 amp/hr Battery (Model # FM150).
Answered by: GTOSupport
Date published: 2017-07-05

Will this solar panel work with a LinearPro gate opener?

Asked by: Marcos_1
Marcos_1, Thank you for posting your question. Yes, it will work on a Linear Pro gate opener.
Answered by: GTOSupport
Date published: 2018-07-12

Does this solar panel charge the battery directly or does it have to 'go through the Mighty Mule Gate opener'?

Asked by: Desertdog
Hi, the solar panel charges the battery through the control board to control amount of charge the battery receives. The batteries in our gate openers are trickle charged by either solar panel or AC transformer and the control board makes sure the batteries are not over charged.
Answered by: GTOSupport
Date published: 2018-02-17

What is the maximum distance from the control board that the panel may be installed?

Asked by: lartack
Hi, the furthest distance we recommend wiring a solar panel from the control board is 250 ft.
Answered by: GTOSupport
Date published: 2017-09-09

How long does the battery last before needing to be replaced

Asked by: Erb1711
Hi Erb, the battery is continually trickle charged by the solar panel. Depending on the model of gate opener you purchase it will either include a battery or require a battery. Models: MM560 & MM562 include a 12-volt 7 amp hour battery (Model # FM150) that is rated for a 3 - 5 year life expectancy. Gate opener models MM260, MM360, MM362, MM660 all require a battery, we recommend a 12 Volt Automotive or Marine Type Battery that produces a minimum of 250 cold cranking amps (CCA). Depending on which battery you decide to purchase will depend on life expectancy, please refer to the manufacturer of the battery your purchase for more information.
Answered by: GTOSupport
Date published: 2017-06-20
