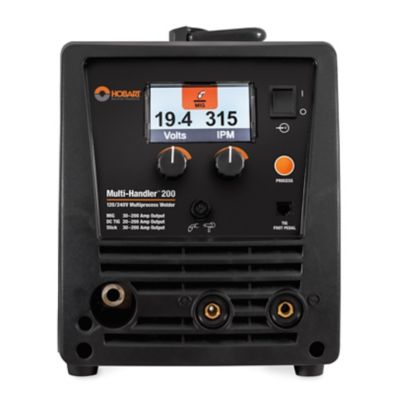

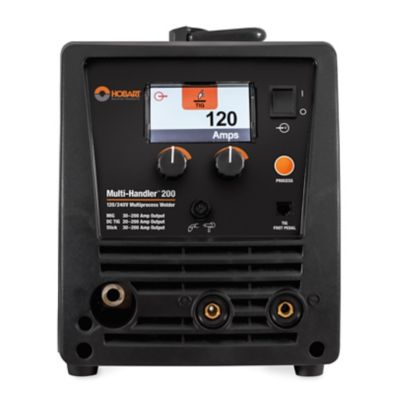

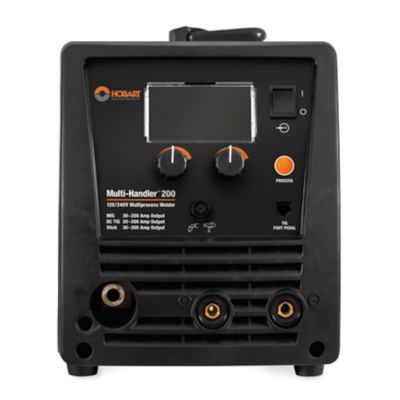

Hobart 120/240V 200A Multi-Handler Multi-Process Welder

Item # 1671335

$1,549.99

$130/mo.^† suggested payments with 12 Months Financing or earn $77 in Rewards⁺ on this purchase.

Add this item to unlock free delivery!

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

Add a protection plan

Powersport plans are not available in CA & MD.

Neighbor’s Club Members earn points with purchases.

Multi-Handler 200 Multiprocess Welder - This Multiprocess welder includes MIG, Flux cored, Stick, and DC TIG processes in one machine. The versatile machine is made to work on a variety of projects. Weld materials up to 3/8 in.. Choose between 120 V or 240 V input power.Hobart 5/3/1 Warranty

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Multiprocess Capabilities Versatility with one machine that provides MIG, DC TIG and stick capabilities.
Easy-to-use Interface - with two knobs and a process button, setting up or changing over this machine is quick.
Dual-Voltage - Allows you to connect to common 120- or 240-volt power receptacles without the use of any tools simply choose the plug that fits the receptacle.
Quick Select Drive Roll - Makes setup quicker by offering three grooves two for different size solid wire and a third for flux-cored wire.
Spool Gun Ready - Spool guns enhance feedability and reduce bird-nesting associated with soft aluminum wires. No additional control box or adapter is required to connect the SpoolRunner 100 spool gun.
Hobart 5/3/1 Warranty - Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches).

Brand	Hobart
Country of Origin	Imported
Clamp Cable Length	10 ft.
Compatible Metal	Stainless Steel, Carbon Steel, Steel, Aluminum
Compatible Wire Types	Aluminum
Features	The versatile machine is made to work on a variety of projects. Weld materials up to 3/8 in.. Choose between 120 V or 240 V input power.
Ground Cord Length	10 ft.
Gun Length	10 ft.
Input Frequency	240 V
Maximum Open Circuit Voltage	240V
Maximum Welding Amperage	200A
Maximum Wire Diameter	0.035 in.
Maximum Wire Feed Speed	60- 650 ipm
Maximum Material Thickness	3/8 in.
Minimum Generator Power Required	8,500 W
Power Cord Length	10 ft.
Product Height	13.4 in.
Product Length	20.8 in.
Product Weight	38.4 lb.
Product Width	10.6 in.
Rated Output at 20Percentage Duty Cycle	23V
Spool Size Capacity	10 lb.
Torch Length	10 ft.
Warranty	3 Year
Welder Input Voltage	120V, 240V
Welding Applications	MIG Welding (GMAW)
Phase	Single Phase
Polarity	DC
Work Cable Length	10 ft.
Manufacturer Part Number	500578

Q&As

1 - 1 of 1 Question

Q: Will this machine run at reduced power if only a 5000w generator is used? Stick or wire.

28 days ago

1 Answer

AI-generated, Human-approved
A: This welder requires a minimum generator power of 8,500 W to operate effectively. Using a 5,000 W generator would fall below the manufacturer's specified minimum requirement for this machine.
28 days ago
