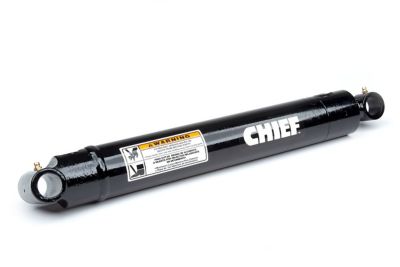

Chief 2.5 in. Bore x 16 in. Stroke WX Welded Hydraulic Cylinder
Item # 130475799
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Chief 2.5 in. Bore x 16 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. An adjustable 360 degree rotating gland allows you to make port alignments as needed. One of the welded hydraulic cylinder's ports is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.
- Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
- Welded hydraulic cylinder with a 3,000 PSI operating range
- Ductile iron piston with nylon, glass-filled wear ring is very durable
- Adjustable 360-degree rotating gland allows you to make port alignments as needed
- Rod is a nitrided steel bar with corrosion and scratch resistance
- Double acting hydraulic cylinder design
- Satin black paint finish
- Individually poly bagged for ease of transport
- 3-year limited warranty
- Offers versatility in mounting options. It features recessed ports, with one located on the rotating gland and two on the fixed base. Adjustments are easily made using a spanner wrench to rotate the gland.
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Tractors |
| Extended Length | 16 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 14,720 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 0.75 in. |
| Port Size | 8 SAE |
| Primary Material | Iron |
| Product Height | 3 in. |
| Product Length | 3 in. |
| Product Weight | 26 lb. |
| Product Width | 4 in. |
| Retracted Length | 24 in. |
| Rod Diameter | 1-3/8 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 16 in. |
| Warranty | 3 Year Limited |
| Manufacturer Part Number | 207408 |
