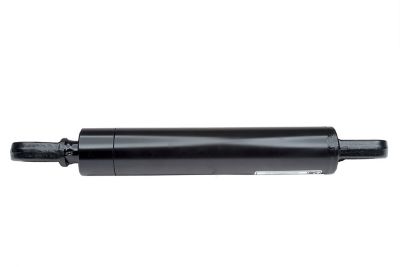

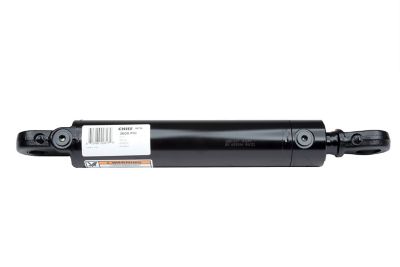

Chief 2.5 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder, 1.375 in. Rod Diameter
Item # 1307834
$349.99
or
or
Neighbor’s Club Members earn points with purchases.
Online Only
Chief 2.5 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder, 1.375 in. Rod Diameter
Item # 1307834
$349.99
or
or
$59/mo.† suggested payments with 6 Months Financing or earn $17 in Rewards+ on this purchase.Apply now
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.
The Chief 2.5 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder is an incredibly durable cylinder. It is sometimes referred to as a lug end cylinder, due to a 1-piece lug mount welded to both the rod and base ends of the hydraulic cylinder. This welded hydraulic cylinder can utilize a spherical ball or steel bushing insert to improve wear life and is most commonly used in heavy-duty construction equipment.
- Welded hydraulic cylinder is intended to be used in double-acting applications
- Piston: ductile iron, thread-on with wear ring
- Gland: keyed joint, ductile iron
- Tube: precision-honed steel
- Rod: induction-hardened, hard chrome-plated
- Rod end mount: cast 1045 steel, welded-on
- Spherical bearing with retaining ring for efficiency
- 1/8 NPT grease zerk
- Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
- Tube seal: Buna O-ring with polytemp hytrel backup
- Rod seal: deep polypak with B-lip design
- Rod wiper: urethane, snap-in
- Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
- All seals are manufactured to U.S. specifications
- Ports: SAE O-ring
- Measures 26 in. retracted and 42 in. extended for a versatile hydraulic cylinder
- Column load: 17,670 lb.
- Pin diameter of 1 in. and rod diameter of 1.375 in.
- 3 year limited warranty
