Chief 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770

5.02 Reviews

Item # 1307489

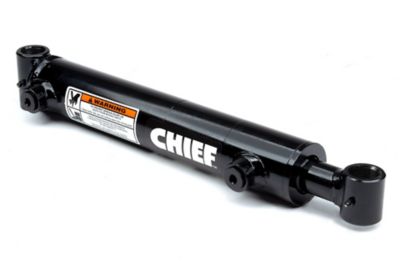

Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
$489.99
or
or
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

  • Online Only

Chief 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770

5.02 Reviews

Item # 1307489

Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
Image showing 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter, 212770
$489.99
or
or
financeCard Logo
$41/mo.†  suggested payments with 12 Months Financing or earn $24 in Rewards+ on this purchase.Apply now

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 4 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks for smooth and consistent performance. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end, making this cylinder ideally suited for construction and agricultural applications as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Intended for double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube made from durable, precision-honed steel
  • Rod is made from ground and polished chromed steel with a minimum 75,000 PSI yield
  • Butt plate: steel
  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals are selected and designed for maximum life
  • Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
  • 3,000 PSI operating range
  • Pin diameter of 0.75 in. and rod diameter of 1.25 in.
  • SAE O-ring ports for efficiency
  • Black paint finish
  • Suitable for a variety of applications and a great welded hydraulic cylinder for farming applications
  • Made in the USA
  • Measures 45 in. retracted and 81 in. extended
  • Column load: 4,260 lb.
  • Includes SAE O-ring port hookups on small bores and NPT on large bores
  • 3 year limited warranty
