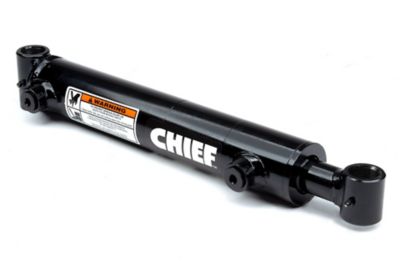

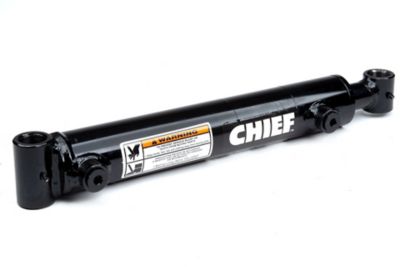

Chief 2 in. Bore x 30 in. Stroke WT Hydraulic Welded Cylinder, 1.25 in. Rod Diameter

5.02 Reviews

Item # 130743399

Image showing 2 in. Bore x 30 in. Stroke WT Hydraulic Welded Cylinder, 1.25 in. Rod Diameter
Image showing 2 in. Bore x 30 in. Stroke WT Hydraulic Welded Cylinder, 1.25 in. Rod Diameter
Image showing 2 in. Bore x 30 in. Stroke WT Hydraulic Welded Cylinder, 1.25 in. Rod Diameter
Image showing 2 in. Bore x 30 in. Stroke WT Hydraulic Welded Cylinder, 1.25 in. Rod Diameter
$249.99

See 2 deals for this item

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 2 in. Bore x 30 in. Stroke WT Hydraulic Welded Cylinder, 1.25 in. Rod Diameter

5.02 Reviews

Item # 130743399

Image showing 2 in. Bore x 30 in. Stroke WT Hydraulic Welded Cylinder, 1.25 in. Rod Diameter
Image showing 2 in. Bore x 30 in. Stroke WT Hydraulic Welded Cylinder, 1.25 in. Rod Diameter
Image showing 2 in. Bore x 30 in. Stroke WT Hydraulic Welded Cylinder, 1.25 in. Rod Diameter
Image showing 2 in. Bore x 30 in. Stroke WT Hydraulic Welded Cylinder, 1.25 in. Rod Diameter
$249.99

See 2 deals for this item

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 2 in. Bore x 30 in. Stroke WT Hydraulic Welded Cylinder is a high-quality welded cylinder designed for heavier loads. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end. Its unique design makes it ideally suited for construction and agricultural applications as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Intended use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel, minimum 75,000 PSI yield
  • Butt plate: steel
  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals: selected and designed for maximum life
  • Welded cylinders is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
  • 3,000 PSI operating range
  • Models with 5 in., 6 in. and 8 in. bores have an externally mounted retainer ring
  • SAE O-ring ports
  • Black paint finish for style
  • Suitable for a variety of applications and is a great farm hydraulic cylinder
  • Made in the USA
  • Screw-in gland is removable from the rod end
  • Welded cylinder has a retracted length of 37 in. and extended length of 67 in.
  • Column load: 5,933 lb.
  • Weight: 29 lb.
  • Rod and base ends are welded cross-tubes with grease zerks
  • Includes SAE O-ring port hookups on small bores and NPT on large bores
