Chief 2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter

5

(2 Reviews)

|

Item # 1307792

$299.99

Chief 2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter

5.02 Reviews

Item # 1307792

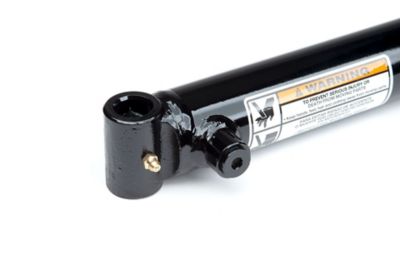

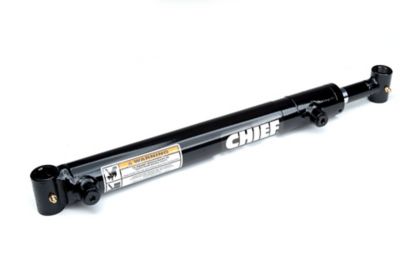

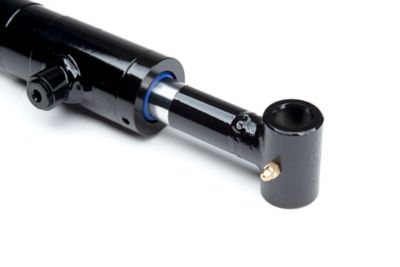

Image showing  2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter
Image showing  2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter
Image showing  2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter
Image showing  2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter
Image showing  2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter
$299.99
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter

5.02 Reviews

Item # 1307792

Image showing  2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter
Image showing  2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter
Image showing  2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter
Image showing  2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter
Image showing  2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter
$299.99

This item is available online only

Delivering to

37027


Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 2.5 in. Bore x 24 in. Stroke LD Loader Welded Cylinder is a small bore welded hydraulic cylinder designed for light-duty loaders. The rod and base ends are welded cross-tubes with grease zerk, giving the hydraulic cylinder a durable and easy to use design. The cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear, increasing the lifespan of the product tremendously.

  • Welded hydraulic cylinder is ideal for construction, agricultural and other applications
  • Intended use: double-acting applications
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: honed steel
  • Rod: hard chrome-plated
  • End mounts: cross-tubes
  • Tube seal: Buna O-ring with polytemp hytrel back-up
  • Rod seal: polyurethane U-cup
  • Rod wiper: polyurethane, snap-in
  • Piston seal: 755 with wear rings, (2 each) wear bearings
  • All seals are manufactured to US specifications
  • Ports: SAE O-rings
  • Measures 37 in. retracted and 61 in. extended
  • Packaging: individually poly bagged
  • Column load: 13,440 lb.
  • Pin diameter of 1.25 in. and rod diameter of 1.5 in.
  • 3 year warranty included on the hydraulic cylinder

Similar Items

  1. Top Rated
  2. Top Rated
  3. Top Rated
  4. Top Rated
  5. Top Rated
  6. Top Rated

Items You May Like

  1. Top Rated
  2. Top Rated
  3. Top Rated
  4. Top Rated
  5. Top Rated

Customers Also Bought

  1. Top Rated
  2. Top Rated
  3. Top Rated
  4. Top Rated

Reviews

Rating Snapshot

Select a row below to filter reviews.
2 reviews with 5 stars.
0 reviews with 4 stars.
0 reviews with 3 stars.
0 reviews with 2 stars.
0 reviews with 1 star.

Overall Rating

5.0
1 out of 1 (100%) reviewers recommend this product

Review this Product

Select to rate the item with 1 star. This action will open submission form.
Select to rate the item with 2 stars. This action will open submission form.
Select to rate the item with 3 stars. This action will open submission form.
Select to rate the item with 4 stars. This action will open submission form.
Select to rate the item with 5 stars. This action will open submission form.
Adding a review will require a valid email for verification

Customer Images and Videos

  • performance
  • price
  • purchase
  • small
  • warranty
1 to 2 of 2 Reviews
1 – 2 of 2 Reviews
Pickens, SC
Review 1

Excellent replacement for my John Deere 40 Loader

3 years ago
Purchased the loader hydraulic cylinders for the bucket of my John Deere 40 Loader. They perform just as well and a fraction of the cost of a new John Deere cylinder. They are actually only slightly more than rebuilding the cylinders. Although the bore is slightly smaller, cannot tell a difference in performance of the bucket. The new Chief cylinders have been used more than the rebuilt ones I had on the tractor (that started leaking) and have no issues so far. Even if they did, they have a 2 year warranty. I already picked out the Chief cylinders to replace my boom cylinders when they start leaking. The boom ones have the same bore as the old.

Yes, I recommend this product.

Originally posted on baileyhydraulics.com

Review 1

Great product

4 years ago
Easy to install , worked as advertised . I will definitely buy again if i need another
