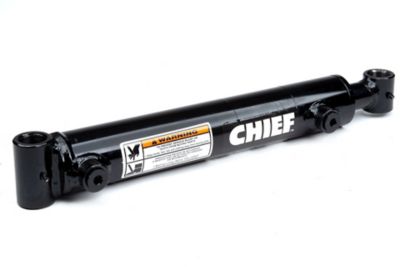

Chief 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter

3.73 Reviews

Item # 130747799

Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
$457.09
or
or
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter

3.73 Reviews

Item # 130747799

Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
Image showing 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
$457.09
or
or
financeCard Logo
$39/mo.†  suggested payments with 12 Months Financing or earn $22 in Rewards+ on this purchase.Apply now

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 3.5 in. Bore x 36 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Welded hydraulic cylinder is intended to be used in double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel, minimum 75,000 PSI yield
  • Butt plate: steel

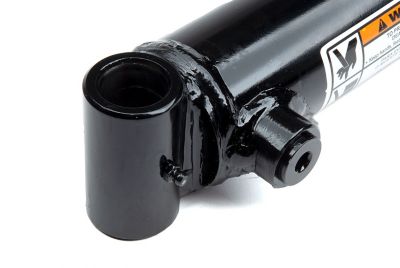

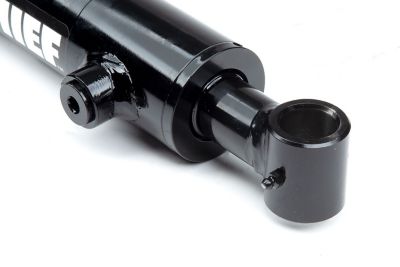

  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals: selected and designed for maximum life
  • 3 year warranty included with hydraulic cylinder
  • Measures 44 in. retracted and 80 in. extended
  • Column load: 27,040 lb.
  • Pin diameter of 1 in. and rod diameter of 2 in.
