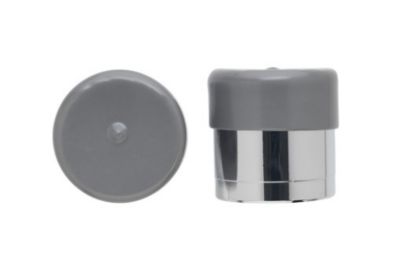

Carry-On Trailer Bearing Protector with Grease Fitting, 1-1/16 in.

SKU: 109140299
Carry-On Trailer Bearing Protector with Grease Fitting, 1-1/16 in.
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 3.6


1105 northwest hwy 270
woodward, OK 73801
(580) 254-2704
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

  • Three standard replacement dust caps with zerts-type fitting to replace most 2,000 lbs. and 3,500 lbs. axle hubs
  • Used to keep a clean environment for bearings and allows you to apply grease to the outer bearings without removing cap

Specification Description
Brand: Carry-On Trailer
Noun: Bearing Protector
Diameter: 1-1/16 in.
Manufacturer Part Number 498
Carry-On Trailer Bearing Protector with Grease Fitting, 1-1/16 in. is rated 3.6 out of 5 by 10.
Rated 3 out of 5 by from VERY HARD TO INSTALL AND NO INSTRUCTIONS I had to replace a hub on my 1987 boat trailer and bought a Carry-On hub from TSC and a pair of bearing protectors. So I had one original hub and a new Carry-On hub. I could not get the protector in my original hub so I figured the hub was probably just too tight, maybe on the tight end of the specifications. I went to the side with the new hub, no luck there. Then I got the file out and put a 0.090 inch , ten degree chamfer on it. Using a 20 ounce hammer (and 2X4) it still wouldn't go. So, I upgraded to a 3 pound hammer and finally got it on. There were no instructions in my package and none on the TSC site. I wish I had read the reviews, the freezing idea was a good one as well as using a BIG hammer. I know about freezing just didn't think about it. On a hot day freezing the Protector will reduce the diameter about 0.001" which is a lot on a 2" diameter. On a cold day putting a heat gun on the hub and getting it up to a hot-to-touch temp (140 F.) would give you another 1/2 thousand inch.
Date published: 2018-08-07
Rated 4 out of 5 by from a little difficult to install the instructions say to use a rubber mallet. that's a joke. my first attempt to install these was a failure- there was no way they would go in even using a big hammer with a piece of 2x4 in between. after thinking about it, I put a little grease on the protector's bevel edge and stuck them in the deep freeze for a couple hours. that did the trick! taking the temp down to zero must have shrunk it down just enough to go in.
Date published: 2017-04-10
Rated 5 out of 5 by from Fit my CarryOn trailer fine. Took a chance after reading the reviews, some folks may have gotten a bad batch. Used a 3 pound (shot filled) rubber hammer, lined them up and they tapped right in. Now, they are good and tight, but they are supposed to fit like that.
Date published: 2017-03-23
Rated 2 out of 5 by from Machined too large I bought these after a physical comparison with the dust cap, and they appeared to be the correct item. I have had numerous trailers over the years, and have installed this type of item on each of them without problems, so I know what I'm doing. These absolutely defy installation. I used a 2x4 and heavy hammer to avoid damage to the item, and it will not even begin to drive home. The parts are going back to Tractor Supply tomorrow for a refund.
Date published: 2015-12-31
  • y_2020, m_6, d_2, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_3, tr_7
  • loc_en_US, sid_109140299, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms


Asked by: RJG06

will this fit my carry on trailer 4x6

Asked by: treeb
Yes, a bearing protector can be used on the 4X6G trailer. The part number will be 497.
Answered by: COT, Customer Care Agent
Date published: 2017-02-20

is this the same size as a 1.781

Asked by: nosey580
part# 498 is a 1.98" bearing protector cap
Answered by: COT, Customer Care Agent
Date published: 2018-07-18

what trailer do these fit

Asked by: JackS1
These will fit an axle which has a 1 1/16" spindle for example they will fit a 5X8SP trailer.
Answered by: COT, Customer Care Agent
Date published: 2016-12-28

Do these fit the Carry-On 5 1/2 ft x 10 ft trailer? Tractor Supply SKU 1097684.

Asked by: Marc7
Carry On Trailer part #498 1.98" Bearing Protector with Cap will fit the 5.5x10GWPR trailer.
Answered by: COT, Customer Care Agent
Date published: 2020-03-24

This says it will grease the "outer bearing". What about greasing the "inner bearing"?

Asked by: CRRob
If the axle is not an ezlube axle you will have to manually pack/grease the back bearing.
Answered by: COT, Customer Care Agent
Date published: 2019-03-30
