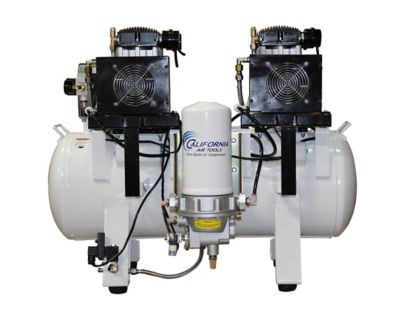

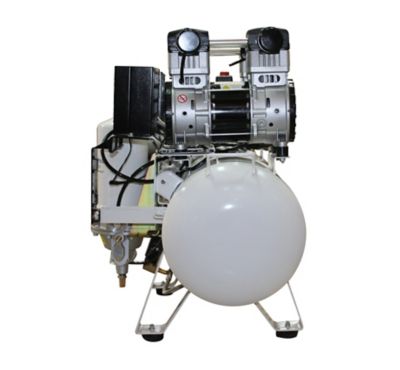

California Air Tools 4 HP 20 gal. Ultra Quiet Ultra Dry Oil-Free Air Compressor with 98% Air Dryer
Item # 197554399
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 197554399
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
The 20040DCADC Ultra Quiet, Ultra Dry Oil-Free Air Compressor with Air Drying System is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 75 decibels. The Powerful (2) 2.0 HP motors operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500 hours or less. The Oil-Free pump allows for use in a variety of temperature and eliminates oil from being in the air. The large 20 gal. Steel Air Tank is just the right size for shop or garage. The Air Dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery. PDP performance range (-20' F. to -51' F.) Air Quality: ISO 8573 - Class 2.3.1 The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The easy to replace "Spin-On" Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air. This cartridge dryer has a life of 2-years before replacement. The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. Designed for the person looking for Power, Dry Air, Air Flow and Less Service with at Least 30% Less Noise!
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Only 75 Decibels
- Oil-Free Pump (Class 1) Cleaner air for better tool operation and less maintenance costs.
- 5.0 Micron (Class 2) Air Filter Regulator
- Two pressure control gauges
- One - 1/4 in. Industrial female quick connector. Plug Type: Nema 6-15P
- Condor Pressure Switch
- Thermal Overload Protector
- 125 PSI Maximum Pressure
- 220 Volts / 60 Hertz / Single Phase - (No 208 Volts)
- Low Amp Draw - 14 Amps
- 20 Gal. Steel Air Tank. Time to fill tank from empty to full - 150 Seconds
- Recovery time from 95 PSI to 125 PSI - 40 Seconds
- Duty Cycle - 70/30
- Maximum continuous running 30-60 min. (Depending PSI & CFM)
- Less heat which dissipates more efficiently
- L (37.1 in.) x W/D (22 in.) x H (30.5 in.) 170 lb.
- Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant
- Easy to remove (spin off) and replace every 2 years
- Aftercooler (condenser)
- PDP performance range (-20' F. to -51' F.) Air Quality: ISO 8573 - Class 2.3.1
- Comes complete (4) Air Filters
- 1 Year Limited Warranty
| Brand | California Air Tools |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 4 CFM |
| Air Outlet Size | 1/4 in. |
| Amperage | 14A |
| Compressor Horsepower | 2 HP |
| Lubrication Type | Oil Less |
| Compressor Maximum PSI | 125 PSI |
| Compressor Tank Capacity | 20 gal |
| Compressor Voltage | 220V |
| Connection Type | Quick Connect |
| Decibel Rating | 75 dB |
| Drain System | EZ-1 Automatic Drain Valve |
| Drive Type | Motor Pump |
| Features | Ultra Quiet only 75 Decibels |
| Maximum RPM | 1,680 RPM |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | White |
| Primary Material | Steel |
| Product Height | 30.5 in. |
| Product Length | 37.1 in. |
| Product Weight | 170 lb. |
| Product Width | 22 in. |
| Pump Life | 3,000 hr. |
| Pump Material | Steel |
| Stage Type | Single-Stage |
| Tank Fill Time | 150 sec. |
| Tank Style | Vertical |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | CAT-20040DCADC |
