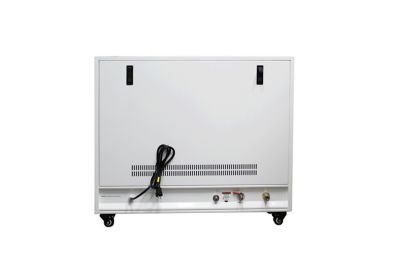

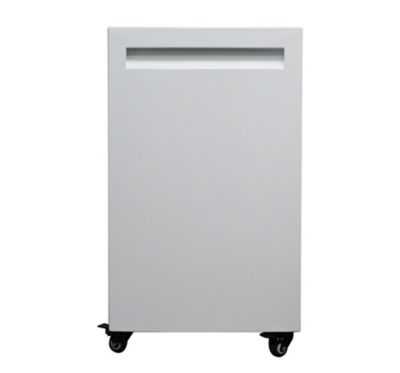

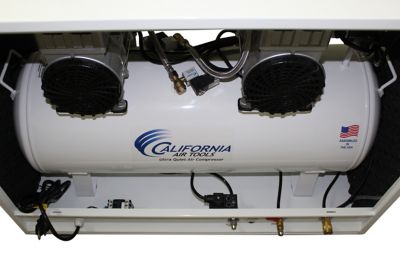

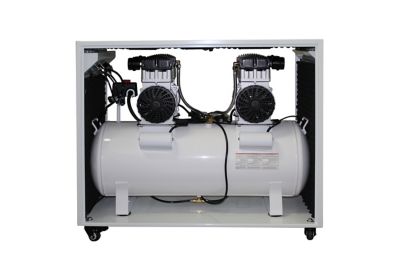

The 20040SPCAD Ultra Quiet & Oil-Free Air Compressor in Soundproof Cabinet is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 65 decibels of sound. The Powerful (2) 2.0 HP (SP-9421-22060) motor operates at only 1680 RPM creating less noise and wear and have been designed to increase duty cycle while allowing for longer continuous run times. The Air Compressor has an Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil) The Easy Start Valve feature allows for a easier start up using less starting amps and releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. The soundproof cabinet has two latching doors that allows for easy access to the air compressor and components. The three cabinet exhaust fans are used to remove air from the cabinet to reduce heat and provide a cooler working condition for the air compressor. The 4 caster wheels makes moving the air compressor from location to location very easy. EZ-1-2321 Auto Drain Valve Factory Installed The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. (Factory Pre-Set) Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!
Specification | Description |
---|---|
Brand | California Air Tools |
Country of Origin | Made in USA |
Air Delivery SCFM At 40 PSI | 12.8 CFM |
Air Delivery SCFM At 90 PSI | 10.6 CFM |
Airflow Volume | 12.80 CFM |
Air Outlet Size | 1/4 in. |
Compressor Horsepower | 2 HP |
Compressor Maximum PSI | 125 PSI |
Compressor Tank Capacity | 20 gal |
Compressor Type | Oil less |
Compressor Voltage | 220V |
Connection Type | Quick Connect |
Decibel Rating | 65 dB |
Drain System | EZ-1 Automatic Drain Valve |
Drive Type | SP-9421-22060 |
Features | Ultra Quiet only 65 Decibels |
Maximum RPM | 1,680 RPM |
Phase | Single |
Number Of Power Speeds | Single |
Number Of Wheels | 4 |
Power Type | Electric |
Primary Color | White |
Primary Material | Steel |
Product Height | 33 in. |
Product Length | 19 in. |
Product Weight | 230 lb. |
Product Width | 38 in. |
Pump Life | 3,000 hr. |
Pump Material | Steel |
Stage Type | Single-Stage |
Tank Fill Time | 150 sec. |
Tank Orientation | Horizontal |
Warranty | 1 Year Limited |
Manufacturer Part Number | CAT-20040SPCAD |
