AMA USA Category 1 Hydraulic Top Link, 14-3/16 in. to 18-1/2 in.
AMA USA Category 1 Hydraulic Top Link, 14-3/16 in. to 18-1/2 in.
Item # 147605999
$299.99
or
or
Neighbor’s Club Members earn points with purchases.
$299.99
or
or
$50/mo.† suggested payments with 6 Months Financing or earn $14 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

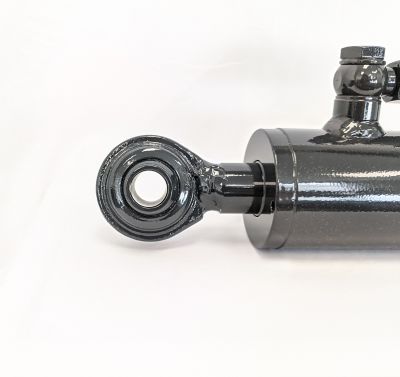

Upgrade from a mechanical top link to the AMA USA Category 1 Hydraulic Top Link and get more done! These tractor top links can be adjusted from the operator's seat, so there's no more getting on and off your tractor to make adjustments. The double-acting cylinder on the hydraulic top link is made in Italy and is pressure tested to ensure it'll work right out of the box.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 3/4 in. pin holes on both ends (the piston can be rotated as needed)
- Ball width measures 1-3/4 in. (both ends of the hydraulic top link)
- Offers a minimum to maximum length of 14-3/16 in. to 18-1/2 in.
- Stroke measures 4-5/16 in.; cylinder bore measures 2-3/8 in.; Category 1 top link rod diameter measures 1-3/16 in.
- 1-year manufacturer's warranty guarantees against mechanical defects
- Honed and finished steel tube, chrome-plated and polished rod and top-quality seals
- Pushing/lifting capacity of 9,600 lb./7,200 lb. (estimates based on a working pressure of 2,175 PSI)
- Double-piloted check valve and double-acting cylinder
- Ports 3/8 in. BSP (includes BSP male to NPT male adapters)
- Hydraulic top link is pressure tested for durability
| Brand | AMA USA |
|---|---|
| Country of Origin | Imported |
| Compatibility | AMA USA |
| Hitch Type | Category 1 |
| Package Quantity | 1 |
| Pin Hole Diameter | 3/4 in. |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 16 in. |
| Product Weight | 10 lb. |
| Product Width | 3 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 37299 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Can I use this on Kubota B 2100 tractor. How I can I connect it.
3 years ago1 Answer
- A: Yes, you can. When utilizing a transfer switch of any kind, you do want to make sure it is compatible with the unit (usually referring to setups for inverters/non-inverters), but most are setup with that in mind anyways.3 years agoHelpful?
Q: Can I buy just the 3/8 in. BSP to 3/8 in. NPT adapters?
5 years ago1 Answer
- A: Yes, the 3/8” BSP to NPT adapters for the AMA top links are available as AMA p/n E000024057. Copper washer, 3/8” ID, are needed with these adapters, they are AMA p/n 01906. These can be special ordered through your local Tractor Supply retail location.5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Can I use this on Kubota B 2100 tractor. How I can I connect it.
3 years ago1 Answer
- A: Yes, you can. When utilizing a transfer switch of any kind, you do want to make sure it is compatible with the unit (usually referring to setups for inverters/non-inverters), but most are setup with that in mind anyways.3 years agoHelpful?
Q: Can I buy just the 3/8 in. BSP to 3/8 in. NPT adapters?
5 years ago1 Answer
- A: Yes, the 3/8” BSP to NPT adapters for the AMA top links are available as AMA p/n E000024057. Copper washer, 3/8” ID, are needed with these adapters, they are AMA p/n 01906. These can be special ordered through your local Tractor Supply retail location.5 years agoHelpful?
