AMA USA Hydraulic Hose Kit With Ball Type Couplers

SKU: 134546299
AMA USA Hydraulic Hose Kit With Ball Type Couplers
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.9
4.9
 (9)

Quantity

Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

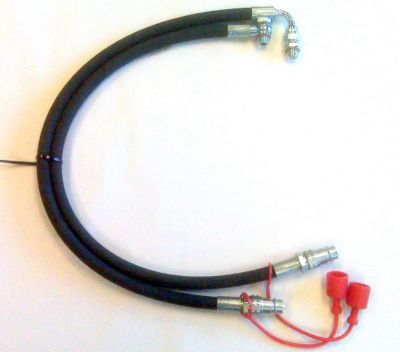

This hydraulic hose kit works with all AMA USA top links. It consists of two SAE 100 3/8 in. 2RAT hoses; each is 3 ft. long with a working pressure of 4800 PSI. One hose has a 3/8 in. 90 degree fitting on the end and the other has a 3/8 in. banjo bolt; this design allows for the hoses to nest with each other, eliminating interference. The other ends have 1/2 in. ball type quick couplers and 1/2 in. red dust caps.

  • Hoses are 3 ft. long
  • 3/8 in. BSP 90 degree fitting on one end
  • 3/8 in. BSP banjo bolt on one end

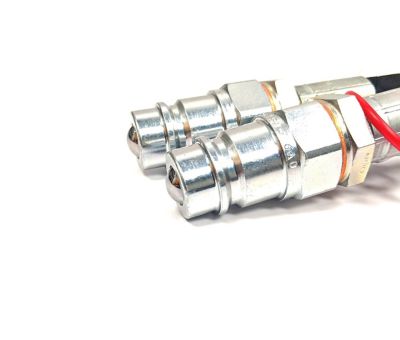

  • 1/2 in. valve type quick couplers on other ends
  • Dust caps included
Will only work with TSC SKUs 134545899, 134545999, & 134546099

Specification Description
CountryofOrigin: Imported
Brand: AMA USA
Minimum Temperature: N/A
Type: Hose kit for hydraulic top link
Product Height: 1.25 ft.
Compatibility: AMA USA
Product Width: 1.25 ft.
Part Number: 67852BT
Maximum Temperature: N/A
Warranty: 1 Year
End 2 Diameter: 1 in.
Material: Rubber
End 1 Diameter: 1.25 in.
Product Length: 38 in.
Product Weight: 3 lb.
Manufacturer Part Number 67852BT
AMA USA Hydraulic Hose Kit With Ball Type Couplers is rated 4.9 out of 5 by 9.
Rated 5 out of 5 by from Hydraulic hook up Went right on to the cylinder and hooked up right to pioneer hydraulic fittings
Date published: 2020-05-21
Rated 5 out of 5 by from Well Designed. Works perfectly with the AMA hydraulic top link. they nest with each other.
Date published: 2020-05-14
Rated 5 out of 5 by from Great product Purchased hose kit along with AMA hydraulic top link. The hoses are well made, sealed perfectly and bonus points for the nested design which keeps the connections looking neat.
Date published: 2020-05-01

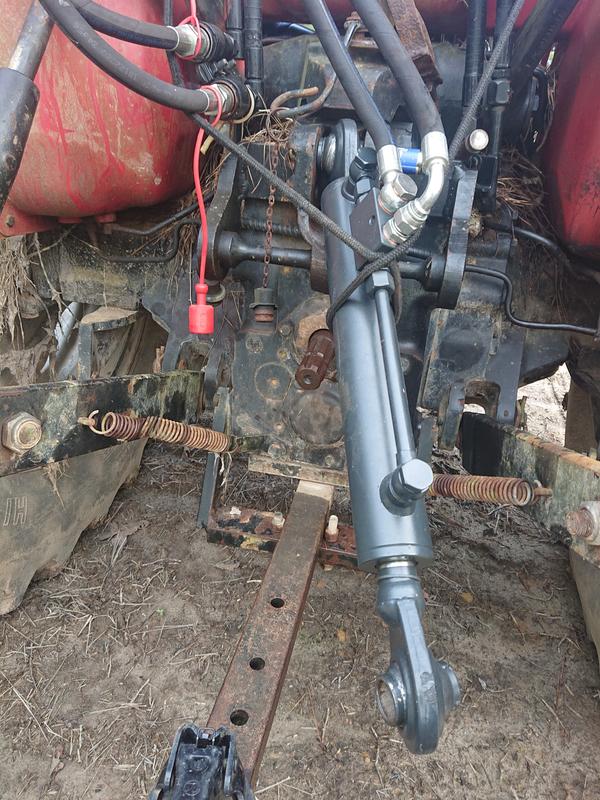

Rated 5 out of 5 by from Lines for hydraulic top link Perfect for hydraulic top link connections. Works with AMA top link
Date published: 2019-05-30
  • y_2020, m_5, d_25, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_3, tr_6
  • loc_en_US, sid_134546299, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 3ms
  • REVIEWS, PRODUCT

CAN ONE USE EITHER THE BALL TYPE OR THE VALVE TYPE OR IS IT DEPENDENT ON THE FEMALE COUPLER ON THE TRACTOR? IF SO WHAT DO I NEED TO LOOK FOR?

Asked by: DONQ
You need to select a hose kit based on the type of female couplers on your tractor. If the female coupler has what looks like a small pin sticking out of the back, then you would need the valve type couplers. If it is recessed in the back, then you would need the ball type couplers.
Answered by: NRoberts
Date published: 2019-07-20
