AMA USA Category 1 Hydraulic Top Link, 18-1/8 in. to 26-3/8 in.
$219.99
AMA USA Category 1 Hydraulic Top Link, 18-1/8 in. to 26-3/8 in.
AMA USA Category 1 Hydraulic Top Link, 18-1/8 in. to 26-3/8 in.
Item # 134545999
$219.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$219.99
or
or
$37/mo.† suggested payments with 6 Months Financing or earn $10 in Rewards+ on this purchase.
This item is available online only
Out of stock delivering to
37027
Get it by Tue, Jul 28 if ordered within the next 18 hours and 44 minutes
Oversize Items Shipped To Store may incur freight charge.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Upgrade from a mechanical top link to the AMA USA Category 1 Hydraulic Top Link and get more done! This hydraulic tractor top link can be adjusted from the operator's seat, so there's no more getting on and off your tractor to make adjustments. The tractor top link's double-acting cylinder is made in Italy and is pressure tested to ensure it'll work right out of the box.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

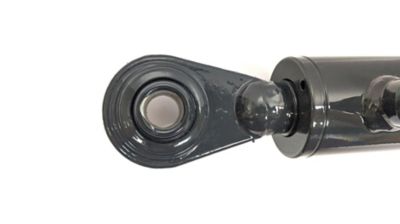

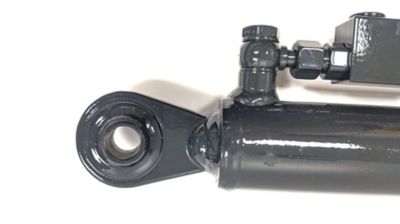

- 3/4 in. pin holes on both ends (the piston can be rotated as needed)
- Hydraulic top link ball width measures 1-3/4 in. (both ends)
- Offers a minimum to maximum length of 18-1/8 to 26-3/8 in.
- Stroke measures 8-1/4 in.; cylinder bore measures 2 in.; Cat 1 top link rod diameter measures 1-3/16 in.
- 1 year manufacturer's warranty guarantees against mechanical defects
- Honed and finished steel tube, chrome-plated and polished rod and top-quality seals
- Pushing/lifting capacity of 6,700 lb. / 4,300 lb. (estimates based on a working pressure of 2,175 PSI)

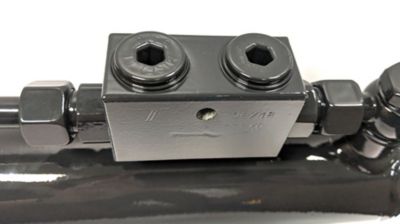

- Double-piloted check valve and double-acting cylinder
- Ports 3/8 in. BSP (Includes BSP male to NPT male adapters)
- Pressure tested hydraulic top link for durability
| Brand | AMA USA |
|---|---|
| Country of Origin | Imported |
| Compatibility | AMA USA |
| Hitch Type | Category 1 |
| Package Quantity | 1 |
| Pin Hole Diameter | 3/4 in. |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 5 in. |
| Product Length | 21 in. |
| Product Weight | 17 lb. |
| Product Width | 2 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 06003 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 19 Questions
Newest questions
Q: Will my New Holland hydraulic hoses connect to this top link?
4 months ago1 Answer
- A: Hi Cindy! Without knowing the size of the hoses, we cannot advise if they will connect to this top link.4 months agoHelpful?
Q: What do I need to control the top link? Some kind of valve I’m assuming?
2 years ago1 Answer
- A: For assistance please contact the product experts at AMA USA, Inc. directly at 317-329-65902 years agoHelpful?
Q: What specifically do i need for a Top link for a 2016 John Deere 3046 R, - Cabbed tractor if tgat makes a difference?
2 years ago1 Answer
- A: For assistance in locating the best Top link for your tractor, please contact the product experts at AMA USA, Inc. directly at 317-329-65902 years agoHelpful?
Q: will this cylinder work on branson 2505h tractor
3 years ago1 Answer
- A: Please contact AMA USA, Inc. directly at 317-329-6590.3 years agoHelpful?
Q: What country is this cylinder made.
3 years ago1 Answer
- A: Please contact AMA USA, Inc. directly at 317-329-6590.3 years agoHelpful?
Q: Will this fit a Branson 3725 tractor and what valve operates it? Is it an additional valve beyond the 3 point lift?
4 years ago1 Answer
- A: Please contact AMA USA, Inc. directly at 317-329-6590.4 years agoHelpful?
Q: Will this fit a John Deere 4300 ?
4 years ago1 Answer
- A: Compatibility: AMA USA4 years agoHelpful?
Q: Wil this this fit kubota l4200
4 years ago1 Answer
- A: Please contact AMA USA, Inc. directly at 317-329-6590.4 years agoHelpful?
Q: Is the category 1 top link correct for my kioti ck4010 ?
4 years ago1 Answer
- A: This is a category 1 cylinder that has ¾” pin holes on both ends and measures 18 1/8” when fully retracted and 26 3/8” fully extended (pin center to pin center). If those are similar to the specs of your existing mechanical top link, then this should be a suitable replacement.4 years agoHelpful?
Q: Will this work for a kioti ck2610?
4 years ago1 Answer
- A: Ball Socket Size 3/4 in. hole, 1-3/4 in. wide Compatibility AMA USA4 years agoHelpful?
1 - 10 of 19 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 19 Questions
Newest questions
Q: Will my New Holland hydraulic hoses connect to this top link?
4 months ago1 Answer
- A: Hi Cindy! Without knowing the size of the hoses, we cannot advise if they will connect to this top link.4 months agoHelpful?
Q: What do I need to control the top link? Some kind of valve I’m assuming?
2 years ago1 Answer
- A: For assistance please contact the product experts at AMA USA, Inc. directly at 317-329-65902 years agoHelpful?
Q: What specifically do i need for a Top link for a 2016 John Deere 3046 R, - Cabbed tractor if tgat makes a difference?
2 years ago1 Answer
- A: For assistance in locating the best Top link for your tractor, please contact the product experts at AMA USA, Inc. directly at 317-329-65902 years agoHelpful?
Q: will this cylinder work on branson 2505h tractor
3 years ago1 Answer
- A: Please contact AMA USA, Inc. directly at 317-329-6590.3 years agoHelpful?
Q: What country is this cylinder made.
3 years ago1 Answer
- A: Please contact AMA USA, Inc. directly at 317-329-6590.3 years agoHelpful?
Q: Will this fit a Branson 3725 tractor and what valve operates it? Is it an additional valve beyond the 3 point lift?
4 years ago1 Answer
- A: Please contact AMA USA, Inc. directly at 317-329-6590.4 years agoHelpful?
Q: Will this fit a John Deere 4300 ?
4 years ago1 Answer
- A: Compatibility: AMA USA4 years agoHelpful?
Q: Wil this this fit kubota l4200
4 years ago1 Answer
- A: Please contact AMA USA, Inc. directly at 317-329-6590.4 years agoHelpful?
Q: Is the category 1 top link correct for my kioti ck4010 ?
4 years ago1 Answer
- A: This is a category 1 cylinder that has ¾” pin holes on both ends and measures 18 1/8” when fully retracted and 26 3/8” fully extended (pin center to pin center). If those are similar to the specs of your existing mechanical top link, then this should be a suitable replacement.4 years agoHelpful?
Q: Will this work for a kioti ck2610?
4 years ago1 Answer
- A: Ball Socket Size 3/4 in. hole, 1-3/4 in. wide Compatibility AMA USA4 years agoHelpful?
1 - 10 of 19 Questions
Similar Items
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
-
-
Top Rated
-
-
Top Rated
Items You May Like
-
-
Top Rated
-
-
-
-
-
-
Top Rated
-
-
-
-
Reviews
Summary of Reviews
The hydraulic top link is a well-made accessory that allows for convenient adjustment of 3-point attachment angles from the operator's seat. Most users report it significantly improves the performance of implements like box blades and flail mowers. However, some customers note the need for minor mod...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Most Helpful Favorable Review
5 out of 5 stars.
Top link happiness!
5 years ago
I bought this ram for my Kioti tractor. It has made the function of the rear three point hitch work amazing! I have the quick attachment installed but still used to get off and adjust the manual top link in order to connect. Now it’s so easy. This is a must have for your tractor. I wish I would have bought it a long time ago!
4 people found this helpful
Show Reviews:
Most Helpful Critical Review
2 out of 5 stars.
Top Link
5 years ago
I purchased this on 1/27 order Number#1070100230, Link came packed in an oversize slightly damaged box with other metal items. Link noted to have a large chip 2x2.5mm chip of metal missing. Went ahead with the install, so far no hydraulic leaks, however, I question the overall integrity. Still debating on whether returning is worth the hassle they may give me considering this a special order item.
12 people found this helpful
Show Reviews:

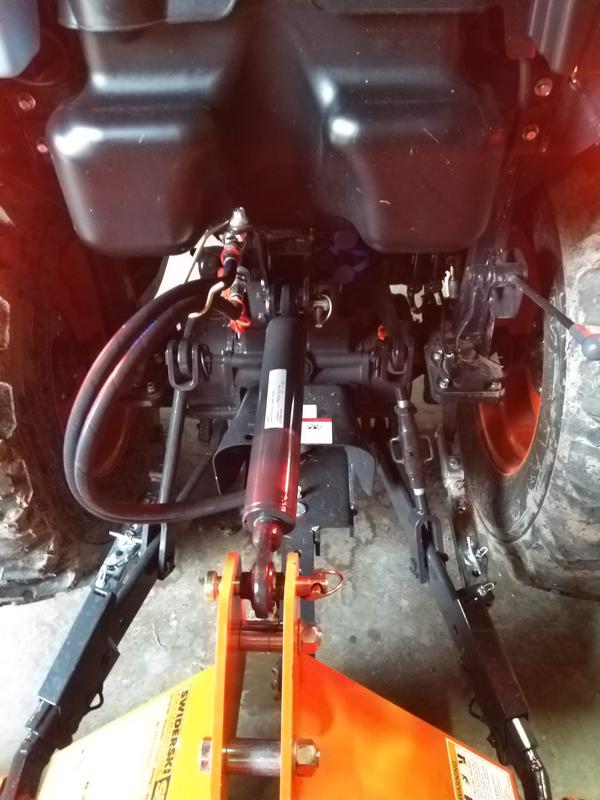

Customer Images and Videos
- installation
- purchase
- quality
- satisfaction
- price
- adjustability
- large
- controlling
1 to 4 of 122 Reviews .
1 – 4 of 122 Reviews
Most Recent
Mentone alabama
Review 1
5 out of 5 stars.
Well built cylinder
4 months ago
No Leaks!! This was an easy install and a good fit.
SweepstakesYes
Yes, I recommend this product.
North Central Iowa
Review 1
5 out of 5 stars.
Cat 1 Hydraulic top link is great!
9 months ago
Cat 1 Hydraulic top link was a perfect fit for length and pin sizes. I didn't have a top link, so I set the quick hitch perpendicular to the ground and measured the pin-to-pin distance for the right hyd. cylinder length. The included British to American hose adapters REALLY helped the installation. I knew almost nothing about this tractor's hydraulics, because I use it as a mower. I had to get parts from the tractor brand store, the farm store, and the home center to install the hydraulic lines from the tractor to this cylinder. It works great with my new box blade - I would NOT want to keep adjusting a manual top link while using it. Shipping was perfect and prompt.
SweepstakesYes
Review 1
5 out of 5 stars.
Hobby Farmer
9 months ago
Works fine. It is a bit tricky to put on the correct way. It is very easy to bend the copper tube that connects both ends of the cylinder on my tractor.
Yes, I recommend this product.
PA.
Review 1
5 out of 5 stars.
Good value
a year ago
I've been using it for only a couple weeks so I can't speak to the durability yet. I had to grind down the eyelets to fit my Kubota tractor because it was bit too wide, no big deal, also do yourself a huge favor and buy the hose kits they sell, it will save you some aggravation.
No, I do not recommend this product.
