AMA USA Category 2 Hydraulic Top Link, 28-5/16 in. to 44-1/8 in.

5.01 Reviews

Item # 147627099

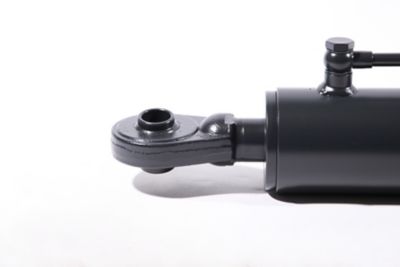

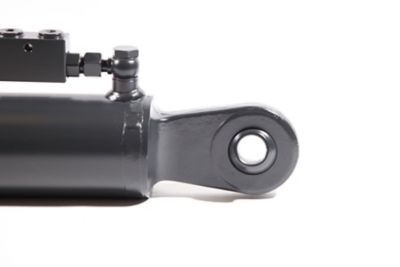

Image showing Category 2 Hydraulic Top Link, 28-5/16 in. to 44-1/8 in.

$429^.99

Neighbor’s Club Members earn points with purchases.

Shop all AMA USA

AMA USA Category 2 Hydraulic Top Link, 28-5/16 in. to 44-1/8 in.

5.01 Reviews

Item # 147627099

$429^.99

$36/mo.^† suggested payments with 12 Months Financing or earn $21 in Rewards⁺ on this purchase.Apply now

This item is available online only

Delivering to

37027

Neighbor’s Club Members earn points with purchases.

Upgrade from a mechanical top link to the AMA USA Category 2 Hydraulic Top Link and get more done! These tractor top links can be adjusted from the operator's seat, so there's no more getting on and off your tractor to make adjustments. The double-acting cylinder on the hydraulic top link is made in Italy and is pressure tested to ensure it'll work right out of the box.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

1 in. pin holes on both ends of the hydraulic top link (the piston can be rotated as needed)
Ball width measures 2 in. (both ends)
Offers a minimum to maximum length of 28-5/16 in. to 44-1/8 in.
Stroke measures 15-13/16 in.; cylinder bore measures 3 1/8 in.; Category 2 top link rod diameter measures 1-9/16 in.
1-year manufacturer's warranty guarantees against mechanical defects
Honed and finished steel tube, chrome-plated and polished rod and top-quality seals
Pushing/lifting capacity of 17,100 lb./12,900 lb. (estimates based on a working pressure of 2,175 PSI)
Double-piloted check valve and double-acting cylinder
Ports 3/8 in. BSP (includes BSP male to NPT male adapters)
Hydraulic top link is pressure tested for durability
