AMA USA Category 1 Hydraulic Top Link, 20-7/8 in. to 31-7/8 in.
$279.99
AMA USA Category 1 Hydraulic Top Link, 20-7/8 in. to 31-7/8 in.
AMA USA Category 1 Hydraulic Top Link, 20-7/8 in. to 31-7/8 in.
Item # 134545899
$279.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$279.99
or
or
$47/mo.† suggested payments with 6 Months Financing or earn $13 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Upgrade from a mechanical top link to the AMA USA Category 1 Hydraulic Top Link and get more done! These tractor top links can be adjusted from the operator's seat, so there's no more getting on and off your tractor to make adjustments. The double-acting cylinder on the hydraulic top link is made in Italy and is pressure tested to ensure it'll work right out of the box.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 3/4 in. pin holes on both ends (the piston can be rotated as needed)

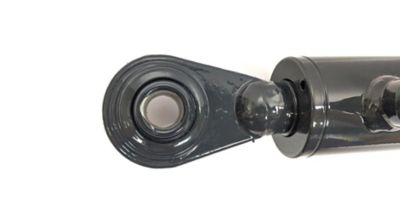

- Ball width measures 1-3/4 in. (both ends of the hydraulic top link)
- Offers a minimum to maximum length of 20-7/8 to 31-7/8 in.
- Stroke measures 11 in.; cylinder bore measures 2 in.; Category 1 top link rod diameter measures 1-3/16 in.
- 1-year manufacturer's warranty guarantees against mechanical defects
- Honed and finished steel tube, chrome-plated and polished rod and top-quality seals
- Pushing/lifting capacity of 6,700 lb./4,300 lb. (estimates based on a working pressure of 2,175 PSI)

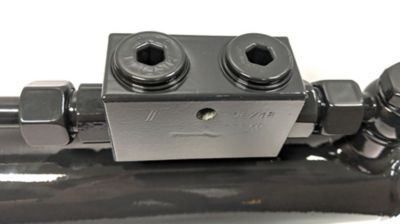

- Double-piloted check valve and double-acting cylinder
- Ports; 3/8 in. BSP (includes BSP male to NPT male adapters)
- Hydraulic top link is pressure tested for durability
- Available replacement parts include 04202 check valve, 05508 tubing kit and 05165 check valve and tubing kit
- Original equipment manufacturer names, part numbers, tradenames, trademarks, drawings, colors and descriptive information are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer
| Brand | AMA USA |
|---|---|
| Country of Origin | Imported |
| Compatibility | AMA USA |
| Hitch Type | Category 1 |
| Package Quantity | 1 |
| Pin Hole Diameter | 3/4 in. |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 5 in. |
| Product Length | 24 in. |
| Product Weight | 19 lb. |
| Product Width | 2 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 06004 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 12 Questions
Newest questions
Q: Does AMA SKU: 134545899 come with hose kit AMA hose kit part number 67852 OR 67852BT, How long would it take to receive SKU: 134545899 if ordered today 12/11/2023
2 years ago1 Answer
- A: No, they are sold separately. 67852 is SKU # 1345461 and 67852BT is SKU # 1345462. Shipping can take up to 14 business days.2 years agoHelpful?
Q: If the hoses are removed from the tractor. Will the checkvalve hold the cylinder in position
4 years ago1 Answer
- A: Unfortunately you will need to direct your inquiry to a professional mechanic.4 years agoHelpful?
Q: Is this the correct length for a Ford 3910?
Anonymous4 years ago1 Answer
- A: To better assist you with your inquiry, please contact 317.329.6590.4 years agoHelpful?
Q: I don't see anywhere that this mentions hoses are included, but according to one answer they do....are these the 90 degree fitting hoses at the cylinder?
4 years ago1 Answer
- A: For additional product support, please contact 317.329.6590.4 years agoHelpful?
Q: Does this come supplied with the hyd connection hoses?
5 years ago1 Answer
- A: Yes.5 years agoHelpful?
Q: Can you take the check valve off and use the cylinder without it? If so what are the threads on the cylinder?
5 years ago1 Answer
- A: Yes, you can use this cylinder without the check valve; however, doing so will void the warranty. The threads on the cylinder are the same as in the check valve: 3/8" BSPP.5 years agoHelpful?
Q: The current top link that I have both ends will move so that I can position it from the tractor to the implement. So my question is will one of the pin eyelets spin so that they are both in the same position and not 90 degrees out as the picture shows?
5 years ago1 Answer
- A: Yes, the eyelet end attached to the piston rod (implement side) will rotate to any position needed, the photo just shows a possible set-up.5 years agoHelpful?
Q: Do you have a replacement part umber for the check valve assembly? I have bent the rods on the check valve and need to replace the assembly.
5 years ago1 Answer
- A: Yes. You may obtain them through visiting your local Tractor Supply retail location. Per the manufacturer, you have two options for this issue as follows. OPTION 1 The customer can replace just the bent rods (check valve still operational) using the following AMA part numbers: 1 – 1 pc AMA p/n 05508 (hydraulic top link replacement tube kit for check valve) 2 – 2 pcs AMA p/n 02441 (compressions rings for hydraulic top link check valve) 3 – 2 pcs AMA p/n 02424 (nut for compression rings) OPTION 2 If the customer needs to also replace the check valve along with the tubing with one kit: 1 – 1 pcs AMA p/n 05165 (see picture and diagram) Please make sure to have these part numbers when visiting our store so that we may promptly obtain them on your behalf.5 years agoHelpful?
Q: Does it have pressure relief so you can manually adjust when hooking up to implement.
6 years ago1 Answer
- A: No, this cylinder does not have a pressure relief valve, but it is controlled by the remotes on the back of the tractor.6 years agoHelpful?
Q: Is the Working Length Range specifying the overall length or the center to center of the pins?
7 years ago1 Answer
- A: Yes, the working length range is the measurement between pin hole centers when the cylinder is fully closed vs fully extended. SO, this particular cylinder is 20 7/8" pin center to pin center when fully retracted and 31 7/8" pin center to pin center when fully extended, meaning the cylinder has a stroke of 11".7 years agoHelpful?
1 - 10 of 12 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 12 Questions
Newest questions
Q: Does AMA SKU: 134545899 come with hose kit AMA hose kit part number 67852 OR 67852BT, How long would it take to receive SKU: 134545899 if ordered today 12/11/2023
2 years ago1 Answer
- A: No, they are sold separately. 67852 is SKU # 1345461 and 67852BT is SKU # 1345462. Shipping can take up to 14 business days.2 years agoHelpful?
Q: If the hoses are removed from the tractor. Will the checkvalve hold the cylinder in position
4 years ago1 Answer
- A: Unfortunately you will need to direct your inquiry to a professional mechanic.4 years agoHelpful?
Q: Is this the correct length for a Ford 3910?
Anonymous4 years ago1 Answer
- A: To better assist you with your inquiry, please contact 317.329.6590.4 years agoHelpful?
Q: I don't see anywhere that this mentions hoses are included, but according to one answer they do....are these the 90 degree fitting hoses at the cylinder?
4 years ago1 Answer
- A: For additional product support, please contact 317.329.6590.4 years agoHelpful?
Q: Does this come supplied with the hyd connection hoses?
5 years ago1 Answer
- A: Yes.5 years agoHelpful?
Q: Can you take the check valve off and use the cylinder without it? If so what are the threads on the cylinder?
5 years ago1 Answer
- A: Yes, you can use this cylinder without the check valve; however, doing so will void the warranty. The threads on the cylinder are the same as in the check valve: 3/8" BSPP.5 years agoHelpful?
Q: The current top link that I have both ends will move so that I can position it from the tractor to the implement. So my question is will one of the pin eyelets spin so that they are both in the same position and not 90 degrees out as the picture shows?
5 years ago1 Answer
- A: Yes, the eyelet end attached to the piston rod (implement side) will rotate to any position needed, the photo just shows a possible set-up.5 years agoHelpful?
Q: Do you have a replacement part umber for the check valve assembly? I have bent the rods on the check valve and need to replace the assembly.
5 years ago1 Answer
- A: Yes. You may obtain them through visiting your local Tractor Supply retail location. Per the manufacturer, you have two options for this issue as follows. OPTION 1 The customer can replace just the bent rods (check valve still operational) using the following AMA part numbers: 1 – 1 pc AMA p/n 05508 (hydraulic top link replacement tube kit for check valve) 2 – 2 pcs AMA p/n 02441 (compressions rings for hydraulic top link check valve) 3 – 2 pcs AMA p/n 02424 (nut for compression rings) OPTION 2 If the customer needs to also replace the check valve along with the tubing with one kit: 1 – 1 pcs AMA p/n 05165 (see picture and diagram) Please make sure to have these part numbers when visiting our store so that we may promptly obtain them on your behalf.5 years agoHelpful?
Q: Does it have pressure relief so you can manually adjust when hooking up to implement.
6 years ago1 Answer
- A: No, this cylinder does not have a pressure relief valve, but it is controlled by the remotes on the back of the tractor.6 years agoHelpful?
Q: Is the Working Length Range specifying the overall length or the center to center of the pins?
7 years ago1 Answer
- A: Yes, the working length range is the measurement between pin hole centers when the cylinder is fully closed vs fully extended. SO, this particular cylinder is 20 7/8" pin center to pin center when fully retracted and 31 7/8" pin center to pin center when fully extended, meaning the cylinder has a stroke of 11".7 years agoHelpful?
1 - 10 of 12 Questions
Similar Items
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Items You May Like
-
-
Top Rated
-
-
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
Reviews
Summary of Reviews
The product is reported to be well-made and versatile, allowing for easy and precise adjustment of various tractor attachments. Customers highlight the convenience of the hydraulic functionality, which saves time and effort compared to manual top links. While a few customers noted minor fitment issu...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
- purchase
- installation
- quality
- satisfaction
- adjustability
- price
- efficiency
- width
1 to 4 of 133 Reviews .
1 – 4 of 133 Reviews
Most Recent
Maine
Reviews 4
5 out of 5 stars.
Hydraulic Top Link
3 months ago
100% Plug and Play. Correct hoses with the correct connectors. Just pin it in place, plug in the hoses and go to work.
SweepstakesYes
Yes, I recommend this product.
Anonymous
Virginia, USA
Review 1
5 out of 5 stars.
Excellent quality at a reasonable price.
10 months ago
I got this to replace a Turkish made and shipped from the Netherlands one that I bought online a few years ago at a discount price. This Italian made top link is so much better in quality and functionality. I spent a lot to add rear hydraulics to my tractor so that is why I went with the cheapest cylinder I could find. With the first one the swivel ball on the tractor end barely moved and the swivel on the ram end was frozen in place from being pressed too tightly in the ears. This AMA USA link has properly moving swivels on both ends and they didn’t have to be milled down to fit like some owners have mentioned.
SweepstakesYes
Yes, I recommend this product.
Reviews 2
5 out of 5 stars.
Top link
a year ago
Works great easy to hook up on my kioti tractor.
SweepstakesYes
Yes, I recommend this product.
Arizona
Reviews 4
5 out of 5 stars.
Top link
2 years ago
Works well. As advertised
SweepstakesYes
Yes, I recommend this product.
