AMA USA Category 2 Hydraulic Top Link, 21-5/8 - 32-11/16 in.

SKU: 134546099
AMA USA Category 2 Hydraulic Top Link, 21-5/8 - 32-11/16 in.
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.6
4.6
 (14)

Quantity


7994 crain hwy south
glen burnie, MD 21061
(410) 969-8900
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

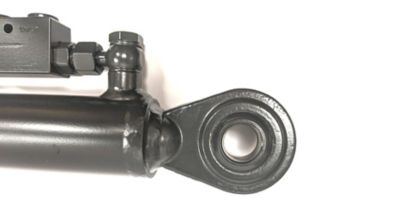

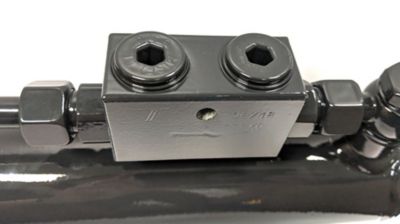

Upgrade from a mechanical top link to a hydraulic top link and get more done! A hydraulic top link can be adjusted from the operator's seat, so there's no more getting on and off your tractor to make adjustments. This double-acting cylinder is made in Italy and is pressure tested to ensure it'll work right out of the box. The honed and finished steel tube, chrome plated and polished rod, and top quality seals guarantee a high-quality product. It also comes with a double pilot operated check valve to help hold the cylinder in place and prevent drift. This category 2 top link measures 21 5/8" fully closed to 32 11/16" fully extended (pin center to pin center). Each top link comes with two 3/8 in. BSP to 3/8 in. NPT adapters.

  • 1 in. pin holes on both ends (the piston can be rotated as needed)
  • Ball width: 2 in. (both ends)
  • Min - max length: 21-5/8 - 32-11/16in.
  • Stroke: 11 1/16 in.
  • Cylinder bore: 2"
  • Rod diameter: 1-3/16 in.
  • Pushing/lifting capacity: 6700 lbs. / 4300 lbs. (estimates based on a working pressure of 2175 PSI)
  • Honed and finished steel tube, chrome plated and polished rod, top quality seals
1 year manufacturer's warranty guarantees against mechanical defects

Specification Description
Product Height: 5 in.
Thread Size: 3/8 in. BSP (comes with 3/8 in. BSP to 3/8 in. NPT adapters)
Working Length Range: 21-5/8 - 32-11/16 in.
Application/Use: Used in place of a mechanical top link on a 3-point hitch
CountryofOrigin: Imported
Part Number: 1597
Product Length: 25 in.
Brand: AMA USA
Product Weight: 21 lb.
Material: Steel
Compatibility: AMA USA
Product Width: 2 in.
Warranty: 1 year
Ball Socket Size: 1 in. hole, 2 in. wide
Manufacturer Part Number 1597
AMA USA Category 2 Hydraulic Top Link, 21-5/8 - 32-11/16 in. is rated 4.6 out of 5 by 14.
Rated 3 out of 5 by from Good piece, check lifting needs Bought this 2” bore toplink last month. But lacks capacity for our heavy 4 row planter. 2” bore pulls 4,500#, I should have gotten 2.5” bore which pulls 8,000#. Real nice link otherwise.
Date published: 2020-03-23

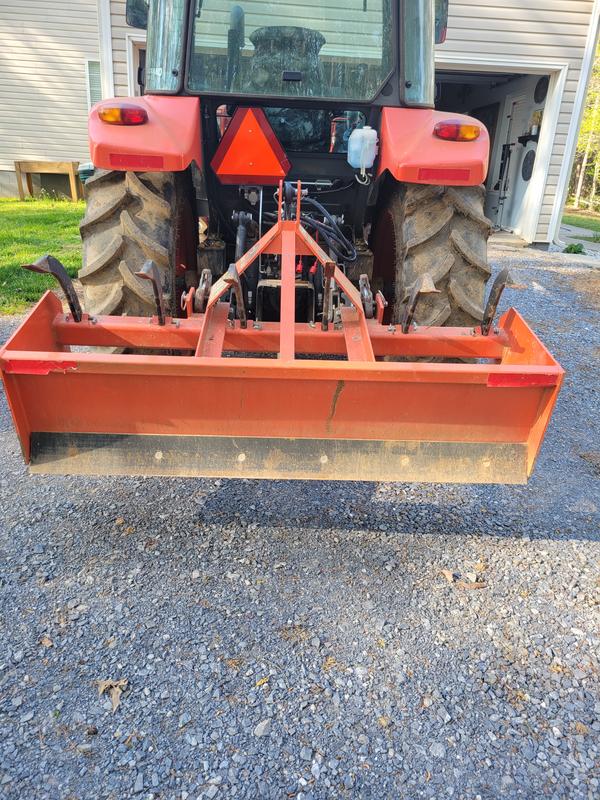

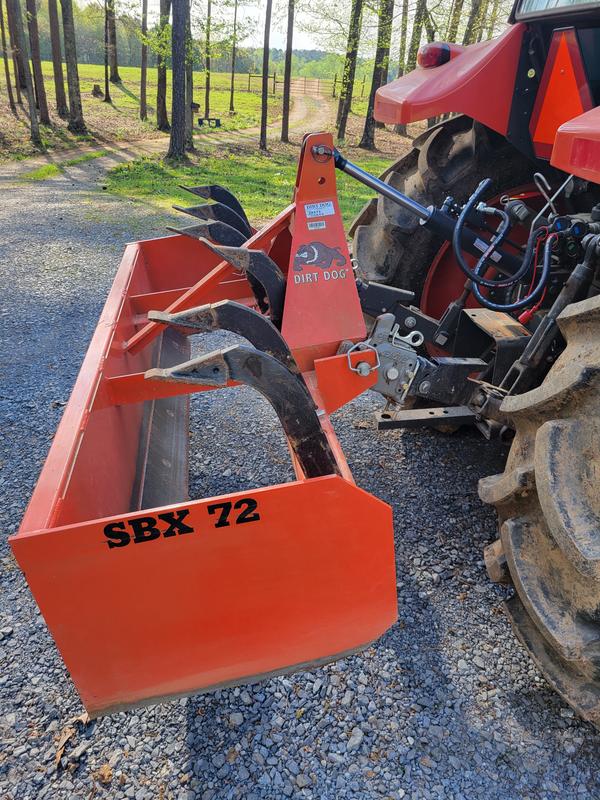

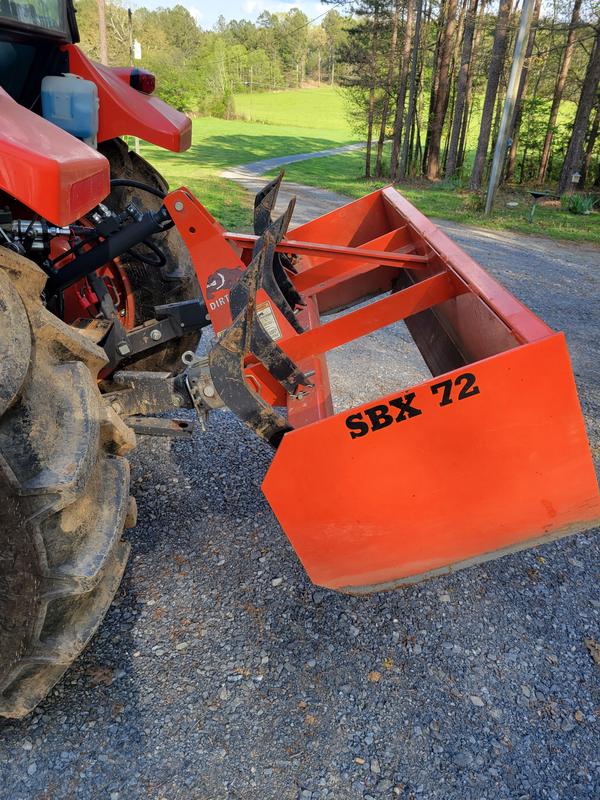

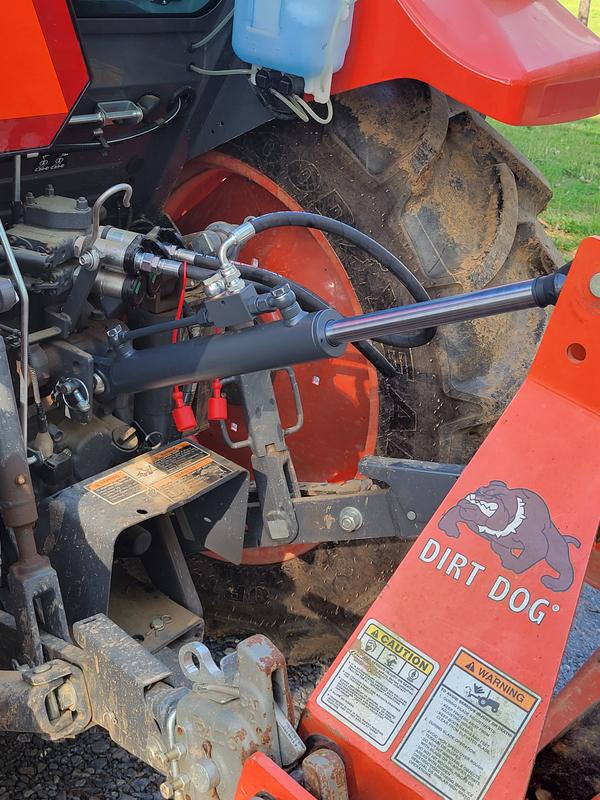

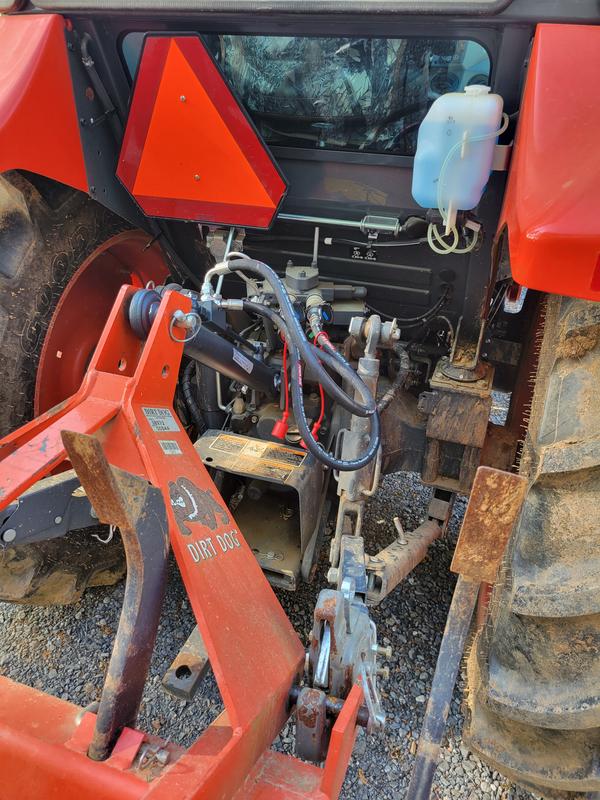

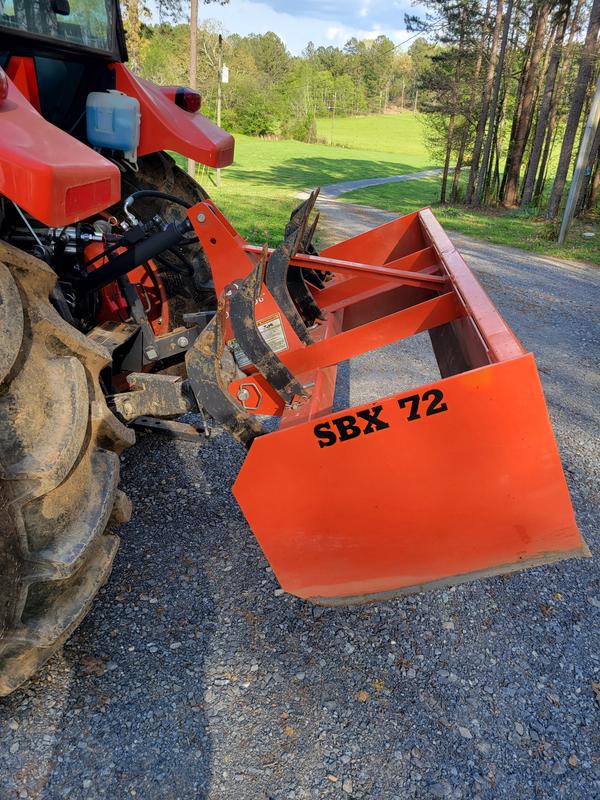

Rated 5 out of 5 by from Get more out of your implements! Picked this because of the length it would extend to. I have a Cat 1, but this was a better solution for my needs. I do have some issues getting it on my brush-hog, because the end is too large. I need to file it down a little, but with 2 bushings, perfect solution for a Cat 1. Works great with a box blade!
Date published: 2020-01-27
Rated 5 out of 5 by from Very good spent money Very well built cylinder. Strong and doesnt drift from settings.
Date published: 2019-10-24

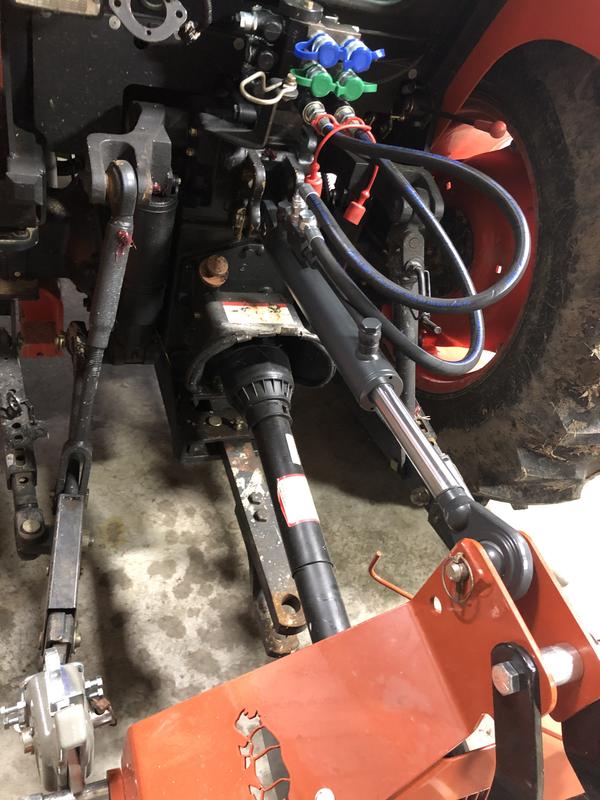

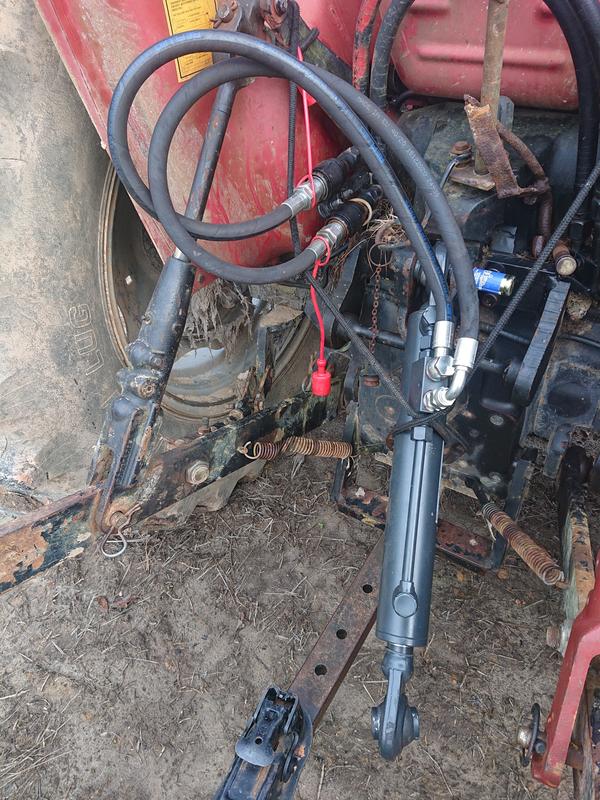

Rated 5 out of 5 by from Works great Works great, although did have to grind down to work with most cat1 implements. My tractor has cat2 so wanted this in case I ever need it. Hoses, purchased through TS for these, on the other hand have a pretty bad leak. Left a separate review for those.
Date published: 2019-08-06
  • y_2020, m_6, d_2, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_4, tr_10
  • loc_en_US, sid_134546099, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • REVIEWS, PRODUCT

What is the maximum pressure for this cylinder?

Asked by: BANG Farms
The max PSI for this cylinder is 3600.
Answered by: CodyP
Date published: 2020-03-19
