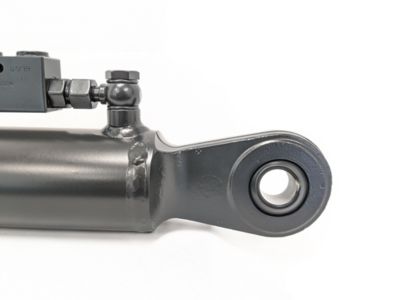

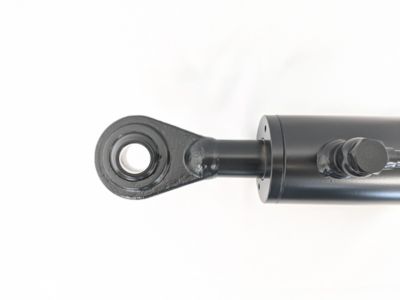

AMA USA Category 2 Hydraulic Top Link, 24 in. to 34-3/8 in.
4.97 Reviews
Item # 147626699
$329.99
Neighbor’s Club Members earn points with purchases.
AMA USA Category 2 Hydraulic Top Link, 24 in. to 34-3/8 in.
4.97 Reviews
Item # 147626699
$329.99
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.
Upgrade from a mechanical top link to the AMA USA Category 2 Hydraulic Top Link and get more done! These tractor top links can be adjusted from the operator's seat, so there's no more getting on and off your tractor to make adjustments. The double-acting cylinder on the hydraulic top link is made in Italy and is pressure tested to ensure it'll work right out of the box.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Crafted with honed and finished steel tube, chrome-plated and polished rod and top-quality seals
- 1 in. pin holes on both ends of the hydraulic top link (the piston can be rotated as needed)
- Ball width measures 2 in. (both ends)
- Minimum to maximum length measures 24 in. to 34-3/8 in.
- Stroke measures 10-3/8 in.; cylinder bore measures 2-3/4 in.; rod diameter measures 1-3/8 in.
- 1 year manufacturer's warranty guarantees this AMA USA top link against mechanical defects
- Comes with 3/8 in. BSP to 3/8 in. NPT adapters (if not ordered with the AMA USA hose kit)
- Pushing/lifting capacity of 13,100 lb./9,800 lb. (estimated based on a working pressure of 2,175 PSI)
- Double-piloted check valve and double-acting cylinder
- Ports; 3/8 in. BSP (includes BSP male to NPT male adapters)
- Hydraulic top link is pressure tested for durability
Similar Items
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
-
-
-
-
-
-
Items You May Like
-
-
Top Rated
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
Customers Also Bought
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Top Rated
-
-
-
Top Rated
-
Reviews
Customer Images and Videos
- installation
- instructions
- packaging
- size
- small
1 to 3 of 7 Reviews
1 – 3 of 7 Reviews
Featured
Lancaster, KY
Review 1
5 out of 5 stars.
Great product
2 years ago
This is a high quality top link that works perfect on my M5-111. Couldn't be happier
Yes, I recommend this product.
Centerville, Texas
Review 1
5 out of 5 stars.
Good quality
3 years ago
Strong and works great on Case 120c tractor. Had to install on middle top pin for clearance.
Yes, I recommend this product.
New Hampshire
Review 1
5 out of 5 stars.
Easy install on L5740
4 years ago
This size works great on my Kubota L5740. I had to grind down the ball ends a small bit at the tractor end to fit the category 1 spacing. The rod travel gives at least 30 degrees of angle in each direction on my quick hitch. Perfect for fine tuning the box blade to float or dig.
Yes, I recommend this product.
