AMA USA Category 2 Hydraulic Top Link, 20-7/8 in. to 29-1/8 in.
AMA USA Category 2 Hydraulic Top Link, 20-7/8 in. to 29-1/8 in.
Item # 147625899
$349.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$349.99
or
or
$59/mo.† suggested payments with 6 Months Financing or earn $17 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

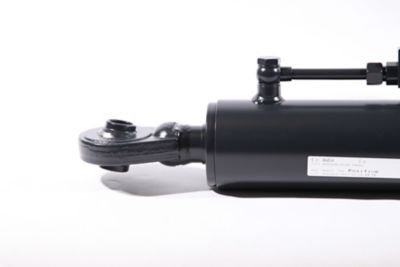

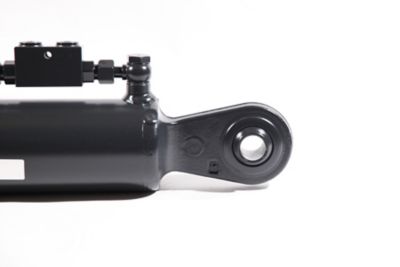

Upgrade from a mechanical top link to the AMA USA Category 2 Hydraulic Top Link and get more done! These tractor top links can be adjusted from the operator's seat, so there's no more getting on and off your tractor to make adjustments. The double-acting cylinder of the hydraulic top link is made in Italy and is pressure tested to ensure it'll work right out of the box.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 1 in. pin holes on both ends (the piston can be rotated as needed)
- Ball width measures 2 in. (both ends of the hydraulic top link)
- Offers a minimum to maximum length of 20-7/8 in. to 29-1/8 in.
- Stroke measures 8-1/4 in.; cylinder bore measures 3-1/8 in.; Category 2 top link rod diameter measures 1-9/16 in.
- 1-year manufacturer's warranty guarantees against mechanical defects
- Honed and finished steel tube, chrome-plated and polished rod and top-quality seals
- Pushing/lifting capacity of 17,100 lb./12,900 lb. (estimates based on a working pressure of 2,175 PSI)
- Double-piloted check valve and double-acting cylinder
- Ports; 3/8 in. BSP (includes BSP male to NPT male adapters)
- Hydraulic top link is pressure tested for durability
- Available replacement parts include 04202 check valve, 05508 tubing kit and 05191 check valve and tubing kit
- Original equipment manufacturer names, part numbers, tradenames, trademarks, drawings, colors and descriptive information are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer
| Brand | AMA USA |
|---|---|
| Country of Origin | Imported |
| Compatibility | AMA USA |
| Hitch Type | Category 2 |
| Package Quantity | 1 |
| Pin Hole Diameter | 1 in. |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 22 in. |
| Product Weight | 37 lb. |
| Product Width | 4 in. |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | 06014 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: Do they offer a repair kit for the tubes connecting the pilot valve the cylinder
5 years ago1 Answer
- A: For additional product support, please contact the manufacture.5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: Do they offer a repair kit for the tubes connecting the pilot valve the cylinder
5 years ago1 Answer
- A: For additional product support, please contact the manufacture.5 years agoHelpful?
Similar Items
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
Top Rated
Items You May Like
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
-
-
Customers Also Bought
-
Subscription Eligible
-
-
-
-
Subscription Eligible
-
Subscription Eligible
-
-
-
-
-
-
Top Rated
Reviews
- installation
- quality
- sturdy
- wait time
- weight
1 to 4 of 10 Reviews .
1 – 4 of 10 Reviews
Most Recent
Brookhaven, MS
Review 1
5 out of 5 stars.
Kubota M7040
9 days ago
This thing is a beast! I put it on my M7040 Kubota and am very pleased. I did have to grind the ball joint a little on the fixed side that attaches to the tractor side. I also had to use a cat 2 to cat 1 bushing. I purchased the Ag type hose set separately. Works great. The speed of extension is good and slow.
SweepstakesYes
Yes, I recommend this product.
Darlington, Florida
Reviews 2
5 out of 5 stars.
Great Product
3 years ago

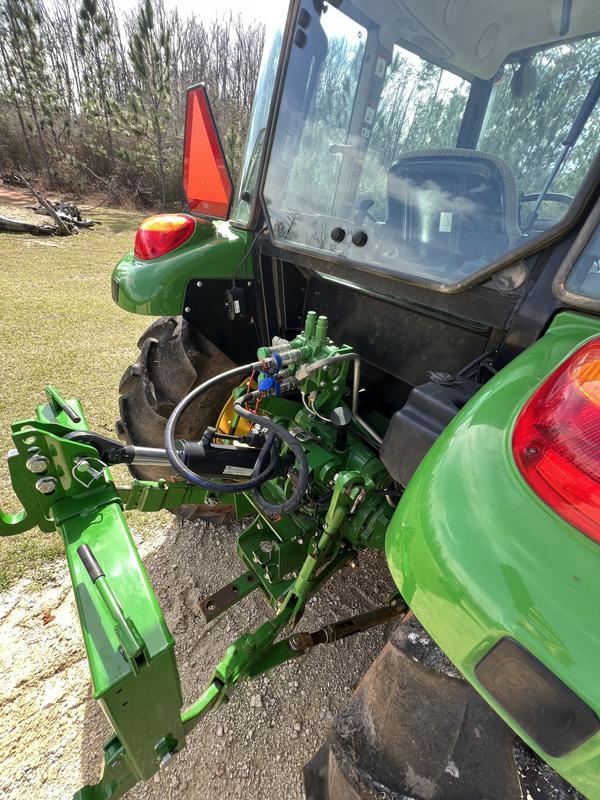

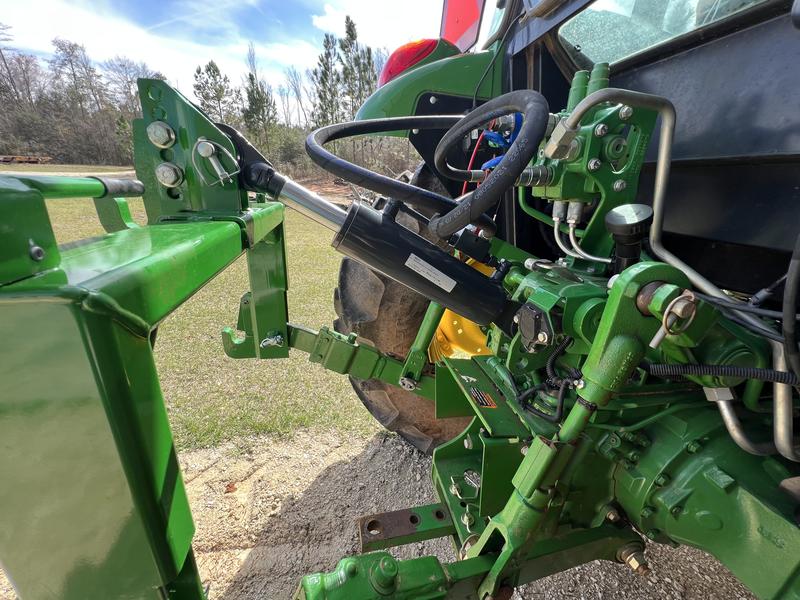

Works great. Heavy duty. Using it on my John Deere 5100E with an iMatch quick hitch. An absolute must when hooking up implements with a quick hitch. Never leave the cab to adjust the top link again. Did have to do some grinding on the ball joints to get it to fit but no big deal.
Yes, I recommend this product.
Kodak, TN
Reviews 4
5 out of 5 stars.
Works perfectly for my tractor.
4 years ago
Fits my Kubota M5660 perfectly. Good range of motion and is tilting 3 point attachments with ease. Be sure to get the Tractor Supply Hydraulic hose kit. It plugs directly into my rear ports and the length is great.
Yes, I recommend this product.
Reviews 2
5 out of 5 stars.
very sturdy and strong
5 years ago
A bit bulkier than I expected it, but hence very sturdy and strong. Check your hydraulic system's flow rate. Mine is 15 gpm and the cylinder moves about 1/2" per second, which is ok but any slower would be annoying
Yes, I recommend this product.
