CountyLine 3-Point Post Hole Digger, 602377

SKU: 135311499
CountyLine 3-Point Post Hole Digger, 602377
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.4
4.4
 (183)
Write a review

Quantity

TSC of watsonville #1955
580 auto center dr
watsonville, CA 95076
(831) 761-5368
TSC of watsonville #1955
580 auto center dr
watsonville, CA 95076
(831) 761-5368
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

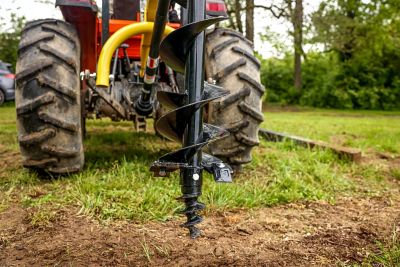

Drill holes quickly and easily with the CountyLine 3-Point Post Hole Digger. Designed to fit any standard tractor PTO, this steel hole digger drills narrow holes (6 inch, 9 inch, or 12 inch) to install posts for fences and signs.

  • 6 in., 9 in., & 12 in. Augers compatibility (sold separately)
  • Heavy duty gearbox with heavy-duty PTO driveline
  • Includes 2 removable legs
  • Driveshaft cradle
  • 4 Hole adjustments for boom
  • Control Rod
  • For CAT 1 & CAT 2 tractors ranging from 18HP to 100 HP
3 year limited warranty

Specification Description
Frame Material: Steel
Product Weight: Approx. 190 lb. with stand legs, control rod and hardware. (Auger not included)
CountryofOrigin: Imported
Maximum Drilling Depth: 48 in.
Application/Use: This is a 3 point tactor attachment desgined to drill 6 in., 9 in., or 12 in. holes in the ground.
Compatibility: Any CAT 1 or CAT 2 Tractor
Minimum Horsepower: 18 HP
Part Number: 602377
Product Length: With a 48 in. auger installed the length is 72 in.
Boom Pole Shape: 3 in. diameter steel J shaped.
Material: Steel
Recommended Auger Part Number: Countyline Auger for Post Hole Digger 9 in. SKU # 210024699, CountyLine Auger for Post Hole Digger 6 in. SKU# 210023899, CountyLine Auger for Post Hole Digger, 12 in. SKU 210025499
Brand: CountyLine
Maximum Horsepower: The PHD is designed for up to 100 HP tractors, the shear bolt design protects the drive system of the implement and tractor from loads over 40 hp.
Power Take Off (PTO): Minimal required force to overcome resistance of drive train on PHD. Less than 1 hp
Special Feature(s): Control Rod and 2 leg stand
Gearbox Ratio: 2.92:1
Number of Lifting Loops: 4
Hitch Type: 3 point attachment
Product Height: With stand legs installed and at 48 in. auger position the height is 60 in.
Product Width: The width is 32 in. at its widest point (hitch pins).
Lift Capacity: This boom is not designed to be a lift device. Max weight boom pole can support is 500 lb.
Manufacturer Part Number 602377
CountyLine 3-Point Post Hole Digger, 602377 is rated 4.4 out of 5 by 183.
Rated 4 out of 5 by from Very satisfied Great Product for the price. Fairly easy to assemble and tweak the auger angle. The only reason for 4 stars is the auger must be purchase separately.
Date published: 2020-05-26

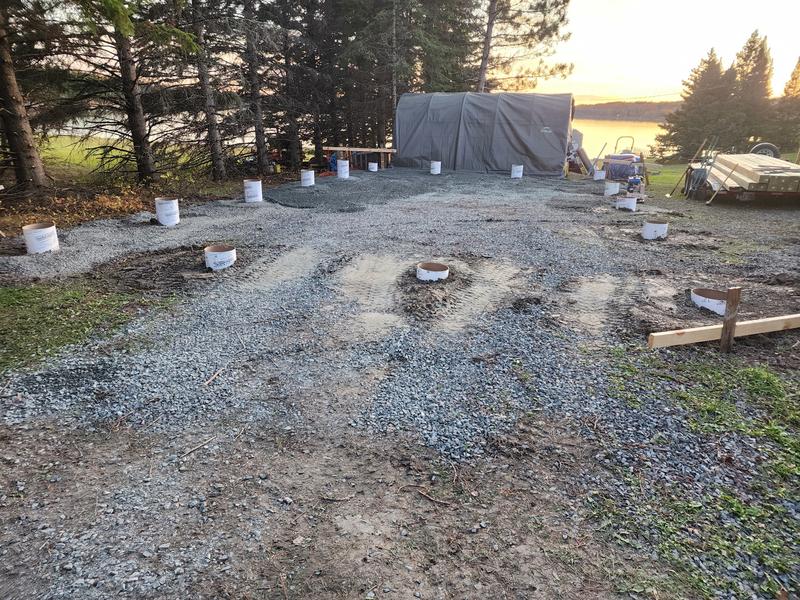

Rated 5 out of 5 by from L&L Ranch This works so well and way easier than a gas hand held auger. We have built our pony corrals in a day. We have a lot of rock and it handles it well! It has paid for itself in a day. No need to hire someone saves us money!
Date published: 2020-05-24
Rated 5 out of 5 by from Works Great I was hesitant about purchasing because I have an older compact tractor, but I took the plunge and purchased with the 12" auger and glad I did. This post hole digger works great saved my back from digging 8 holes so far in an area with clay .Very happy with the purchase and tractor supply.
Date published: 2020-05-24
Rated 5 out of 5 by from Easy to use I got this last week and hooked it up and it digs holes so fast.
Date published: 2020-05-21
  • y_2020, m_5, d_27, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_88, tr_95
  • loc_en_US, sid_135311499, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 6ms
  • REVIEWS, PRODUCT

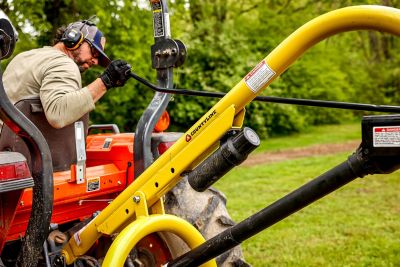

What is the control rod and does it have to be hooked up

Asked by: shildreth60
The control handle is used to aim the auger point where you want to dig.
Answered by: jessicasm
Date published: 2020-03-12

wondering about the gear oil capacity. Also I would like to view the manual for this, can you show a PDF link?

Asked by: CJ0449
Please check your email for requested information.
Answered by: jessicasm
Date published: 2020-02-17

Hello, Will this work for a Mahindra MAX 26 (26hp) compact tractor? Thanks, Brian

Asked by: BLF_
Yes, this model is compatible with your unit.
Answered by: jessicasm
Date published: 2020-03-17

will this work on a JD 950 tractor

Asked by: DEF60
Yes, this is compatible for your unit.
Answered by: ErlindaC
Date published: 2020-04-13

Is there an 18” or 24” auger bit (even another brand) compatible with this product? Or is the 12” bit the largest one that’s compatible?

Asked by: beamerblvd
Thank you for your inquiry, please check your email for the requested information.
Answered by: ErlindaC
Date published: 2020-04-20

Will your new 3 pt post digger work on a 2380 kubota sub compact tractor. It has 24hp and 17.7 hp pto.

Asked by: Anthony Troy
Yes, this model is compatible with your unit.
Answered by: jessicasm
Date published: 2019-10-07

Where can I find parts for the power head ? I have been using this auger for years (first on a MF 135 and now on a Kubota L3301) and it is leaking around the input shaft seal/bearing. It has performed wonderfully all these years but now needs TLC!

Asked by: KLD_299
For replacement parts, and manufacture warranty information please contact Customer Service at (888) 376-9601 available Monday-Friday 8am-8pm (EST), Saturday 8am-5pm (EST).
Answered by: jessicasm
Date published: 2019-11-20

will this work on a john deere 4052M with the I-match hitch?

Asked by: mattpara
No, this model is not compatible with your unit. It needs to be connected directly to the tractor.
Answered by: jessicasm
Date published: 2020-01-22
