WorkHorse Sprayers 25 gal. 2-Nozzle 12V Deluxe Trailer Sprayer with Breakaway Boom
$429.99
WorkHorse Sprayers 25 gal. 2-Nozzle 12V Deluxe Trailer Sprayer with Breakaway Boom
WorkHorse Sprayers 25 gal. 2-Nozzle 12V Deluxe Trailer Sprayer with Breakaway Boom
Item # 122503899
$429.99
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
WorkHorse Sprayers 25 gal. 2-Nozzle 12V Deluxe Trailer Sprayer with Breakaway Boom
Item # 122503899
$429.99
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.

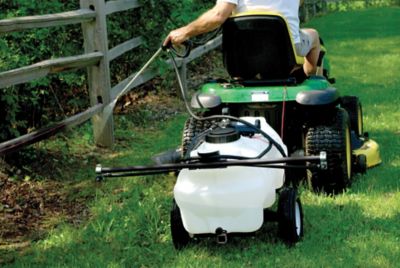

The WorkHorse Sprayers 25 gal. Deluxe Trailer Sprayer with 2-Nozzle Breakaway Boom is ideal for weed control in gardens, driveways, ditches, ponds, pastures and more. Designed to offer chemical-resistance, this compact trailer sprayer can be used with a wide variety of liquids. It's made to provide 80 in. of coverage with dripless tips. The trailer sprayer also comes equipped with a heavy-duty manifold and frame construction to offer durability.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.
- Polyethylene trailer sprayer tank for durability
- Equipped with 4.10/3.50 x 6 pneumatic tires
- 12V demand pump; 2.2 GPM
- Ideal for weed control applications with gardens, driveways, ditches, ponds, pastures, orchards and more
- Deluxe handgun with an adjustable brass tip
- Comes with 15 ft. of 3/8 in. PVC-reinforced hose
- Heavy-duty manifold and frame construction offers durability
- Pressure gauge with an adjustable pressure range (0 to 60 PSI max)

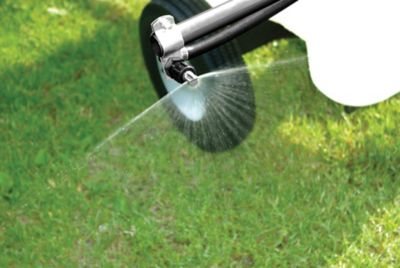

- Breakaway boom with 2 nozzles, check valves and filters
- 80 in. coverage with dripless tips; 8 ft. of wiring harness with battery clips
- Trailer sprayer is made in the U.S.A.
- Compact trailer and tank for easy portability and storage
- Maximum horizontal flow of 25 ft.; maximum vertical flow of 12 ft.
| Brand | WorkHorse Sprayers |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 6.5 ft |
| Boom Nozzle Count | 2 |
| Boom Style | Fixed Boom |
| Chemical Compatibility | Herbicide, Grass Killer, Pesticide, Fertilizer, Insecticide, Fungicide |
| Features | Chemical Resistant |
| Hose Diameter | 3/8 in. |
| Hose Length | 15 ft. |
| Maximum Flow Rate | 2.2 GPM |
| Maximum Operating Pressure | 60 PSI |
| Power Type | 12 Volt |
| Product Height | 18 in. |
| Product Length | 36 in. |
| Product Weight | 55 lb. |
| Product Width | 18 in. |
| Pump Type | Diaphragm |
| Boom Width | 3.5 ft |
| Tank Capacity | 25 gal. |
| Spray Method | Boom Spraying (Precision), Spot Spraying |
| Tank Material | Polyethylene |
| Warranty | 1 Year |
| Manufacturer Part Number | G23-LG25DTS |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 67 Questions
Newest questions
Q: Does this sprayer have agitation to keep liquid mixed?
a month ago2 Answers
- A: While this sprayer does not feature a dedicated, standalone mechanical or jet agitator, it does include a bypass valve. When opened, this bypass line redirects a portion of the fluid back into the tank to provide continuous fluid movement and gentle agitation. Please note that using the bypass line will reduce your spraying pressure at the boom, so you can adjust the valve to find the right balance between agitation and pressure for your specific chemical mixture.a month agoHelpful?
Q: Can this be used to spray a potassium chloride solution for de-icing?
6 months ago1 Answer
- A: According to our compatibility chart, you can run a potassium chloride solution through the pump. Most 12V diaphragm pumps (e.g., agricultural spray pumps) feature polypropylene bodies and Viton/Santoprene diaphragms, which are generally compatible with fertilizer-grade KCl.6 months agoHelpful?
Q: Dimensions on whole unit
6 months ago1 Answer
- A: Approx. Dimensions: Length: 54.331", Width outside wheels: 24.409", Boom Width: 42.5" and Height: 27.165".6 months agoHelpful?
Q: Do the boom nozzles adjust for fence row spraying and can you turn one side off while other side is open
a year ago1 Answer
- A: Sorry you are unable to turn one side off from spraying on the boom. The only way you could do that is if you install two-way 3/8" ball valves in line on each side, that will allow you to shut off one side or the other.a year agoHelpful?
Q: What is the manifold part number? I need to order a new one.
2 years ago1 Answer
- A: Hi, Please refer to your owner's manual or online owner's manual for parts information. Replacement parts and accessories can also be ordered directly from WorkHorse using the contact information below. ***WORKHORSE*** https://workhorsesprayers.com/support/ or call Phone: 1 (800) 654-9808 Hours: Mon-Fri 8am – 4:30pm (EST)2 years agoHelpful?
Q: I need the manual
2 years ago1 Answer
- A: ***WORKHORSE*** https://workhorsesprayers.com/support/ or call Phone: 1 (800) 654-9808 Hours: Mon-Fri 8am – 4:30pm (EST)2 years agoHelpful?
Q: Is there a possible way to hook this trailer to the tow hitch of my truck
2 years ago1 Answer
- A: Hi, Here is the information we received from our vendor- "Currently there is not a good way to hook the sprayer to a tow hitch of a pickup truck."2 years agoHelpful?
Q: Does this unit have an on/off toggle switch?
3 years ago1 Answer
- A: Hi there, Yes, it does.3 years agoHelpful?
Q: D I need to hook up to mower battery when using
3 years ago1 Answer
- A: Hi there, No, it does not need to be hooked up to your mower battery. Here is the link to the manual so you can view how this works. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/22/50/38/1225038_Man1.pdf3 years agoHelpful?
Q: I am looking for a replacement wheel & tire combination. My tires are 4.10/3.50-6 with a 2-1/4" hub, offset to one side, 1/2" shaft/bolt. The generic wheels in stores are usually not offset and are usually for 5/8" and larger shafts.
3 years ago1 Answer
- A: Please contact our customer service department at 800-654-9808, part number 600104.3 years agoHelpful?
1 - 10 of 67 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 67 Questions
Newest questions
Q: Does this sprayer have agitation to keep liquid mixed?
a month ago2 Answers
- A: While this sprayer does not feature a dedicated, standalone mechanical or jet agitator, it does include a bypass valve. When opened, this bypass line redirects a portion of the fluid back into the tank to provide continuous fluid movement and gentle agitation. Please note that using the bypass line will reduce your spraying pressure at the boom, so you can adjust the valve to find the right balance between agitation and pressure for your specific chemical mixture.a month agoHelpful?
Q: Can this be used to spray a potassium chloride solution for de-icing?
6 months ago1 Answer
- A: According to our compatibility chart, you can run a potassium chloride solution through the pump. Most 12V diaphragm pumps (e.g., agricultural spray pumps) feature polypropylene bodies and Viton/Santoprene diaphragms, which are generally compatible with fertilizer-grade KCl.6 months agoHelpful?
Q: Dimensions on whole unit
6 months ago1 Answer
- A: Approx. Dimensions: Length: 54.331", Width outside wheels: 24.409", Boom Width: 42.5" and Height: 27.165".6 months agoHelpful?
Q: Do the boom nozzles adjust for fence row spraying and can you turn one side off while other side is open
a year ago1 Answer
- A: Sorry you are unable to turn one side off from spraying on the boom. The only way you could do that is if you install two-way 3/8" ball valves in line on each side, that will allow you to shut off one side or the other.a year agoHelpful?
Q: What is the manifold part number? I need to order a new one.
2 years ago1 Answer
- A: Hi, Please refer to your owner's manual or online owner's manual for parts information. Replacement parts and accessories can also be ordered directly from WorkHorse using the contact information below. ***WORKHORSE*** https://workhorsesprayers.com/support/ or call Phone: 1 (800) 654-9808 Hours: Mon-Fri 8am – 4:30pm (EST)2 years agoHelpful?
Q: I need the manual
2 years ago1 Answer
- A: ***WORKHORSE*** https://workhorsesprayers.com/support/ or call Phone: 1 (800) 654-9808 Hours: Mon-Fri 8am – 4:30pm (EST)2 years agoHelpful?
Q: Is there a possible way to hook this trailer to the tow hitch of my truck
2 years ago1 Answer
- A: Hi, Here is the information we received from our vendor- "Currently there is not a good way to hook the sprayer to a tow hitch of a pickup truck."2 years agoHelpful?
Q: Does this unit have an on/off toggle switch?
3 years ago1 Answer
- A: Hi there, Yes, it does.3 years agoHelpful?
Q: D I need to hook up to mower battery when using
3 years ago1 Answer
- A: Hi there, No, it does not need to be hooked up to your mower battery. Here is the link to the manual so you can view how this works. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/22/50/38/1225038_Man1.pdf3 years agoHelpful?
Q: I am looking for a replacement wheel & tire combination. My tires are 4.10/3.50-6 with a 2-1/4" hub, offset to one side, 1/2" shaft/bolt. The generic wheels in stores are usually not offset and are usually for 5/8" and larger shafts.
3 years ago1 Answer
- A: Please contact our customer service department at 800-654-9808, part number 600104.3 years agoHelpful?
1 - 10 of 67 Questions
Similar Items
-
-
-
-
-
Top Rated
-
-
-
-
-
-
-
Items You May Like
-
-
Top Rated
-
-
-
-
-
-
-
-
-
-
Customers Also Bought
-
-
-
Top Rated
-
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Reviews
Summary of Reviews
The sprayer has generally positive reviews, with many users praising its performance, spray pattern, and ease of use. However, some customers reported quality issues with components like tires and pump failures. While the sprayer seems to offer good value, buyers should be aware of the potential dur...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Most Helpful Favorable Review
5 out of 5 stars.
It is truly a Workhorse
8 years ago

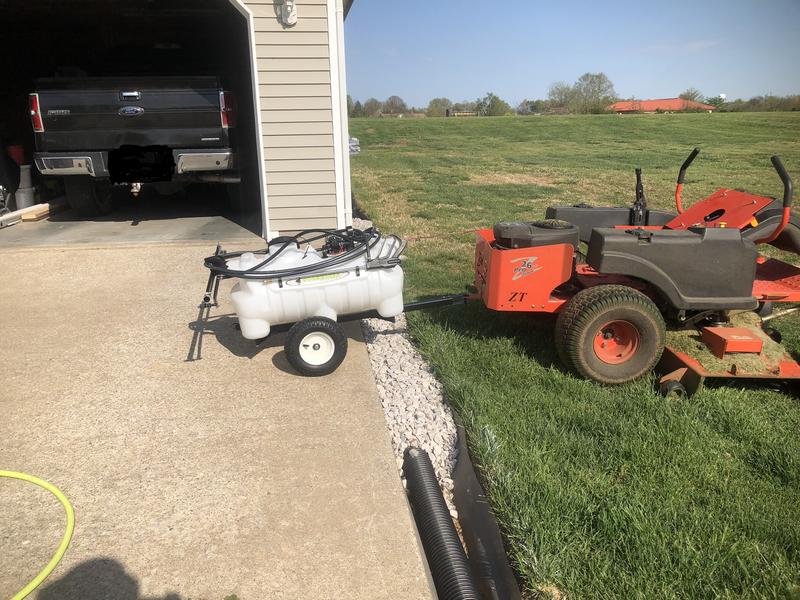

I got the 25 Gal. Workhorse to pull behind my Gravley zero turn radius mower. This product works great with it. It only took me a hour to put together. I have used it twice so far this year and I am very pleased with the Workhorse.
21 people found this helpful
Show Reviews:
Most Helpful Critical Review
1 out of 5 stars.
Garbage
6 years ago
Every plastic parts all leaked. The pressure gauge did not fit the threads. The tube into the tank to draw product up to the pump is such that it does not lie flat but curves up so it routinely leaves 2 gallons of product that it can not reach. Valves leaked. The "instructions" are very scant and inaccurate. Technical support (which I have had to contact nine times) ranged from unknowledgeable and nasty to knowledgable and pleasant. On the positive side, they are sending me six different parts to replace on the unit. Be smart, buy a different product!
18 people found this helpful
Show Reviews:
- spraying
- purchase
- satisfaction
- price
- setup
- instructions
- quality
- ease of use
1 to 4 of 291 Reviews .
1 – 4 of 291 Reviews
Most Recent
Anonymous
Howell, UT
Review 1
5 out of 5 stars.
Work Horse Weed Sprayer
3 months ago
Machine works great. Thanks to Matt and Tyson at the Perry store for their knowledge and help getting the sprayer put together for me. Two great guys.
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
3 months ago
Fimco Industries
Thank you for your purchase of the Workhorse 25-gallon trailer sprayer from Tractor Supply. Glad that you're happy with the sprayer and it's working great for your needs.
Anonymous
Dover de
Review 1
3 out of 5 stars.
Parts
a year ago
Finding it hard to
Order the part that was left out of
Packaging
SweepstakesYes
Response from Fimco Industries:
a year ago
Fimco Industries
Linda, please contact our customer service team at 888-433-6631 and they'll be happy to assist you and get you the missing part.
Indiana
Reviews 2
5 out of 5 stars.
Easy to use Sprayer
a year ago
I love this product
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
a year ago
Fimco Industries
Roy, thank you for your purchase of the Workhorse 25-gallon trailer sprayer from Tractor Supply. Glad that you're happy with your new sprayer and that it's working to your expectations for spraying.
Comanche, Tx.
Review 1
2 out of 5 stars.
Not made for off road farm use.
a year ago
The first time I used it the shutoff valve to the boom cracked. The second time I used it the shutoff valve for the bypass broke into 5 pieces. Both failed after about 2 hours into the job. I replaced them with regular water hose brass shutoff ball valves.

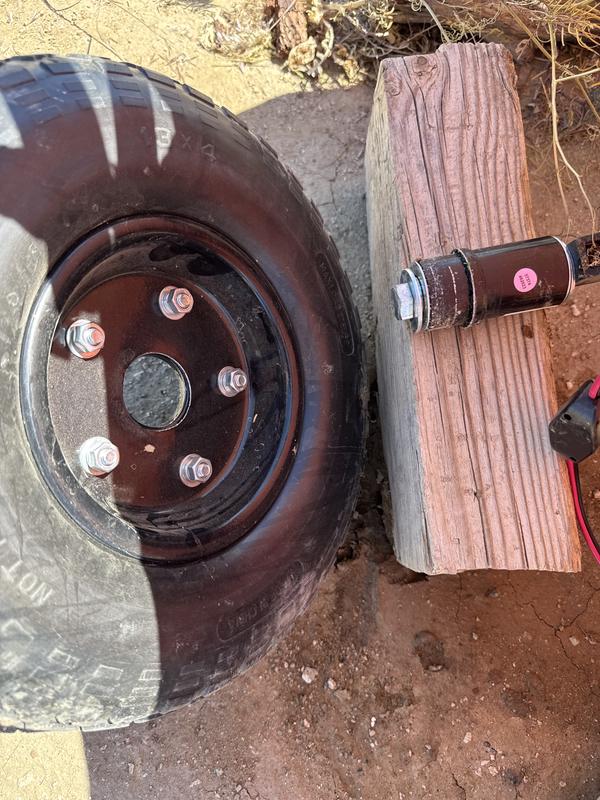

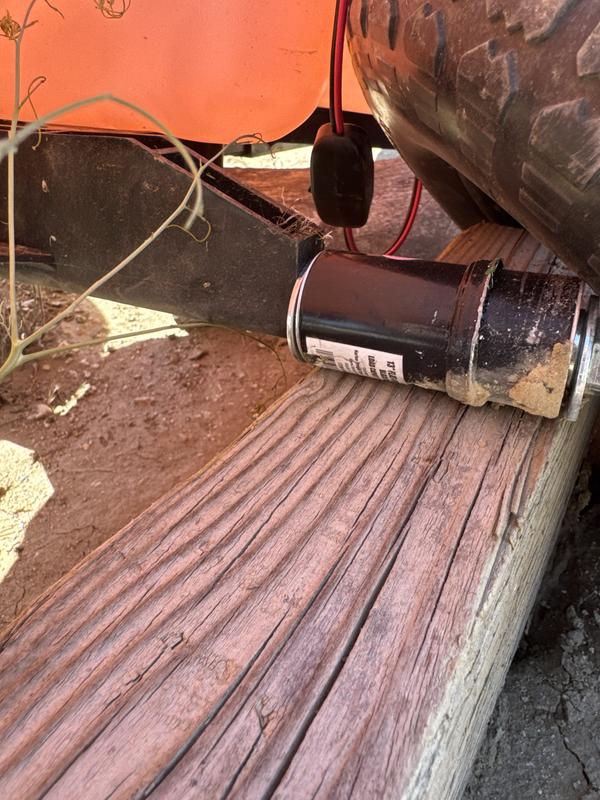

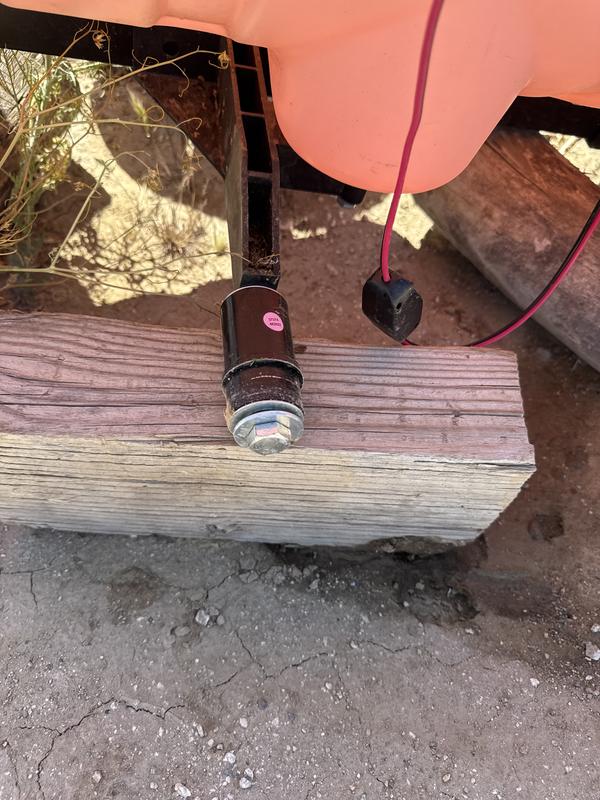

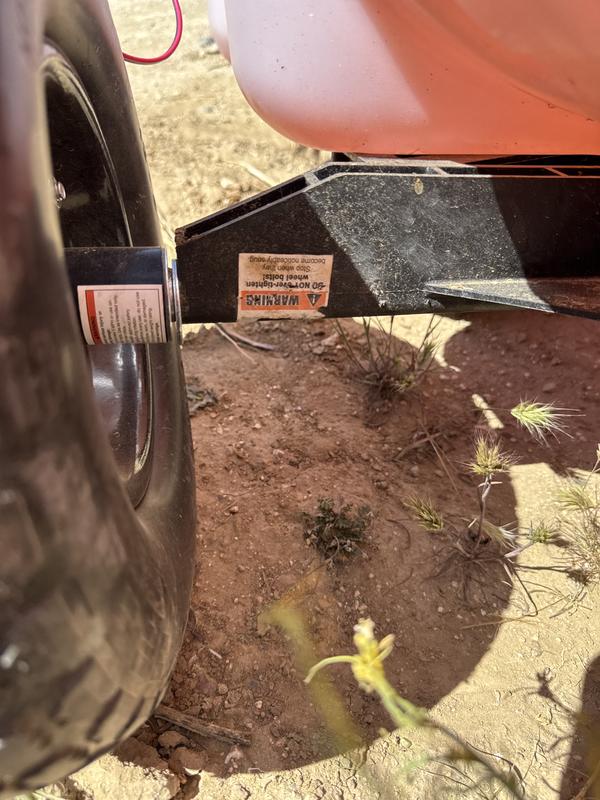

The tires on this sprayer are so soft that even the smallest thorn will penetrate. I've had six flats in about 6 hours of usage. With tire sealant added before use I was able to get back going until one of the tubes got pinched. I will be adding solid flat free tires to keep this thing rolling.
SweepstakesYes
Response from Fimco Industries:
a year ago
Fimco Industries
Sorry you had that issue with the Workhorse 25-gallon trailer sprayer. Haven't heard of any issues with those shut-off valves doing that, but glad you were able to take care of them. Not sure of the terrain that the sprayer is being used on or the speed of pulling the sprayer, but that isn't something that is common for the tires. We do hope that you'll end up being happy with your new sprayer and that it handles your spraying needs.
