WorkHorse Sprayers 40 gal. 12V 2.2 GPM Deluxe Spot Sprayer
$359.99
WorkHorse Sprayers 40 gal. 12V 2.2 GPM Deluxe Spot Sprayer
WorkHorse Sprayers 40 gal. 12V 2.2 GPM Deluxe Spot Sprayer
Item # 136231499
$359.99
or
or
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
WorkHorse Sprayers 40 gal. 12V 2.2 GPM Deluxe Spot Sprayer
Item # 136231499
$359.99
or
or
$60/mo.† suggested payments with 6 Months Financing or earn $17 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.

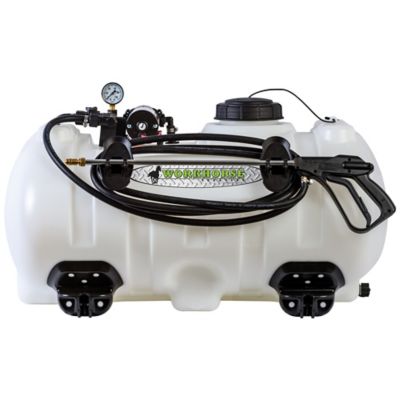

The WorkHorse Sprayers 40 gal. 2.2 GPM Deluxe Spot Sprayer is ideal for property management spraying of gardens, driveways, ditches, ponds, pastures and orchards. Outfitted with a 40 gal. polyethylene tank, this mounted spot sprayer is designed for longer spraying before refilling. The spot sprayer is compatible with a variety of boom attachments (sold separately) to add versatility.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Comes with a 40 gal. polyethylene tank
- Equipped with a 12V demand pump; 2.2 GPM and 60 PSI maximum
- Spot sprayer is made in the U.S.A.
- Deluxe pistol grip handgun with 25 ft. of hose and adjustable brass tip
- 8 ft. wiring harness with battery clips
- 18 in. spray wand is attached with a 3/8 in. PVC-reinforced hose
- Spot sprayer features heavy-duty frame construction and a heavy-duty manifold design
- Pressure gauge keeps you apprised of the boomless sprayer's status
- Chemical-resistant spot sprayer construction and RoundUp ready for durability
- Compatible with a variety of boom attachments (sold separately) to add versatility
- 25 ft. maximum horizontal spray; 12 ft. maximum vertical spray
| Brand | WorkHorse Sprayers |
|---|---|
| Country of Origin | Made in USA |
| Boom Nozzle Count | 1 |
| Chemical Compatibility | Fertilizer |
| Features | Handgun Included |
| Hose Diameter | 3/8 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 2.2 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Straps |
| Power Type | 12 Volt |
| Product Height | 21 in. |
| Product Length | 36 in. |
| Product Weight | 36 lb. |
| Product Width | 25 in. |
| Pump Type | Diaphragm |
| Spray Method | Spot Spraying |
| Tank Material | Polyethylene |
| Warranty | 1 YEAR |
| Manufacturer Part Number | G23-LG40DSS |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 17 Questions
Newest questions
Q: If I want to extend the spray hose by adding an additional 10 to 15 feet, what kind of hose is it so I can buy the right male to male connector, clamps and extra hose?
a year ago1 Answer
- A: on that sprayer you can go up to a 50' of hose if needed. It's a 3/8" ID, 1-Brd hose.a year agoHelpful?
Q: When not spraying does the pump run to circulate and mix contents of the sprayer like the one I have on my 25gl tank
a year ago1 Answer
- A: Johnny, once you stop spraying an all discharges are closed, the pump will build to the pressure it's rated for and shut off, until you either open a discharge or you squeeze the trigger on the spray gun to start spraying again.a year agoHelpful?
Q: I’d like to buy a boom sprayer for this unit is there one available??
2 years ago1 Answer
- A: You could attach the BK005HM or the BK007HM if you have a receiver mount to use, as these kits have a hitch mount that will fit a standard 2" receiver. Also, you could attach a BK005 or BK007, which are booms only, you would need to get the brackets separately to attach one of these booms to the tank, similar to the UTV models.2 years agoHelpful?
Q: Could i swap the hand gun for a different one? What kind of connection is it to the hand gun?
2 years ago1 Answer
- A: Hi, Here is the information we received from our vendor- "Yes the hand wands can be changed out. Most hand wands have a 3/8” hose barb connection used in conjunction with a stainless steel hose clamp. Thank you"2 years agoHelpful?
Q: Does this accept the garden hose connection for the WorkHorse hitch mounted boom? Also, what are the plug and play pump upgrades that work with this unit?
2 years ago1 Answer
- A: Hi there, Yes, this does accept the garden hose connection for the Work Horse hitch mount boom. I don’t understand the plug and play question so I will say there are not upgrades in regards to plug and play.2 years agoHelpful?
Q: Can I put a longer hose on this?
5 years ago1 Answer
- A: Yes, you can.5 years agoHelpful?
Q: Does it have a bottom drain. And a filter
5 years ago1 Answer
- A: Yes, it has a bottom drain.5 years agoHelpful?
Q: Is there an adapter kit that can be purchased to plug into 12volt plug in my truck ?
5 years ago1 Answer
- A: Hi, thank you for your question. Yes, Tractor Supply has item # 102839499, this is a wiring harness that has the car adapter. According to the website they are $11.99 each. If you have any further questions please feel free to contact our customer service team at 800-654-9808. Thank you!!5 years agoHelpful?
Q: Do you have to buy a battery?
5 years ago1 Answer
- A: The LG40DSS does not come with a battery. It comes with a 96” wiring harness made to hook up to the customers ATV, UTV, or Lawn Tractor’s 12 Volt battery.5 years agoHelpful?

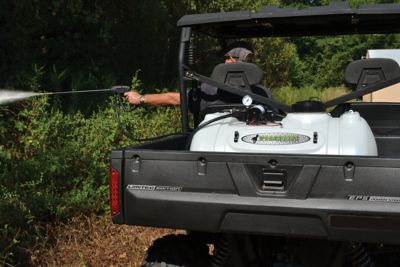

Q: Could this tank be used on the back of an ATV? Picture shows mounted to a UTV. Currently have a 15 gal but would like to upgrade.
6 years ago1 Answer
- A: The LG40DSS, if filled with liquid would exceed normal ATV load capacities. We would recommend the 25 gallon tank for most ATV’s.6 years agoHelpful?
1 - 10 of 17 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 17 Questions
Newest questions
Q: If I want to extend the spray hose by adding an additional 10 to 15 feet, what kind of hose is it so I can buy the right male to male connector, clamps and extra hose?
a year ago1 Answer
- A: on that sprayer you can go up to a 50' of hose if needed. It's a 3/8" ID, 1-Brd hose.a year agoHelpful?
Q: When not spraying does the pump run to circulate and mix contents of the sprayer like the one I have on my 25gl tank
a year ago1 Answer
- A: Johnny, once you stop spraying an all discharges are closed, the pump will build to the pressure it's rated for and shut off, until you either open a discharge or you squeeze the trigger on the spray gun to start spraying again.a year agoHelpful?
Q: I’d like to buy a boom sprayer for this unit is there one available??
2 years ago1 Answer
- A: You could attach the BK005HM or the BK007HM if you have a receiver mount to use, as these kits have a hitch mount that will fit a standard 2" receiver. Also, you could attach a BK005 or BK007, which are booms only, you would need to get the brackets separately to attach one of these booms to the tank, similar to the UTV models.2 years agoHelpful?
Q: Could i swap the hand gun for a different one? What kind of connection is it to the hand gun?
2 years ago1 Answer
- A: Hi, Here is the information we received from our vendor- "Yes the hand wands can be changed out. Most hand wands have a 3/8” hose barb connection used in conjunction with a stainless steel hose clamp. Thank you"2 years agoHelpful?
Q: Does this accept the garden hose connection for the WorkHorse hitch mounted boom? Also, what are the plug and play pump upgrades that work with this unit?
2 years ago1 Answer
- A: Hi there, Yes, this does accept the garden hose connection for the Work Horse hitch mount boom. I don’t understand the plug and play question so I will say there are not upgrades in regards to plug and play.2 years agoHelpful?
Q: Can I put a longer hose on this?
5 years ago1 Answer
- A: Yes, you can.5 years agoHelpful?
Q: Does it have a bottom drain. And a filter
5 years ago1 Answer
- A: Yes, it has a bottom drain.5 years agoHelpful?
Q: Is there an adapter kit that can be purchased to plug into 12volt plug in my truck ?
5 years ago1 Answer
- A: Hi, thank you for your question. Yes, Tractor Supply has item # 102839499, this is a wiring harness that has the car adapter. According to the website they are $11.99 each. If you have any further questions please feel free to contact our customer service team at 800-654-9808. Thank you!!5 years agoHelpful?
Q: Do you have to buy a battery?
5 years ago1 Answer
- A: The LG40DSS does not come with a battery. It comes with a 96” wiring harness made to hook up to the customers ATV, UTV, or Lawn Tractor’s 12 Volt battery.5 years agoHelpful?
Q: Could this tank be used on the back of an ATV? Picture shows mounted to a UTV. Currently have a 15 gal but would like to upgrade.
6 years ago1 Answer
- A: The LG40DSS, if filled with liquid would exceed normal ATV load capacities. We would recommend the 25 gallon tank for most ATV’s.6 years agoHelpful?
1 - 10 of 17 Questions
Similar Items
Items You May Like
-
Top Rated
-
-
-
-
Top Rated
-
-
-
-
Top Rated
-
-
Top Rated
-
Reviews
1 to 4 of 36 Reviews .
1 – 4 of 36 Reviews
Most Recent
Review 1
5 out of 5 stars.
Not happy !
a year ago
May have to cancel my order, can't seem to get it delivered !!!!!!!!!!!
No, I do not recommend this product.
Response from Fimco Industries:
a year ago
Fimco Industries
Sorry you're having that issue. Not sure what's going on. Please contact our customer service team at 888-433-6631 and they can do some checking on it for you. I see two currently in the hands of the trucking company, one sitting at their Little Rock AR Service Center with delivery pending and the other at their Fresno CA Service Center, showing estimated delivery of today 10/1. Not sure where you're located. I don't show any other orders that are currently being fulfilled for Tractor Supply.
Missouri
Reviews 4
5 out of 5 stars.
Would buy again.
a year ago
Works well. Heavy duty.
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
a year ago
Fimco Industries
Thank you for your purchase of the Workhorse 40-gallon spot sprayer. Happy to hear that it's working well for you and your spraying needs.
arkansas
Review 1
5 out of 5 stars.
sprayer
2 years ago
Great product for the price.
2023 Sweepstakes EntryYes
Yes, I recommend this product.
NY
Review 1
1 out of 5 stars.
Don't buy
4 years ago
I used it one time to spray water and tick spray. When I attempted to use it again pump is froze solid and blew fuse. I suspect pumps contain steel parts that rust quickly. Manufacturing process drills hole in tank, but never removes the debris from drilling. I vacuumed mine out fist thing.
No, I do not recommend this product.
