WorkHorse Sprayers 60 gal. 1-Nozzle Manual 12V UTV Spot Sprayer with Pump and Bed Mounts
WorkHorse Sprayers 60 gal. 1-Nozzle Manual 12V UTV Spot Sprayer with Pump and Bed Mounts
Item # 163711099
$619.99
or
or
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
WorkHorse Sprayers 60 gal. 1-Nozzle Manual 12V UTV Spot Sprayer with Pump and Bed Mounts
Item # 163711099
$619.99
or
or
$52/mo.† suggested payments with 12 Months Financing or earn $30 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The WorkHorse Sprayers 60 gal. 1-Nozzle Manual 12V UTV Spot Sprayer with Pump and Bed Mounts is the perfect choice for weed control for food plots, gardens, driveways, ditches, ponds, pastures, orchards and more. The handgun included with the UTV spot sprayer comes with an adjustable spray nozzle, allowing you to choose your spray path or be spot on with your treatment. The spot sprayer is also RoundUp-ready and chemical-resistant for durability. From farms to large properties, this spot sprayer makes easy work of treating your outdoor areas.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.

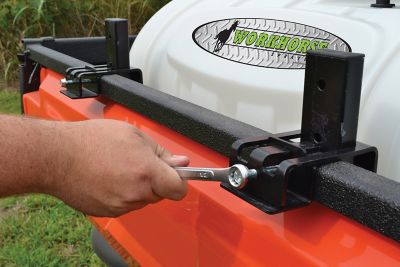

- UTV universal bed mounts included with the UTV sprayer for installation
- Backed by a 1-year limited warranty on the spot sprayer
- Durable polyethylene 60 gal. tank on the spot sprayer for convenience
- 12V pump with 2.2 GPM or 5.0 GPM pumps
- 18 in. spray wand with an adjustable spray nozzle
- 3/8 in. PVC reinforced spray hose included with the tow-behind sprayer
- Heavy-duty manifold design for durability
- 8 ft. universal spot sprayer wiring harness
- UTV spot sprayer is RoundUp-ready and chemical-resistant for durability
- Ideal for spraying food plots, gardens, driveways, ditches, ponds, pastures and orchards
- 35 ft. maximum horizontal spray; 25 ft. maximum vertical spray
- Designed to be mounted on any standard 2 in. receiver hitch
- Adjustable 'Z' pattern arrangement for easy use
| Brand | WorkHorse Sprayers |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 20 in |
| Boom Nozzle Count | No Boom |
| Chemical Compatibility | Fertilizer |
| Features | Handgun Included |
| Hose Diameter | 3/8 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 5 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Bracket |
| Power Type | 12 Volt |
| Product Height | 33.5 in. |
| Product Length | 40 in. |
| Product Weight | 75 lb. |
| Product Width | 32.5 in. |
| Pump Type | Diaphragm |
| Spray Method | Spot Spraying |
| Tank Material | Polyethylene |
| Warranty | 1 Year |
| Manufacturer Part Number | G23-UTV65 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 12 Questions
Newest questions
Q: I asked the last question about adding a 2 nozzle boom. I do not think your answer was correct. Model #136231899 is the exact same thing with exact same pump. So why would the motor be too strong?
6 months ago1 Answer
- A: Yes, you can absolutely add a 2-nozzle boom to the WorkHorse Sprayers G23-UTV65. The 5.0 GPM pump is not "too strong" because it features a pressure-demand switch that automatically manages the flow based on what you are using. The manufacturer officially lists this model as "Boom Ready," specifically intended for users to add boom kits later.6 months agoHelpful?
Q: Model #163711099 I see this is a spot sprayer. Does it have the three valves so that I can add a 2 nozzle boom to it as well?
6 months ago1 Answer
- A: This sprayer does have a manifold that would allow you to connect to a boom. Current configuration on the manifold on this sprayer is one line is running to the spray wand, the center one runs to the bypass back into the tank to adjust pressure being sprayed and the third connection is capped off, that would typically be the boom connection. However, the size of the pump on this sprayer would be too large for a 2-nozzle boom. It would be recommended to use a 5 or 7-nozzle boom.6 months agoHelpful?
Q: I am using this tank and pump to water a garden and several flower plots. It keeps blowing the fuses and I keep putting new ones in. The pump will not run for more than maybe 45 minutes at a time before the fuse blows. Why does this keep happening?????
2 years ago1 Answer
- A: Cari, is it blowing the 15 amp fuse on the lead wire? Could be a faulty pressure switch or even a bad lead wire causing the issue. Please contact our customer service team at 800-831-0027 and they can help you troubleshoot the issue.2 years agoHelpful?
Q: DOES THIS SPRAYER HAVE AGITATION?
3 years ago1 Answer
- A: Hi, This unit does not have agitation.3 years agoHelpful?
Q: Does this tank have a connection for a boom that I purchased through TSC also?
4 years ago1 Answer
- A: Hi Diesel2day, This tank comes equipped with a 7 nozzle folding hitch mount boom. Without knowing the item name and/or product number of the boom you purchased previously, I would not be able to say if it would fit this item.4 years agoHelpful?
Q: Spraying tank dimensions
4 years ago1 Answer
- A: Tank Capacity 60 gal.4 years agoHelpful?
Q: Would the battery in a John Deere 6x4 gator be sufficient for pump
4 years ago1 Answer
- A: Works with UTV's.4 years agoHelpful?
Q: What type of 12 volt battery is recommended for this pump? It says utv and lawn tractor are not recommended.
Anonymous4 years ago1 Answer
- A: Electrical: 1. The PowerFlo™ series pumps are designed for intermittent duty. Make sure that “OFF” periods are sufficient. Refer to Rapid ON/OFF Operation. Consult the factory for particular data and design criteria. 2. Be sure power supply used is adequate for the application. 3. Pump and motor specifications are based on an alternator charged battery (13.7 VDC) 4. Use sufficient battery supply power. UTV and lawn tractor batteries may affect pump performance due to low voltage and amp ratings.4 years agoHelpful?
Q: How do you specify that you want the 5 GPM pump and not the 2.2GPM pump?
5 years ago1 Answer
- A: This is a 5 GPM pump.5 years agoHelpful?
Q: how long is the hose
5 years ago1 Answer
- A: Hose Length : 25 ft.5 years agoHelpful?
1 - 10 of 12 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 12 Questions
Newest questions
Q: I asked the last question about adding a 2 nozzle boom. I do not think your answer was correct. Model #136231899 is the exact same thing with exact same pump. So why would the motor be too strong?
6 months ago1 Answer
- A: Yes, you can absolutely add a 2-nozzle boom to the WorkHorse Sprayers G23-UTV65. The 5.0 GPM pump is not "too strong" because it features a pressure-demand switch that automatically manages the flow based on what you are using. The manufacturer officially lists this model as "Boom Ready," specifically intended for users to add boom kits later.6 months agoHelpful?
Q: Model #163711099 I see this is a spot sprayer. Does it have the three valves so that I can add a 2 nozzle boom to it as well?
6 months ago1 Answer
- A: This sprayer does have a manifold that would allow you to connect to a boom. Current configuration on the manifold on this sprayer is one line is running to the spray wand, the center one runs to the bypass back into the tank to adjust pressure being sprayed and the third connection is capped off, that would typically be the boom connection. However, the size of the pump on this sprayer would be too large for a 2-nozzle boom. It would be recommended to use a 5 or 7-nozzle boom.6 months agoHelpful?
Q: I am using this tank and pump to water a garden and several flower plots. It keeps blowing the fuses and I keep putting new ones in. The pump will not run for more than maybe 45 minutes at a time before the fuse blows. Why does this keep happening?????
2 years ago1 Answer
- A: Cari, is it blowing the 15 amp fuse on the lead wire? Could be a faulty pressure switch or even a bad lead wire causing the issue. Please contact our customer service team at 800-831-0027 and they can help you troubleshoot the issue.2 years agoHelpful?
Q: DOES THIS SPRAYER HAVE AGITATION?
3 years ago1 Answer
- A: Hi, This unit does not have agitation.3 years agoHelpful?
Q: Does this tank have a connection for a boom that I purchased through TSC also?
4 years ago1 Answer
- A: Hi Diesel2day, This tank comes equipped with a 7 nozzle folding hitch mount boom. Without knowing the item name and/or product number of the boom you purchased previously, I would not be able to say if it would fit this item.4 years agoHelpful?
Q: Spraying tank dimensions
4 years ago1 Answer
- A: Tank Capacity 60 gal.4 years agoHelpful?
Q: Would the battery in a John Deere 6x4 gator be sufficient for pump
4 years ago1 Answer
- A: Works with UTV's.4 years agoHelpful?
Q: What type of 12 volt battery is recommended for this pump? It says utv and lawn tractor are not recommended.
Anonymous4 years ago1 Answer
- A: Electrical: 1. The PowerFlo™ series pumps are designed for intermittent duty. Make sure that “OFF” periods are sufficient. Refer to Rapid ON/OFF Operation. Consult the factory for particular data and design criteria. 2. Be sure power supply used is adequate for the application. 3. Pump and motor specifications are based on an alternator charged battery (13.7 VDC) 4. Use sufficient battery supply power. UTV and lawn tractor batteries may affect pump performance due to low voltage and amp ratings.4 years agoHelpful?
Q: How do you specify that you want the 5 GPM pump and not the 2.2GPM pump?
5 years ago1 Answer
- A: This is a 5 GPM pump.5 years agoHelpful?
Q: how long is the hose
5 years ago1 Answer
- A: Hose Length : 25 ft.5 years agoHelpful?
1 - 10 of 12 Questions
Similar Items
Reviews
1 to 4 of 13 Reviews .
1 – 4 of 13 Reviews
Most Recent
Boonville Indiana
Review 1
4 out of 5 stars.
Good sprayer
a year ago
Easy to assemble and works as designed. I would gladly pay more if it had metal manifold and valves. This is the second sprayer I have purchased. First one lasted for 5 years with moderate use.
SweepstakesYes
Response from Fimco Industries:
a year ago
Fimco Industries
Thank you for your purchase of the Workhorse 60-gallon sprayer from Tractor Supply. Glad you are pleased with the sprayer and it's working to your expectations.
Southeast Missouri
Review 1
5 out of 5 stars.
workhorse 60 gal. sprayer
a year ago
Fairly light weight, sturdy and easy to install on my atv . sprayer has a very good range with the hand held wand. there was a small leak in the manifold that tractor supply replaced with no issues. this is perfect for small farms.
Yes, I recommend this product.
Response from Fimco Industries:
a year ago
Fimco Industries
Thank you for your purchase of the Workhorse 60-gallon spot sprayer. Glad you're happy with your new sprayer and that it's working well for you.
Stonewall, La
Review 1
3 out of 5 stars.
Very low pressure and leaks
4 years ago
There is very little pressure coming out of the hose and where you drain it at, leaks.
No, I do not recommend this product.
FL
Reviews 4
4 out of 5 stars.
Great Sprayer
5 years ago
I'm happy with the product, but I was under the impression that it also included the boom sprayer. I'm disappointed it did not include the boom sprayer for the price.
Yes, I recommend this product.
