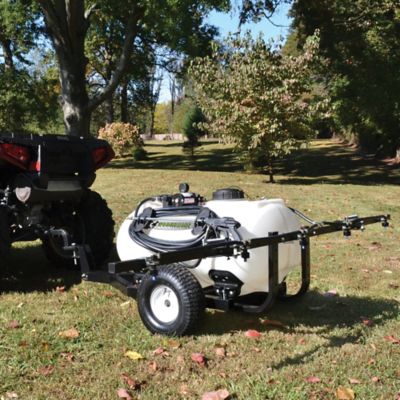

WorkHorse Sprayers 40 gal. Trailer Sprayer 5-Nozzle Boom, LG425DTS

SKU: 136231599
WorkHorse Sprayers 40 gal. Trailer Sprayer 5-Nozzle Boom, LG425DTS
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
No ratings found


TSC of  #

TSC of  #

TSC of  #

TSC of  #

Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

Ideal for Property Management: Gardens, Driveways, Ditches, Ponds, Pastures and Orchards.

  • 2.2 GPM Demand Pump
  • 5 Nozzle Folding Boom System
  • 25ft 3/8 inch Hose
  • Deluxe Pistol Grip Handgun sprays up to 25ft Vertical and 35ft Horizontal
  • Molded Wand Clips
  • 5 inch Fill Lid with Tether
  • 8ft Wiring Harness with Battery Clips

Specification Description
Additional Item(s) Included: N/A
Product Weight: 120 lb.
Maximum Flow Rate: 2.2 GPM
CountryofOrigin: Made in USA
Part Number: LG425DTS
Tank Material: Polyethylene
Special Feature(s): 5 Nozzle Folding Boom System
Connection Type: N/A
Voltage: 12 V
Brand: WorkHorse Sprayers
Number of Nozzles: 5
Application/Use: Agricultural Trailer Sprayer with Boom
Boom Material: Steel
Hose Diameter: 3/8 in.
Product Height: 34 in.
Product Length: 42 in.
Hose Length: 25 ft.
Maximum Horizontal Throw: 35 ft.
Maximum Operating Pressure: 0 - 60 PSI
Maximum Vertical Throw: 25 ft.
Boom Width: 90 in.
Product Width: 34 in.
Recommended Chemicals: Ag Chemicals
Swath: 100 in.
Tank Capacity: 40 gal.
Manufacturer Part Number LG425DTS

Are the nozzels individually adjustable from zero spray to maximum?

Asked by: KenBC
No, the nozzles are either on or off and are not adjustable.
Answered by: NRoberts
Date published: 2019-08-31

Does this sprayer have an agitator in the tank

Asked by: Slammin
It has a bypass valve that releases liquid back into the tank which agitates the content.
Answered by: MitchellW
Date published: 2019-08-31

Are the booms breakaway booms and are the spray tips dripless ?

Asked by: wdeeda
Yes the booms are breakaway and there is a dripless check valve at each nozzle location to make the nozzle dripless.
Answered by: NRoberts
Date published: 2020-03-29

Are the nozzles replaceable with different spray pattern nozzles? Are replacement parts readily available for this sprayer and trailer? What size tires are on the trailer?

Asked by: KenBC
The nozzles are replaceable. Replacement parts can be ordered via Special Order from your local TSC store. The tire's size on the trailer is 15" 6.00/6 pneumatic.
Answered by: NRoberts
Date published: 2019-08-31

Can this sprayer be used to just water plantings?

Asked by: fjewett
Yes, this sprayer can be used for watering plants.
Answered by: MitchellW
Date published: 2020-02-04

Is be boom height adjustable? If so, what is the min and max heights?

Asked by: KenBC
The boom height is adjustable, with the maximum height being 22" and the minimum height being 16".
Answered by: NRoberts
Date published: 2020-04-07

are the wheels no flat tires

Asked by: slambo
The wheels are not no flat.
Answered by: SamW
Date published: 2019-08-31
