Weasler 42 in. BYPY 5 Series Metric Driveline
Weasler 42 in. BYPY 5 Series Metric Driveline
Item # 270108499
$519.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$519.99
or
or
$44/mo.† suggested payments with 12 Months Financing or earn $25 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

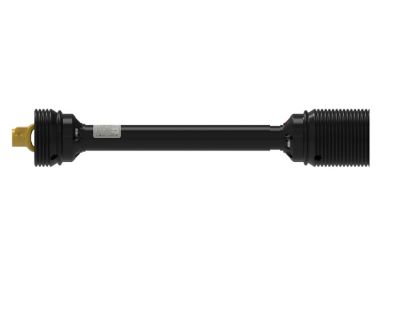

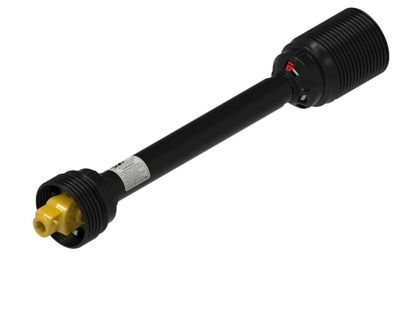

The Weasler 42 in. BYPY 5 Series Metric Driveline provides reliable service with durable construction. The convenient design of the drive shaft is a complete assembly for easy installation and maintenance. The driveline is designed for continuous heavy-duty all-purpose use so it can meet the requirements of large farms and contractors.
- BYPY 5 series driveline is a top choice in the agriculture and lawn and turf industries

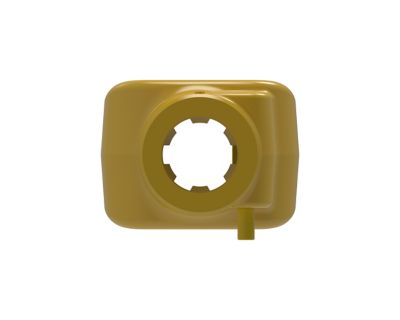

- Features a 1-3/8 in., 6 spline quick disconnect tractor connection and a 1-3/8 in. round pin implement connection
- Designed for large farms and contractors
- Design adjustability (cut-to-length) capabilities offer versatility
- Features a cast iron collar and a through-bore to keep debris from collecting inside
- Interchangeable with other Weasler yokes and most standard yokes (sold separately)
- Easy lock guard system provides full coverage at maximum angles, a full 360 degree friction weld on the guard bell, and black coloring that is durable against ultraviolet light and ozone
- Guard system is cold weather impact rated to -35 degrees C, meets and exceeds all applicable safety standards and ensures a quick and easy process for removal and installation
- Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours (sold separately)
- High temperature triple lip seal retains grease better
- Cross and bearing kit manufactured with high-quality steel for increased strength, high torque capacity and longer life; standard kits can be upgraded to or interchanged with E-Kits (sold separately)
- Compressed closed length is 33.86 in. while the extended length is 51.26 in. and the extended overall length is 59.84 in.
- Operates at 81 HP/60 kilowatts at 1000RPM or 52 HP/39 kilowatts at 540RPM for efficiency
- Hollow Tri-Lobe female shaft to accommodate your equipment
- Outside diameter of the drive shaft is 7.36 in. with a weight of 24 lb.
| Brand | Weasler |
|---|---|
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Model Compatibility | Tractors, Implements |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 7.36 in. |
| Product Length | 42 in. |
| Product Weight | 34 lb. |
| Product Width | 7.36 in. |
| Tractor PTO Part Type | Drivelines |
| Manufacturer Part Number | 14006542 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: Is this the correct replacement for a Countyline 5’ bush hog mower?
8 months ago1 Answer
- A: Hi Neighbor! We recommend speaking to the manufacturer to confirm this would be a compatible part.8 months agoHelpful?
Q: Is this compatible to a john deer 5055E
8 months ago1 Answer
- A: Hi Neighbor! The Weasler 42 in. BYPY 5 Series Metric Driveline is likely not a direct fit for a John Deere 5055E without modifications. Modifications will void the warranty on the product.8 months agoHelpful?
Q: Does this take a shear pin?
6 years ago1 Answer
- A: No this D/L has QD yokes on both ends.6 years agoHelpful?
Q: What is the horsepower rating
7 years ago1 Answer
- A: 52 HP7 years agoHelpful?
Q: Ok, max length is 42”, what’s the minimum length?
8 years ago1 Answer
- A: The minimum length is also 42". You can cut off equal amounts of each end to shorten.8 years agoHelpful?
