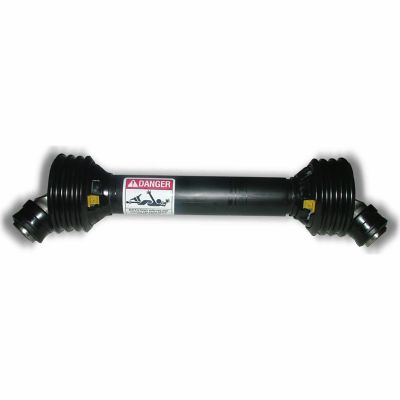

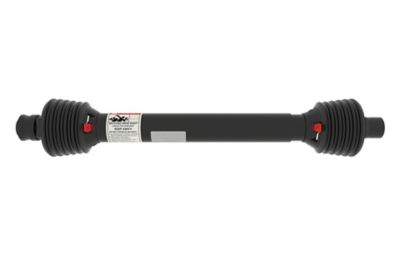

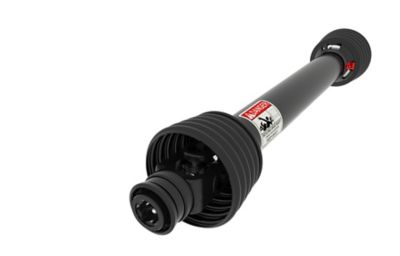

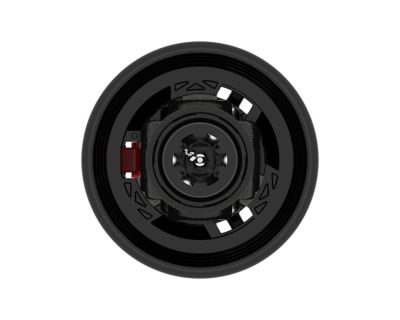

Weasler 56 in. 14 Series North American Driveline
Weasler 56 in. 14 Series North American Driveline
Item # 27161999
Stocked & Ready
$699.99
or
or
Neighbor’s Club Members earn points with purchases.
$699.99
or
or
$59/mo.† suggested payments with 12 Months Financing or earn $34 in Rewards+ on this purchase.
Out of stock at
Grassland (franklin) TN
Delivery to
Pickup Nearby at FRANKLIN TN(6.7) miles FREE
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Weasler 56 in. 14 Series North American Driveline provides reliable service with durable construction. The convenient design of the drive shaft is a complete assembly for easy installation and maintenance. The driveline is designed for continuous heavy-duty all-purpose use so it can meet the requirements of large farms and contractors.
- 14 series driveline is a top choice in the agriculture and lawn and turf industries
- Features a 1-3/8 in., 6 spline spring-lok tractor connection and a 1-3/8 in. round 1/2 shear pin hole implement connection
- Designed for large farms and contractors
- Design adjustability (cut-to-length) capabilities offer versatility
- Features a cast iron collar and a through-bore to keep debris from collecting inside
- Interchangeable with other Weasler yokes and most standard yokes (sold separately)
- Easy lock guard system provides full coverage at maximum angles, a full 360 degree friction weld on the guard bell, and black coloring that is durable against ultraviolet light and ozone
- Guard system is cold weather impact rated to -35 degrees C, meets and exceeds all applicable safety standards and ensures a quick and easy process for removal and installation
- Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours (sold separately)
- High temperature triple lip seal retains grease better
- Cross and bearing kit manufactured with high-quality steel for increased strength, high torque capacity and longer life; standard kits can be upgraded to or interchanged with E-Kits (sold separately)
- Compressed closed length is 48 in. while the extended length is 68.25 in. and the extended overall length is 76.87 in.
- Operates at 48 HP/26 kilowatts at 1000RPM or 28 HP/21 kilowatts at 540RPM for efficiency
- Features a 1 in. x 1-1/8 in. solid rectangle female spline and a square 1 in. x 1-1/8 in. male shaft to accommodate your equipment
- Outside diameter of the drive shaft is 7.31 in. with a weight of 30.16 lb.
| Brand | Weasler |
|---|---|
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Model Compatibility | Tractors, Implements |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 7.31 in. |
| Product Length | 56 in. |
| Product Weight | 30.16 lb. |
| Product Width | 7.31 in. |
| Tractor PTO Part Type | Drivelines |
| Manufacturer Part Number | 14001406 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: Will this work with a Bush Hog SQ 720 rotary cutter?
2 years ago1 Answer
- A: This part is universal: Features a 1 in. x 1-1/8 in. solid rectangle female spline and a square 1 in. x 1-1/8 in. male shaft to accommodate your equipment2 years agoHelpful?
Q: Will this work with a Rhino TS12 batwing mower? Is it possible to buy just the driveline shield?
5 years ago1 Answer
- A: For additional product support, please contact +1 (262) 338 2161.5 years agoHelpful?
Q: will this work on a 1947 ford 8n with post hole attachment
5 years ago1 Answer
- A: The manufacturer would need to know what the current drive shaft is and how it compares to the 14001406.5 years agoHelpful?
Q: Will this work on a 1745 Massey hay roller?
6 years ago1 Answer
- A: Please see the manufacturer's response as follows. The lengths of the machine’s current drive shaft would need to be compared to that of the drive shaft being looked at. We cannot find a specific call out on any drive shaft we make for Massey (Agco) that lists a 1745 or even a 1700 series baler. Our book listing shows the 14001406 to have an overall compressed length of 56.19”, this would need to be compared to your current drive shaft.6 years agoHelpful?
Q: Will this work on a 6 foot county line brush hog ?
7 years ago1 Answer
- A: We are unable to cross reference without the model # of the brush hog, but the manufacturer advised that the horsepower is 28.6 years agoHelpful?
Q: what size are the grease zerts and are they metric or standard
7 years ago1 Answer
- A: The cross kits zerks are a .125 PTF special short thread, the Lincoln part number is #5300. The slip sleeve zerk is a drive lube style, gets pushed in - no threads, the Lincoln part number is #700375.6 years agoHelpful?
Q: Maximum extended length?
7 years ago1 Answer
- A: The max operation is 68”.7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: Will this work with a Bush Hog SQ 720 rotary cutter?
2 years ago1 Answer
- A: This part is universal: Features a 1 in. x 1-1/8 in. solid rectangle female spline and a square 1 in. x 1-1/8 in. male shaft to accommodate your equipment2 years agoHelpful?
Q: Will this work with a Rhino TS12 batwing mower? Is it possible to buy just the driveline shield?
5 years ago1 Answer
- A: For additional product support, please contact +1 (262) 338 2161.5 years agoHelpful?
Q: will this work on a 1947 ford 8n with post hole attachment
5 years ago1 Answer
- A: The manufacturer would need to know what the current drive shaft is and how it compares to the 14001406.5 years agoHelpful?
Q: Will this work on a 1745 Massey hay roller?
6 years ago1 Answer
- A: Please see the manufacturer's response as follows. The lengths of the machine’s current drive shaft would need to be compared to that of the drive shaft being looked at. We cannot find a specific call out on any drive shaft we make for Massey (Agco) that lists a 1745 or even a 1700 series baler. Our book listing shows the 14001406 to have an overall compressed length of 56.19”, this would need to be compared to your current drive shaft.6 years agoHelpful?
Q: Will this work on a 6 foot county line brush hog ?
7 years ago1 Answer
- A: We are unable to cross reference without the model # of the brush hog, but the manufacturer advised that the horsepower is 28.6 years agoHelpful?
Q: what size are the grease zerts and are they metric or standard
7 years ago1 Answer
- A: The cross kits zerks are a .125 PTF special short thread, the Lincoln part number is #5300. The slip sleeve zerk is a drive lube style, gets pushed in - no threads, the Lincoln part number is #700375.6 years agoHelpful?
Q: Maximum extended length?
7 years ago1 Answer
- A: The max operation is 68”.7 years agoHelpful?
Similar Items
-
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Items You May Like
-
-
-
-
-
-
-
-
-
-
-
-
Top Rated
Customers Also Bought
-
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
-
-
Top Rated
Reviews
- compatibility
- for hot weather
- purchase
1 to 4 of 38 Reviews .
1 – 4 of 38 Reviews
Most Recent
Delhi N.Y.
Review 1
3 out of 5 stars.
Great purchase
a year ago
I purchased off the clearance table , so the price was great it fit on my brush hog , Great !
SweepstakesYes
Yes, I recommend this product.
Lafayette Louisiana
Reviews 2
5 out of 5 stars.
Weasler Shaft
2 years ago
Quality tool. Works well.
2023 Q4 SweepstakesYes
Yes, I recommend this product.
Southern Louisiana
Reviews 2
5 out of 5 stars.
Heavy Duty
3 years ago
I have a Mahindra 4110 with a King Kutter 6 ft rotary cutter. This was the closest I could find to the size I needed. It is slightly too long so I had to cut some of the shaft and it barely made it short enough to work. Keep in mind though, if you had to remove 4 inches or more, you are out of luck. If your tractor will take a shaft that compresses down to this level or more, it is a good shaft.
Sweepstakes EntryYes
Yes, I recommend this product.
Reviews 2
1 out of 5 stars.
Weasler drive shaft
3 years ago
The quality is poor, one of the u-joint caps was split
