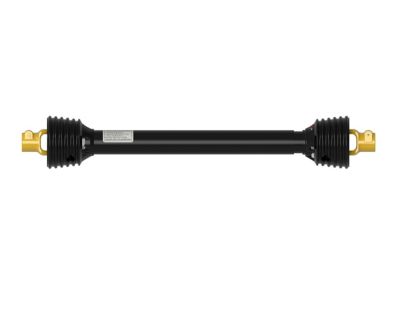

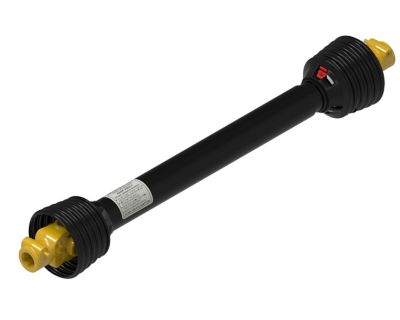

Weasler Metric Driveline, BYPY 3 Series

Enter Zip Code for price More Info

Sale Save Up To

See price at checkout

Financing Available Learn More

The Weasler 14006340 Metric Driveline provides reliable service with durable construction. Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn and turf industries. These tractor PTO shafts are complete assemblies from tractor to implement. The metric drive shafts are designed for continuous heavy-duty all-purpose use and meet the requirements of large farms and contractors.

  • Weasler BYPY 3 Series metric drive shafts are a top choice in the agriculture and lawn and turf industries
  • Length: 40 in.
  • PTO drive shaft features a 1-3/8 in., 6 spline quick disconnect connection on both ends for ease of use
  • Designed for large farms and contractors
  • Design adjustability (cut-to-length) capabilities offer versatility
  • Tractor PTO shaft supports interchangeability to fit with most competitor models (sold separately)
  • Easy lock guard system provides full coverage at maximum angles, a full 360 degree friction weld on the guard bell, and black coloring that is durable against ultraviolet light and ozone
  • Guard system is cold weather impact rated to -35 degrees C, meets and exceeds all applicable safety standards and ensures a quick and easy process for removal and installation
  • Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours (sold separately)
  • High temperature triple lip seal retains grease better

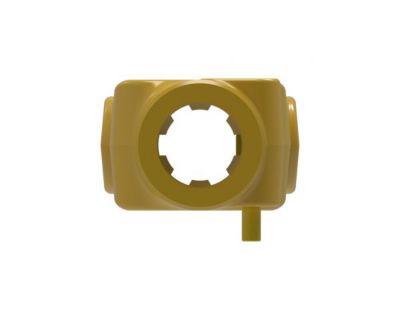

  • Yoke features a cast iron collar and a through-bore to keep debris from collecting inside
  • Yoke is interchangeable with other Weasler yokes and most standard yokes (sold separately)
  • Cross and bearing kit manufactured with high-quality steel for increased strength, high torque capacity and longer life; standard kits can be upgraded to or interchanged with E-Kits (sold separately)
  • Compressed (closed) length: 31.89 in./810 mm
  • Extended length: 48.94 in./1243 mm; extended overall length: 56.98 in./1447 mm
  • 44 HP/33 kilowatts @ 1000RPM; 29 HP/22 kilowatts @ 540RPM
  • Outside diameter: 6 in./152 mm
  • Weight: 22 lb./10 kilograms
  • Hollow Tri-Lobe female shaft to accommodate your equipment

Additional Product Information
The quantity requested exceeds available inventory.
Store:  Change Store
Please lower quantity or check availability at nearby stores
Check availability at nearby stores
Call Store for availability or check availability at nearby stores
Curbside / Pickup In Store
Items Shipped to Store may incur freight charge.
 Available for Pickup Today
Check availability at nearby stores

Curbside / Pickup In Store

  Change Store Item is currently not available for Pickup at this store. Check availability at nearby stores

Standard Delivery

Item is not eligible for Standard Delivery.

Standard Delivery

Item is currently not available for Standard Delivery. Check other delivery options.

Same Day Delivery

Item is currently not available for Same Day Delivery. Check other delivery options.
Curbside / Pickup and Delivery Information Click here for more details...
Add to list

Product Details

The Weasler 14006340 Metric Driveline provides reliable service with durable construction. Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn and turf industries. These tractor PTO shafts are complete assemblies from tractor to implement. The metric drive shafts are designed for continuous heavy-duty all-purpose use and meet the requirements of large farms and contractors.

  • Weasler BYPY 3 Series metric drive shafts are a top choice in the agriculture and lawn and turf industries
  • Length: 40 in.
  • PTO drive shaft features a 1-3/8 in., 6 spline quick disconnect connection on both ends for ease of use
  • Designed for large farms and contractors
  • Design adjustability (cut-to-length) capabilities offer versatility
  • Tractor PTO shaft supports interchangeability to fit with most competitor models (sold separately)
  • Easy lock guard system provides full coverage at maximum angles, a full 360 degree friction weld on the guard bell, and black coloring that is durable against ultraviolet light and ozone
  • Guard system is cold weather impact rated to -35 degrees C, meets and exceeds all applicable safety standards and ensures a quick and easy process for removal and installation
  • Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours (sold separately)
  • High temperature triple lip seal retains grease better
  • Yoke features a cast iron collar and a through-bore to keep debris from collecting inside
  • Yoke is interchangeable with other Weasler yokes and most standard yokes (sold separately)
  • Cross and bearing kit manufactured with high-quality steel for increased strength, high torque capacity and longer life; standard kits can be upgraded to or interchanged with E-Kits (sold separately)
  • Compressed (closed) length: 31.89 in./810 mm
  • Extended length: 48.94 in./1243 mm; extended overall length: 56.98 in./1447 mm
  • 44 HP/33 kilowatts @ 1000RPM; 29 HP/22 kilowatts @ 540RPM
  • Outside diameter: 6 in./152 mm
  • Weight: 22 lb./10 kilograms
  • Hollow Tri-Lobe female shaft to accommodate your equipment

Specifications

Specification Description
Series BYPY 3 Series
Product Length 40 in.
Tractor Yoke Spline Count 6
Implement Yoke Type Interchangeable
Country of Origin Made in USA
Material Steel
Application/Use Agriculture and lawn and turf
Female Shaft Hollow Tri-Lobe
Tube Outer Diameter 1-5/7 in.
Compatibility Tractors, Implements
Tube Diameter 1-5/7 in. (outer); 1-3/7 in. (inner)
Assembly Length 40 in.
Overall Length 40 in.
Part Number 14006340
Tractor Yoke Bore Diameter 1-3/8 in.
Tube Inner Diameter 1-3/7 in.
Implement Yoke Bore Diameter 1-3/8 in.
Series BYPY 3 Series
Brand Weasler
Product Weight 22 lb.
Manufacturer Part Number 14006340

Reviews

Weasler Metric Driveline, BYPY 3 Series is rated 4.4 out of 5 by 44.
Rated 5 out of 5 by from Excellent PTO Drive The drive shaft adjusts easily and the lock pin is easier than most I've used.
Date published: 2020-09-21
Rated 5 out of 5 by from Pricey This shaft seems to be built well, but is way over priced. I was in a pinch and had no other choice but to pay it.
Date published: 2020-07-16
Rated 5 out of 5 by from Great price and service The people at the TSC store in Wharton,Tx was very knowledgeable about the product and very helpful. I was in and out in just 10 minutes. The part I bought works great!
Date published: 2020-02-23

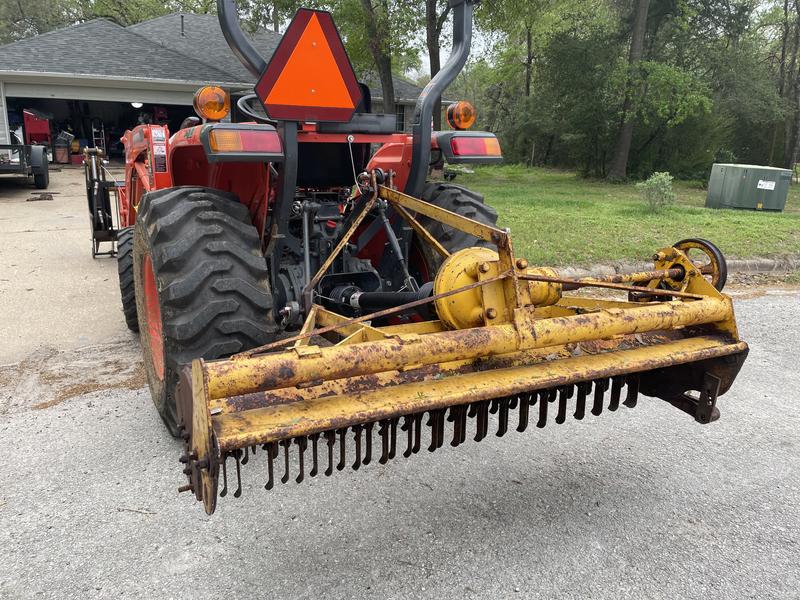

Rated 4 out of 5 by from Very good replacement The shaftis good quality with a safety shield. It replaced an old, broken weld, shaft between a '72 Ford 5000 and a 7' BushHog. It was more than I wanted to spend, but well worth it. I gained a safety shroud & a heavier shaft. Excellent performance.
Date published: 2019-12-25
  • y_2020, m_9, d_27, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_24, tr_20
  • loc_en_US, sid_27132699, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • REVIEWS, PRODUCT

Questions & Answers

Will this shaft fit a 1952 Ford 8N?

Asked by: saddletramp65
Please see the manufacturer's response as follows. The 14006340 is meant to hook between the tractor and the implement. If your customer is looking to fit this into the tractor, it is a good bet that it will not work. As far as connecting to the tractor’s pto, this has a 1.38-6 spline tractor yoke and tractors like the old Ford 8N are only 540 rpms and would have the 1.38-6 spline pto. Your customer then needs to check what the connection on the implement is and if the length of this drive shaft is short or long enough.
Answered by: CodyP
Date published: 2020-09-01

What is the extended length?

Asked by: James Thomas
The max length is 56”.
Answered by: Alicia M
Date published: 2020-08-10
