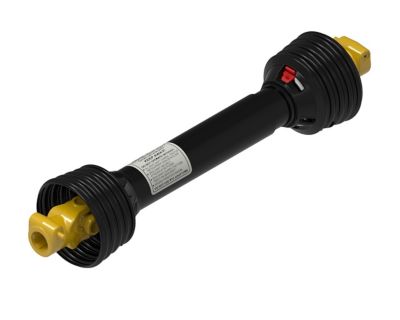

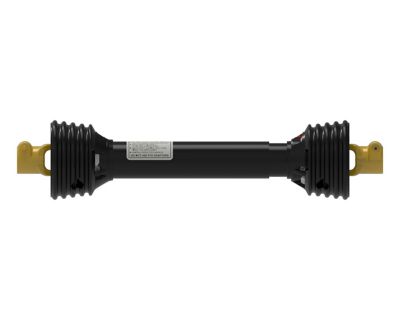

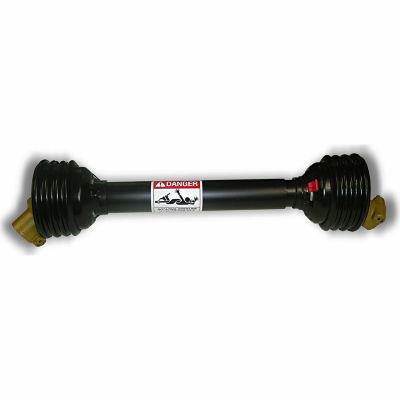

Weasler 27 in. BYPY 1 Series Metric Driveline
Weasler 27 in. BYPY 1 Series Metric Driveline
Item # 27130099
$319.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$319.99
or
or
$54/mo.† suggested payments with 6 Months Financing or earn $15 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Nearby at FRANKLIN TN(6.7) miles Free
Ship to store at Franklin TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Weasler 27 in. BYPY 1 Series Metric Driveline provides reliable service with durable construction. The convenient design of the drive shaft is a complete assembly for easy installation and maintenance. The driveline is designed for continuous heavy-duty all-purpose use and meet the requirements of large farms and contractors.
- BYPY 1 Series metric driveline is a top choice in the agriculture and lawn and turf industries

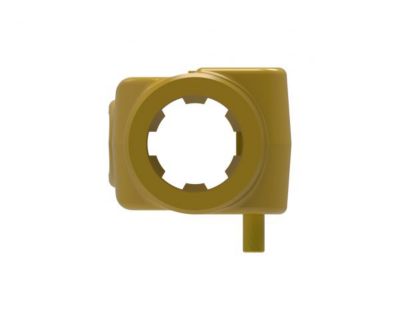

- Features a 1-3/8 in., 6 spline quick disconnect tractor connection and a 1-3/8 in., 6 spline implement connection
- Designed for large farms and contractors
- Design adjustability (cut-to-length) capabilities offer versatility
- Interchangeable with other Weasler yokes and most standard yokes (sold separately)
- Easy lock guard system provides full coverage at maximum angles, a full 360 degree friction weld on the guard bell, and black coloring that is durable against ultraviolet light and ozone
- Guard system is cold weather impact rated to -35 degrees C, meets and exceeds all applicable safety standards and ensures a quick and easy process for removal and installation
- Available extended lubrication E-kits reduce downtime with lubrication intervals of 50 to 250 hours (sold separately)
- High temperature triple lip seal retains grease better
- Features a cast iron collar and a through-bore to keep debris from collecting inside
- Manufactured with high-quality steel for increased strength, high torque capacity and longer life; standard kits can be upgraded to or interchanged with E-Kits (sold separately)
- Compressed length is 27 in. with an extended length of 30 in.
- Operates at 23 HP/17 kilowatts at 1000RPM or 15 HP/11 kilowatts at 540RPM for efficiency
- Outside diameter of the drive shaft is 6 in. with a weight of 11.4 lb.
- Hollow Tri-Lobe female shaft to accommodate your equipment
| Brand | Weasler |
|---|---|
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Model Compatibility | Tractors, Implements |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 27 in. |
| Product Weight | 11.4 lb. |
| Product Width | 6 in. |
| Tractor PTO Part Type | Drivelines |
| Manufacturer Part Number | 14006127 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: Does this have shear pins?
4 months ago1 Answer
- A: Hi Bubbba! This does not include the shear pins.4 months agoHelpful?
Q: What is the maximum length range
9 months ago1 Answer
- A: Hi Neighbor! The maximum overall running length: 37.08 inches.9 months agoHelpful?
Q: will this fit a woods tiller
2 years ago1 Answer
- A: Brand Compatibility Universal2 years agoHelpful?
Q: Does this work for a 18in. Hammermill??? If not what would be the best driveline for it?
5 years ago1 Answer
- A: Unfortunately we do not have the specifications needed to determine whether or not this product will work for the desired application. Please consult your owners manual and contact Weasler Engineering directly at (262) 338-2161.5 years agoHelpful?
Q: so this is 27 inch collapsed what would it be extended?
5 years ago1 Answer
- A: Compressed (Closed) Length 27.00 inches 686 mm Compressed Overall Length 34.08 inches 866 mm Extended Length 30.00 inches 762 mm Extended Overall Length 37.08 inches 942 mm5 years agoHelpful?
Q: what is the next size up from this unit? ineed extended to 42inches. but collapsed 30inches
6 years ago1 Answer
- A: The next series would be a 2.6 years agoHelpful?
Q: It says 27" ... is that collapsed? How much expanded ... what max and min length?
7 years ago1 Answer
- A: 10" more7 years agoHelpful?
Q: Is the spline measurement from spline to spline, or groove to groove? I saw that this is 1 3/8" diameter, but I wasn't sure if that spanned spline to spline, or groove to groove
8 years ago1 Answer
- A: The measurement is from spline to spline.8 years agoHelpful?
Q: what part number do I need for a replacement u joint?
9 years ago1 Answer
- A: For a replacement U joint please see the Weasler Cross & Bearing Kit for Metric 1 Series, BYPY (27075299)9 years agoHelpful?
Q: Does this work on a 4' tiller
10 years ago1 Answer
- A: This product is designed for machinery at 15 horsepower (HP) or lower.10 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: Does this have shear pins?
4 months ago1 Answer
- A: Hi Bubbba! This does not include the shear pins.4 months agoHelpful?
Q: What is the maximum length range
9 months ago1 Answer
- A: Hi Neighbor! The maximum overall running length: 37.08 inches.9 months agoHelpful?
Q: will this fit a woods tiller
2 years ago1 Answer
- A: Brand Compatibility Universal2 years agoHelpful?
Q: Does this work for a 18in. Hammermill??? If not what would be the best driveline for it?
5 years ago1 Answer
- A: Unfortunately we do not have the specifications needed to determine whether or not this product will work for the desired application. Please consult your owners manual and contact Weasler Engineering directly at (262) 338-2161.5 years agoHelpful?
Q: so this is 27 inch collapsed what would it be extended?
5 years ago1 Answer
- A: Compressed (Closed) Length 27.00 inches 686 mm Compressed Overall Length 34.08 inches 866 mm Extended Length 30.00 inches 762 mm Extended Overall Length 37.08 inches 942 mm5 years agoHelpful?
Q: what is the next size up from this unit? ineed extended to 42inches. but collapsed 30inches
6 years ago1 Answer
- A: The next series would be a 2.6 years agoHelpful?
Q: It says 27" ... is that collapsed? How much expanded ... what max and min length?
7 years ago1 Answer
- A: 10" more7 years agoHelpful?
Q: Is the spline measurement from spline to spline, or groove to groove? I saw that this is 1 3/8" diameter, but I wasn't sure if that spanned spline to spline, or groove to groove
8 years ago1 Answer
- A: The measurement is from spline to spline.8 years agoHelpful?
Q: what part number do I need for a replacement u joint?
9 years ago1 Answer
- A: For a replacement U joint please see the Weasler Cross & Bearing Kit for Metric 1 Series, BYPY (27075299)9 years agoHelpful?
Q: Does this work on a 4' tiller
10 years ago1 Answer
- A: This product is designed for machinery at 15 horsepower (HP) or lower.10 years agoHelpful?
