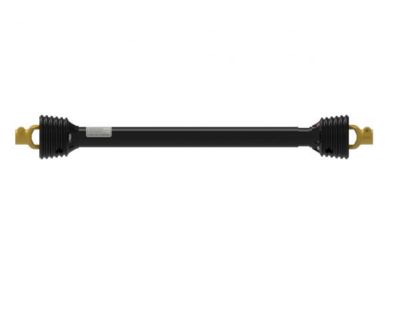

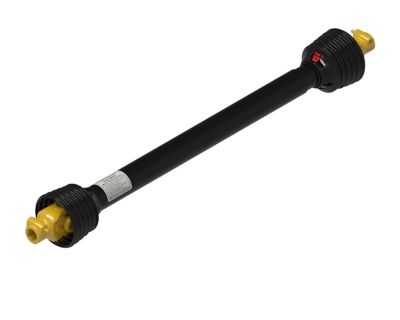

The Weasler 48 in. BYPY 4 Series Metric Driveline provides reliable service with durable construction. The convenient design of the drive shaft is a complete assembly for easy installation and maintenance. The driveline is designed for continuous heavy-duty all-purpose use so it can meet the requirements of large farms and contractors.
- BYPY 4 series driveline is a top choice in the agriculture and lawn and turf industries

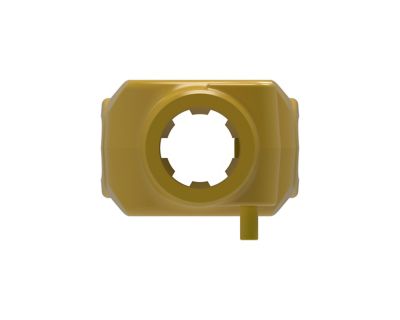

- Features a 1 3/8-6 spline quick disconnect tractor connection and 1 3/8-6 spline quick disconnect implement connection for ease of use
- Designed for large farms and contractors
- Design adjustability (cut-to-length) capabilities offer versatility
- Features a cast iron collar and a through-bore to keep debris from collecting inside
- Interchangeable with other Weasler yokes and most standard yokes (sold separately)
- Easy lock guard system provides full coverage at maximum angles, a full 360 degree friction weld on the guard bell, and black coloring that is durable against ultraviolet light and ozone
- Guard system is cold weather impact rated to -35 degrees C, meets and exceeds all applicable safety standards and ensures a quick and easy process for removal and installation
- Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours (sold separately)
- High temperature triple lip seal retains grease better
- Cross and bearing kit manufactured with high-quality steel for increased strength, high torque capacity and longer life; standard kits can be upgraded to or interchanged with E-Kits (sold separately)
- Both bores are 1.37 in. with a 3/8-6 spline
- Compressed closed length is 39.76 in. while the extended length is 61.81 in. and the extended overall length is 70.23 in.
- Operates at 56 HP/42 kilowatts at 1000RPM or 36 HP/27 kilowatts at 540RPM for efficiency
- Outside diameter of the drive shaft is 6 in. with a weight of 29 lb.
- Hollow tri-lobe female shaft to accommodate your equipment
| Brand | Weasler |
|---|---|
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Model Compatibility | Tractors, Implements |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 48 in. |
| Product Weight | 29 lb. |
| Product Width | 6 in. |
| Tractor PTO Part Type | Drivelines |
| Manufacturer Part Number | 14006448 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: Is there sheer bolt protection?
7 years ago1 Answer
- A: This is not sheer bolt protection, it has quick disconnects on both ends.7 years agoHelpful?
Q: Is this suitable for Rhino tw72 6 foot rotary cutter and Ford 2000 tractor? Tractor rated at 36hp.
7 years ago1 Answer
- A: Please see the manufacturer response below. The drive shaft size is rated on the implement requirements and not the tractor. I cannot find a drive shaft listed specifically for the TW72 in our system but I found a TW96 and TW120 that are larger versions of this mower and they use our 35 series. The BYPY 4 series is just slightly under the power ratings of the 35 series with a max HP rating of 36 HP at 540 rpms.7 years agoHelpful?
Q: what is the HP rating for this driveline?
8 years ago1 Answer
- A: This has 36 HP rating.8 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: Is there sheer bolt protection?
7 years ago1 Answer
- A: This is not sheer bolt protection, it has quick disconnects on both ends.7 years agoHelpful?
Q: Is this suitable for Rhino tw72 6 foot rotary cutter and Ford 2000 tractor? Tractor rated at 36hp.
7 years ago1 Answer
- A: Please see the manufacturer response below. The drive shaft size is rated on the implement requirements and not the tractor. I cannot find a drive shaft listed specifically for the TW72 in our system but I found a TW96 and TW120 that are larger versions of this mower and they use our 35 series. The BYPY 4 series is just slightly under the power ratings of the 35 series with a max HP rating of 36 HP at 540 rpms.7 years agoHelpful?
Q: what is the HP rating for this driveline?
8 years ago1 Answer
- A: This has 36 HP rating.8 years agoHelpful?
