Weasler 53 in. BYPY 4 Series Metric Driveline
Weasler 53 in. BYPY 4 Series Metric Driveline
Item # 27134299
$479.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$479.99
or
or
$40/mo.† suggested payments with 12 Months Financing or earn $23 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Later at Franklin TN FREE
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

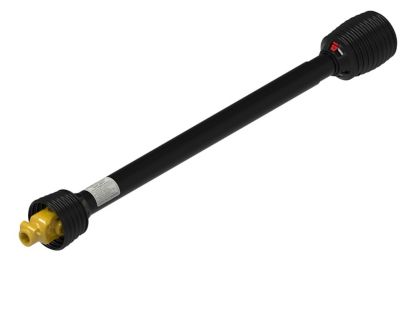

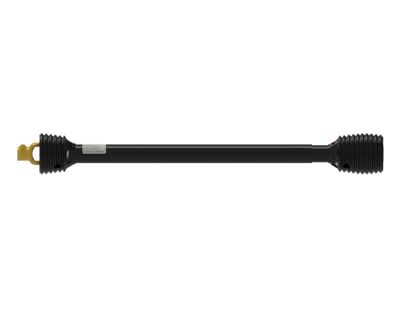

The Weasler 53 in. BYPY 4 Series Metric Driveline provides reliable service with durable construction. The convenient design of the drive shaft is a complete assembly for easy installation and maintenance. The driveline is designed for continuous heavy-duty all-purpose use so it can meet the requirements of large farms and contractors.
- BYPY 4 series driveline is a top choice in the agriculture and lawn and turf industries

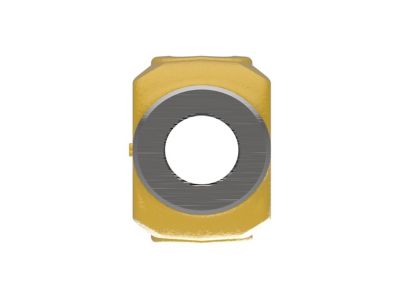

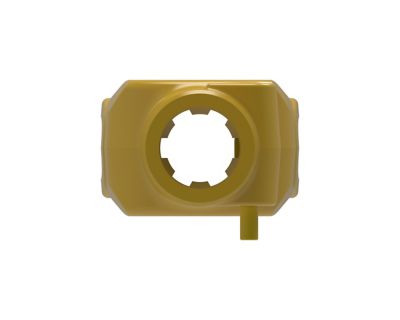

- Features a 1-3/8 in., 6 spline quick disconnect tractor connection and a 1-1/4 in. round pin implement connection
- Designed for large farms and contractors
- Design adjustability (cut-to-length) capabilities offer versatility
- Features a cast iron collar and a through-bore to keep debris from collecting inside
- Interchangeable with other Weasler yokes and most standard yokes (sold separately)
- Easy lock guard system provides full coverage at maximum angles, a full 360 degree friction weld on the guard bell, and black coloring that is durable against ultraviolet light and ozone
- Guard system is cold weather impact rated to -35 degrees C, meets and exceeds all applicable safety standards and ensures a quick and easy process for removal and installation
- Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours (sold separately)
- High temperature triple lip seal retains grease better
- Cross and bearing kit manufactured with high-quality steel for increased strength, high torque capacity and longer life; standard kits can be upgraded to or interchanged with E-Kits (sold separately)
- Compressed closed length is 45.67 in. while the extended length is 71.65 in. and the extended overall length is 79.6 in.
- Hollow tri-lobe female shaft to accommodate your equipment
- Operates at 56 HP/42 kilowatts at 1000RPM or 36 HP/27 kilowatts at 540RPM for efficiency
- Outside diameter of the drive shaft is 6 in. with a weight of 29 lb.
| Brand | Weasler |
|---|---|
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Model Compatibility | Tractors, Implements |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 45.67 in. |
| Product Length | 53 in. |
| Product Weight | 29 lb. |
| Product Width | 6 in. |
| Tractor PTO Part Type | Drivelines |
| Manufacturer Part Number | 14006453 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: What is the ID of the shear pin end or the implement end of the PTO shaft
3 years ago1 Answer
- A: We recommend contacting the manufacturer, Weasler Engineering, at 262-338-2161 or https://www.weasler.com/contact/.3 years agoHelpful?
Q: does it have a keyway
3 years ago1 Answer
- A: No, it does not.3 years agoHelpful?
Q: Is the 53” dimension over all length?
3 years ago1 Answer
- A: The collapsed length is 53" Extended length: 71.65 in./1820 mm; extended overall length: 79.6 in/2022 mm3 years agoHelpful?
Q: What is the collapsed length?
5 years ago1 Answer
- A: 53”5 years agoHelpful?
Q: Does this fit the 2100220 post hole digger ?
6 years ago1 Answer
- A: For specific cross-referencing, please contact the manufacturer, Weasler Engineering, at 262-338-2161 or https://www.weasler.com/contact/.6 years agoHelpful?
Q: Will this shaft fit a Sitrex Tedder?
6 years ago1 Answer
- A: No, it will not.6 years agoHelpful?
Q: What is the maximum length that I can hook this up? I have a pull behind cutter and I need a new shaft. The tractor is approximately 60 inches ahead of the hook up at the gear box of the cutter.
8 years ago1 Answer
- A: The maximum length is 71 in.8 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: What is the ID of the shear pin end or the implement end of the PTO shaft
3 years ago1 Answer
- A: We recommend contacting the manufacturer, Weasler Engineering, at 262-338-2161 or https://www.weasler.com/contact/.3 years agoHelpful?
Q: does it have a keyway
3 years ago1 Answer
- A: No, it does not.3 years agoHelpful?
Q: Is the 53” dimension over all length?
3 years ago1 Answer
- A: The collapsed length is 53" Extended length: 71.65 in./1820 mm; extended overall length: 79.6 in/2022 mm3 years agoHelpful?
Q: What is the collapsed length?
5 years ago1 Answer
- A: 53”5 years agoHelpful?
Q: Does this fit the 2100220 post hole digger ?
6 years ago1 Answer
- A: For specific cross-referencing, please contact the manufacturer, Weasler Engineering, at 262-338-2161 or https://www.weasler.com/contact/.6 years agoHelpful?
Q: Will this shaft fit a Sitrex Tedder?
6 years ago1 Answer
- A: No, it will not.6 years agoHelpful?
Q: What is the maximum length that I can hook this up? I have a pull behind cutter and I need a new shaft. The tractor is approximately 60 inches ahead of the hook up at the gear box of the cutter.
8 years ago1 Answer
- A: The maximum length is 71 in.8 years agoHelpful?
Similar Items
Items You May Like
Customers Also Bought
Reviews
Summary of Reviews
The product appears to be of good quality, with the driveline and PTO shaft working well and being easy to install. Many customers report the product is durable and can withstand heavy use. A few mino...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
- purchase
- returns
- in-store
- refund
- satisfaction
- small
- staff
- black
1 to 4 of 38 Reviews .
1 – 4 of 38 Reviews
Most Recent
Grand Prairie Texas
Reviews 3
5 out of 5 stars.
Driveline
3 years ago
The driveline worked perfectly. If it can hold up to my son using it it can hold up to anything.
Yes, I recommend this product.
Reviews 3
5 out of 5 stars.
Good Drive
4 years ago
Good Drive, easy to get togeter after it come out the channel when over extended. Good shield and visibility portholes to see through when connecting to tractor. Safe shield.
SweepstakesYes
Yes, I recommend this product.
Reviews 2
4 out of 5 stars.
Changed ends
5 years ago
It was good they put the ends on wrong at factory I had to switch ends works great
Sweepstakes EntryYes
Reviews 4
5 out of 5 stars.
One Concern
5 years ago
The shear pin hole is much smaller than the original. That gives me concern, but so far so good.
