Weasler 30 in. BYPY 4 Series Metric Driveline
Weasler 30 in. BYPY 4 Series Metric Driveline
Item # 2701068
Stocked & Ready
$479.99
or
or
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
$479.99
or
or
$36/mo.† suggested payments with 12 Months Financing or earn $21 in Rewards+ on this purchase.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Lower Price at this Store
Only $99.99
each
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

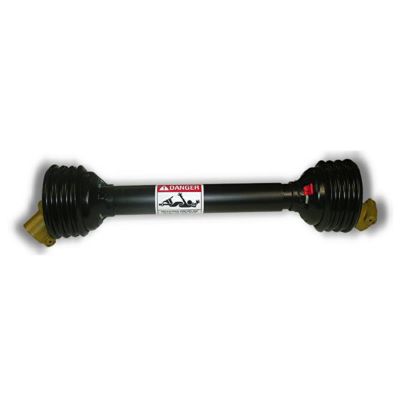

The Weasler 30 in. BYPY 4 Series Metric Driveline provides reliable service with durable construction. The convenient design of the drive shaft is a complete assembly for easy installation and maintenance. The driveline is designed for continuous heavy-duty all-purpose use and meet the requirements of large farms and contractors.
- Driveline is made to fit PTO BYPY 4 series finish mowers with a size of 4 ft. cut
- Overall compressed length is 30 in. and compressed closed length is 22.05 in.
- Features a 1-3/8 in., 6 spline quick disconnect system
- 1-3/8 in. round pin implement connection for secure attachment
- Inner tube diameter is 1.417 in. and the outer tube diameter is 1.713 in.
- Hollow tri-lobe provides stability
- Designed for large farms and contractors
- Design adjustability (cut-to-length) capabilities offer versatility
- Interchangeable with other Weasler yokes and most standard yokes (sold separately)
- Easy lock guard system provides full coverage at maximum angles, a full 360 degree friction weld on the guard bell, and black coloring that is durable against ultraviolet light and ozone
- Guard system is cold weather impact rated to -35 degrees C, meets and exceeds all applicable safety standards and ensures a quick and easy process for removal and installation
- Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours (sold separately)
- High temperature triple lip seal retains grease better
- Features a cast iron collar and a through-bore to keep debris from collecting inside
- Manufactured with high-quality steel for increased strength, high torque capacity and longer life; standard kits can be upgraded to or interchanged with E-Kits (sold separately)
- Extended length is 22.28 in. and the extended overall length is 40.23 in.
- Operates at 56 HP/42 kilowatts at 1000RPM or 36 HP/27 kilowatts at 540RPM for efficiency
- Weight of the drive shaft is 21 lb.
| Brand | Weasler |
|---|---|
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Model Compatibility | Tractors, Implements |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 30 in. |
| Product Weight | 21 lb. |
| Product Width | 6 in. |
| Tractor PTO Part Type | Drivelines |
| Manufacturer Part Number | 14006430 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: Is this the right pto shaft for a tiller ran by a 35 hp tractor? I need the same spindle end on both ends of the pto shaft.
7 years ago1 Answer
- A: The H/P is rated @36; this D/L has 1 3/8-6 spines on both ends.7 years agoHelpful?
Q: Can this shaft be cut down to a shorter size? I need one about 24 inches and this is the shortest I can find.
7 years ago1 Answer
- A: Yes, it can be shortened- equal amounts off each end.7 years agoHelpful?
Q: Trying to replace a weasler #14006451, 4 series. Will this work?
8 years ago1 Answer
- A: Unfortunately it will not.8 years agoHelpful?
Q: What is the warranty?
8 years ago1 Answer
- A: There isn't a manufacturer's warranty on this product. However, if you experience any manufacturer's defects within the first 30 days of your purchase, please return the product to your local TSC store and they should be able to assist with an exchange.8 years agoHelpful?
Q: Will this work with a 4 foot finishing mower. Not enough detail. is the inside shaft square or round. what does it expand out too?
9 years ago1 Answer
- A: This should work for that application. It is a tri-lobe shaft(triangular). It's max running length is 40-1/4". This 4 series Weasler Metric Driveline is rated at 36HP.9 years agoHelpful?
Q: is the inter shaft solid
9 years ago1 Answer
- A: No, the inner shaft is hollow.9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: Is this the right pto shaft for a tiller ran by a 35 hp tractor? I need the same spindle end on both ends of the pto shaft.
7 years ago1 Answer
- A: The H/P is rated @36; this D/L has 1 3/8-6 spines on both ends.7 years agoHelpful?
Q: Can this shaft be cut down to a shorter size? I need one about 24 inches and this is the shortest I can find.
7 years ago1 Answer
- A: Yes, it can be shortened- equal amounts off each end.7 years agoHelpful?
Q: Trying to replace a weasler #14006451, 4 series. Will this work?
8 years ago1 Answer
- A: Unfortunately it will not.8 years agoHelpful?
Q: What is the warranty?
8 years ago1 Answer
- A: There isn't a manufacturer's warranty on this product. However, if you experience any manufacturer's defects within the first 30 days of your purchase, please return the product to your local TSC store and they should be able to assist with an exchange.8 years agoHelpful?
Q: Will this work with a 4 foot finishing mower. Not enough detail. is the inside shaft square or round. what does it expand out too?
9 years ago1 Answer
- A: This should work for that application. It is a tri-lobe shaft(triangular). It's max running length is 40-1/4". This 4 series Weasler Metric Driveline is rated at 36HP.9 years agoHelpful?
Q: is the inter shaft solid
9 years ago1 Answer
- A: No, the inner shaft is hollow.9 years agoHelpful?
