ToolTuff Direct 42 in. 4 Series PTO Driveline
$149.99
ToolTuff Direct 42 in. 4 Series PTO Driveline
ToolTuff Direct 42 in. 4 Series PTO Driveline
Item # 193001499
$149.99
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA.
Get everything you need
Neighbor’s Club Members earn points with purchases.
$149.99
New Cardmembers earn a $50 Reward‡ with qualifying purchase of $50 or more plus earn 5% in Rewards+ on this purchase. Valid through 10/11/26.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA.
Get everything you need
Neighbor’s Club Members earn points with purchases.

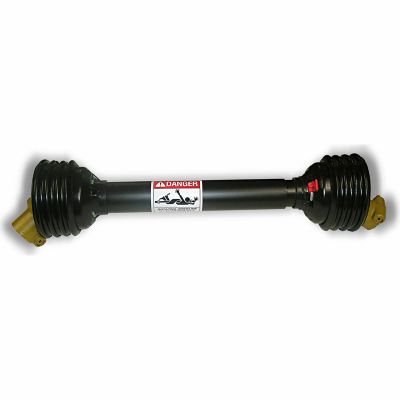

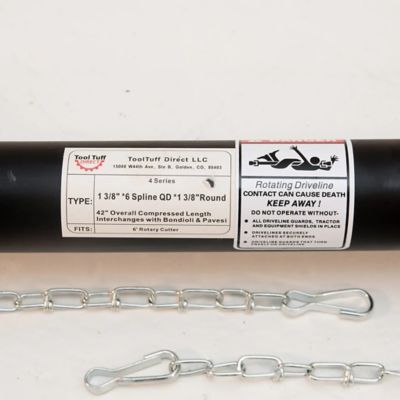

The Tool Tuff Direct 42 in. 4 Series PTO Driveline is designed to connect your tractor to your implement. The general-purpose design of the driveline offers consistent power for a large variety of applications. The sturdy steel construction protects the drive shaft from everyday use and high speed for long-lasting functionality.
- PTO shaft assembly provides reliable power
- Series 4 PRO drive shaft for compatibility
- Retracted overall length is 42 in. with a safe extended overall length of 58 in.
- Can be cut to length for better fit between tractor and implement
- Tractor yoke has a 1-3/8 x 6 spline quick disconnect coupler
- Implement yoke is 1-3/8 round with a through-hole for a shear bolt
- Tri-lobe for optimum power transfer through the driveline
- Rated for 35 HP at 540 RPM or 54 HP at 1000 RPM
- Guarding over the drive shafts and joints meet or exceed safety standards
- Cross and bearing kits are replaceable (sold separately)
| Brand | ToolTuff Direct |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Model Compatibility | Tractors, Implements |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 43 in. |
| Product Weight | 26 lb. |
| Product Width | 6 in. |
| Tractor PTO Part Type | Drivelines |
| Manufacturer Part Number | 27-016 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 20 Questions
Newest questions
Q: How do you lock the PTO onto your bush hog and tractor?
a month ago1 Answer
- A: Hi Bishop, The tractor yoke uses a 1-3/8 x 6 spline quick disconnect coupler to lock onto the tractor. The implement yoke is a 1-3/8 round bore that secures to your bush hog using a shear bolt through the provided through-hole.a month agoHelpful?
Q: What type of lock connection is on the spline coupling? Push pin or collar?
2 months ago1 Answer
- A: Hi 4TA1! The tractor yoke features a push pin (quick disconnect) lock connection. One reviewer noted that only one side of the yokes included a locking pin.2 months agoHelpful?
Q: What size shear bolt is required
2 months ago1 Answer
- A: Hi Leinad! It requires a 1/2 inch diameter Grade 2 shear bolt.2 months agoHelpful?
Q: Will this work for the 5ft county line rotary cutter ?
2 months ago1 Answer
- A: Hi Neighbor! Yes, this driveline can work for a rotary cutter, provided the implement uses a 1-3/8" round shaft with a shear bolt. It is rated for 35 HP at 540 RPM or 54 HP at 1000 RPM and can be cut to length for a better fit.2 months agoHelpful?
Q: Will it work on a 135 massy furgeson
2 months ago1 Answer
- A: Hi Sandy! Yes, this will physically work on a Massey Ferguson 135 tractor, but you will need to check the length and horsepower requirements of your specific implement first.2 months agoHelpful?
Q: Will this work with a John Deere 3038e tractor?
3 months ago1 Answer
- A: Hi Stevebob! Yes, this product will work with a John Deere 3038e tractor, provided it is matched with the correct implement.3 months agoHelpful?
Q: Will this work on a non 3 point brush hog. Pull behind
3 months ago1 Answer
- A: Hi Kevin! It can work on a pull-behind brush hog, provided the implement uses a 1-3/8" round shaft with a shear bolt.3 months agoHelpful?
Q: How do you lock the implement side onto the shaft?
8 months ago1 Answer
- A: Hi Colin! Align the splines, push the yoke onto the implement's PTO stub, then use the quick-disconnect collar on the yoke to secure it8 months agoHelpful?
Q: What horsepower tractor is this rated for?
a year ago1 Answer
- A: Hi Neighbor! Rated for 35 HP at 540 RPM or 54 HP at 1000 RPMa year agoHelpful?
Q: What size is shear bolt hole
a year ago1 Answer
- A: Hi Neighbor! Implement yoke is 1-3/8 round with a through-hole for a shear bolt. For more exact information, please contact ToolTuff Direct at: https://www.tooltuffdirect.com/pages/contact-usa year agoHelpful?
1 - 10 of 20 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 20 Questions
Newest questions
Q: How do you lock the PTO onto your bush hog and tractor?
a month ago1 Answer
- A: Hi Bishop, The tractor yoke uses a 1-3/8 x 6 spline quick disconnect coupler to lock onto the tractor. The implement yoke is a 1-3/8 round bore that secures to your bush hog using a shear bolt through the provided through-hole.a month agoHelpful?
Q: What type of lock connection is on the spline coupling? Push pin or collar?
2 months ago1 Answer
- A: Hi 4TA1! The tractor yoke features a push pin (quick disconnect) lock connection. One reviewer noted that only one side of the yokes included a locking pin.2 months agoHelpful?
Q: What size shear bolt is required
2 months ago1 Answer
- A: Hi Leinad! It requires a 1/2 inch diameter Grade 2 shear bolt.2 months agoHelpful?
Q: Will this work for the 5ft county line rotary cutter ?
2 months ago1 Answer
- A: Hi Neighbor! Yes, this driveline can work for a rotary cutter, provided the implement uses a 1-3/8" round shaft with a shear bolt. It is rated for 35 HP at 540 RPM or 54 HP at 1000 RPM and can be cut to length for a better fit.2 months agoHelpful?
Q: Will it work on a 135 massy furgeson
2 months ago1 Answer
- A: Hi Sandy! Yes, this will physically work on a Massey Ferguson 135 tractor, but you will need to check the length and horsepower requirements of your specific implement first.2 months agoHelpful?
Q: Will this work with a John Deere 3038e tractor?
3 months ago1 Answer
- A: Hi Stevebob! Yes, this product will work with a John Deere 3038e tractor, provided it is matched with the correct implement.3 months agoHelpful?
Q: Will this work on a non 3 point brush hog. Pull behind
3 months ago1 Answer
- A: Hi Kevin! It can work on a pull-behind brush hog, provided the implement uses a 1-3/8" round shaft with a shear bolt.3 months agoHelpful?
Q: How do you lock the implement side onto the shaft?
8 months ago1 Answer
- A: Hi Colin! Align the splines, push the yoke onto the implement's PTO stub, then use the quick-disconnect collar on the yoke to secure it8 months agoHelpful?
Q: What horsepower tractor is this rated for?
a year ago1 Answer
- A: Hi Neighbor! Rated for 35 HP at 540 RPM or 54 HP at 1000 RPMa year agoHelpful?
Q: What size is shear bolt hole
a year ago1 Answer
- A: Hi Neighbor! Implement yoke is 1-3/8 round with a through-hole for a shear bolt. For more exact information, please contact ToolTuff Direct at: https://www.tooltuffdirect.com/pages/contact-usa year agoHelpful?
1 - 10 of 20 Questions
Similar Items
-
-
-
-
-
Top Rated
-
-
-
-
-
-
Top Rated
-
Frequently Bought Together
Reviews
1 to 4 of 43 Reviews .
1 – 4 of 43 Reviews
Most Recent
Northern Indiana
Review 1
1 out of 5 stars.
Don’t Buy
a month ago
Worst choice I have ever made in my life was buying this part! Praying they will refund my money back. Good luck getting everything from UPS.
No, I do not recommend this product.
Alabama
Review 1
5 out of 5 stars.
Driveshaft
a month ago
Bolted right up
SweepstakesYes
Yes, I recommend this product.
Review 1
5 out of 5 stars.
Exactly
a month ago
Exactly what I needed to replace.
SweepstakesYes
Yes, I recommend this product.
Anonymous
Wisconsin
Review 1
5 out of 5 stars.
Excellent
2 months ago
Excellent product Performance is smooth.
Yes, I recommend this product.
