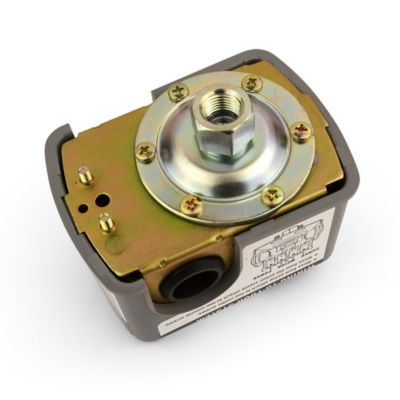

Water Source Well System Pressure Switch, 20/40 PSI

5.04 Reviews

Item # 1028053

Image showing Well System Pressure Switch, 20/40 PSI

$34.99

See 2 deals for this item

Neighbor’s Club Members earn points with purchases.

Shop all Water Source

Water Source Well System Pressure Switch, 20/40 PSI

5.04 Reviews

Item # 1028053

$31^.99

See 2 deals for this item

Shopping at

Leesburg VA

4 In Stock in Aisle 11

Delivering to

20147

Neighbor’s Club Members earn points with purchases.

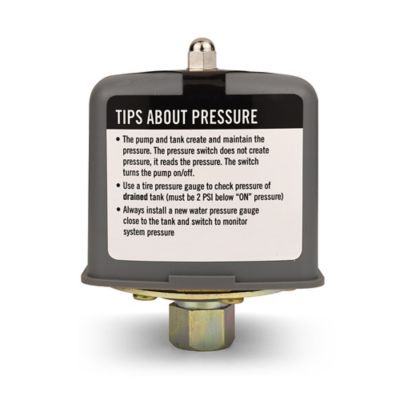

This Water Source Well System Pressure Switch signals the pump to start when the water system drops to 20 PSI (factory set) and stops at 40 PSI (factory set). This well pump pressure switch is to be used with submersible well or jet pumps. It can be wired 115-volt or 230-volt. This pump pressure switch must be used in conjunction with a well pressure tank. The air pressure in the well tank, when empty of all water, must be set to 18 PSI, or the switch will not operate properly.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Signals the pump to start when the water system drops to 20 psi (factory set) and stops at 40 psi (factory set)
Can be wired 115 volt or 230 volt
Well pressure pump switch for use with submersible well or jet pumps (that can create up to 40 pounds of pressure)

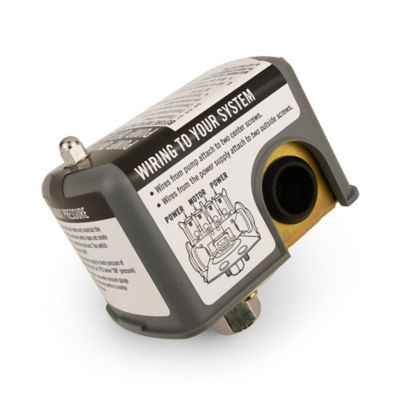

Motor wires are connected to the 2 middle posts (color does not matter)
Breaker box wires are connected to 2 outside posts (color does not matter)

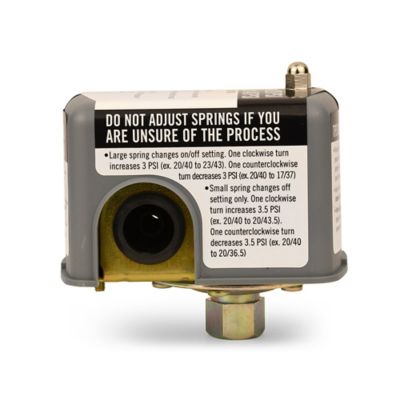

2-spring design allows for adjustment of cut-in and cut-out pressure settings
Adjustments to springs should only be made by users with good knowledge of well systems
Tank must be in good condition in order for pressure pump switch to work properly
