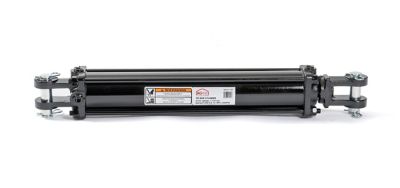

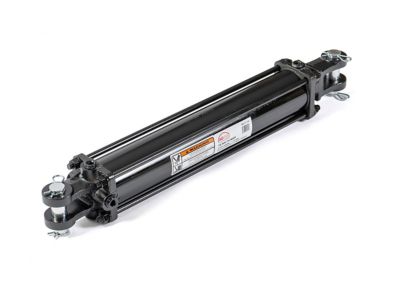

ToolTuff Direct 3 in. x 16 in. Tie Rod Cylinder, 1-1/4 in. Rod, with Dual Port (SAE8 & 1/2 in. NPT), 2500 PSI
ToolTuff Direct 3 in. x 16 in. Tie Rod Cylinder, 1-1/4 in. Rod, with Dual Port (SAE8 & 1/2 in. NPT), 2500 PSI
Item # 2523015
$169.23
ToolTuff Direct 3 in. x 16 in. Tie Rod Cylinder, 1-1/4 in. Rod, with Dual Port (SAE8 & 1/2 in. NPT), 2500 PSI
Item # 2523015
$169.23
AgKNX tie-rod cylinders are designed for durability and versatility in demanding applications. For use in a variety of double-acting applications including agricultural, compact construction and transportation equipment as well as waste and recycling. Featuring SAE O-ring and NPT ports for easy hookup.

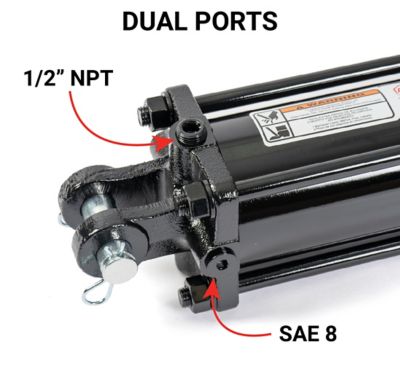

- Equipped with SAE O-ring and NPT ports for quick, hassle-free installation
- Rated for up to 2500 PSI

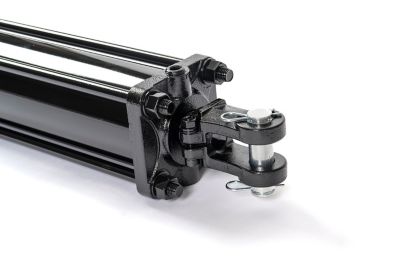

- Clevis mount for easy attachment
| Brand | ToolTuff Direct |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Most Applications |
| Extended Length | 42.25 in. |
| Maximum Operating Pressure | 2,500 PSI |
| Maximum Weight Capacity | 17,662 lb. |
| Model Compatibility | Most Applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 12"NPT |
| Primary Material | Metal |
| Product Height | 5 in. |
| Product Length | 29 in. |
| Product Weight | 36 lb. |
| Product Width | 5 in. |
| Retracted Length | 26.25 in. |
| Rod Diameter | 1.25 in. |
| Stroke Distance | 16 in. |
| Manufacturer Part Number | 31-144 |
