Chief WP 3000 PSI Welded/Pineye Cylinder, 1.5 in. x 12 - 1 in. Rod Dia.

SKU # 130764699
Product price

Save Up To
See Price at Check Out
Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

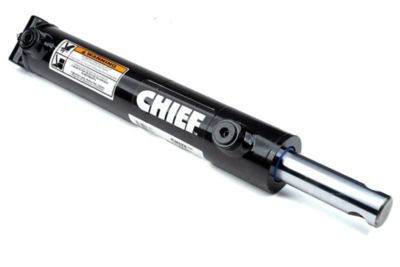

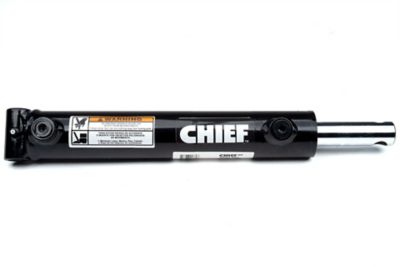

The Chief WP 3000 PSI is a very versatile cylinder. The rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice. Base end has a welded cross-tube with grease zerk.

  • Ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment
  • SAE 8 O-ring ports for easy hookup
  • For use in double or single acting hydraulic applications
  • 1.5 in. x 12 - 1 in. Rod Dia.

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Maximum Operating Pressure: 3000 PSI
Pin Diameter: 0-5/8 in.
Package Quantity: 1
Type: Welded Hydraulic Cylinder
Port Size: SAE 6
Warranty: 3 Year
Special Feature: Welded cylinder with pin-eye rod
Material: Steel
Product Type: Hydraulic Cylinders
Brand: Chief
Maximum Weight Capacity: 5300 lb.
Bore Diameter: 1-1/2 in.
Product Weight: 10 lb.
Application: For use in double or single acting hydraulic applications.
Rod Diameter: 1 in.
Manufacturer Part Number 287204
