Superior Pump Vertical Float Switch
Superior Pump Vertical Float Switch
Item # 117649199
$41.99
Neighbor’s Club Members earn points with purchases.
$41.99
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

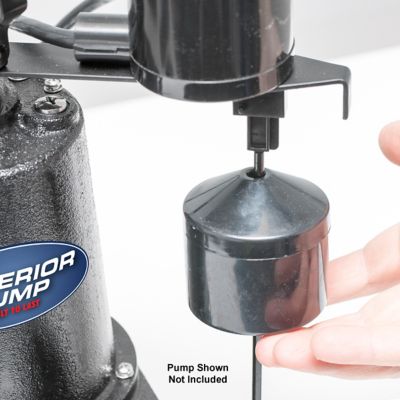

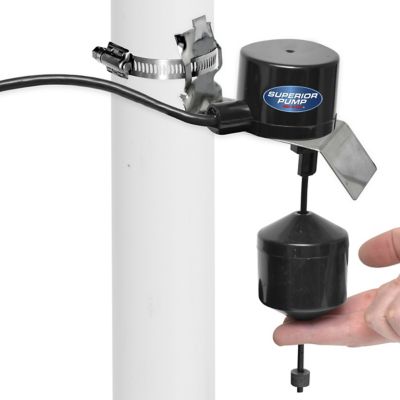

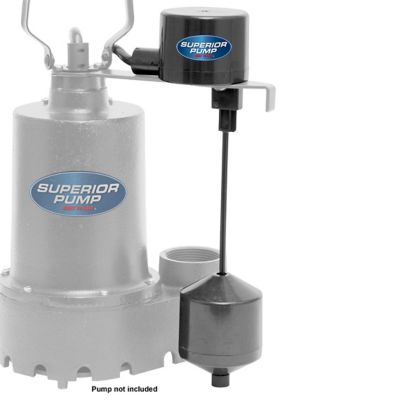

Automatically turn on and off your pump using the Superior Pump Vertical Float Switch. Designed to work with many pumps, the universal design works great with most sump and utility pumps. The switch features a non-mercury activated switch attached to a 10 ft. SJOW water resistant power cord. Package includes 1 vertical float switch, mounting bracket, and clamp. 120-Volt - maximum pump running current: 10 Amp.1 Year warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Universal design works with many pumps
- For use with sump and utility pumps
- Non-mercury activated switch
- Includes mounting clip and clamp
- 10 ft. SJOW water resistant power cord with piggyback plug
- 120 Volt - max pump running current: 10 amps
| Brand | Superior Pump |
|---|---|
| Country of Origin | Imported |
| Compatibility | All brands |
| Package Quantity | 1 |
| Primary Color | Black |
| Primary Material | Thermoplastic |
| Product Height | 3 in. |
| Product Length | 123 in. |
| Product Weight | 1.1 lb. |
| Product Width | 3.5 in. |
| Pump Accessory Type | Switches |
| Manufacturer Part Number | 92010 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: How far does the float have to travel to activate the pump?
5 years ago1 Answer

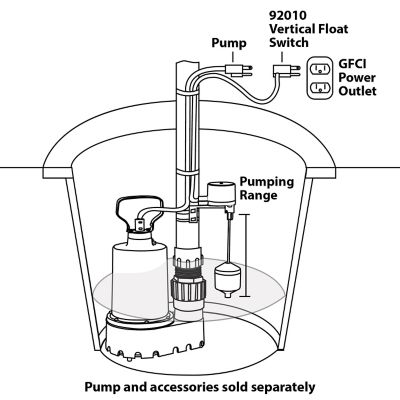

- A: Determine desired activation level and pumping range as shown in Figure 1. Pumping range can be adjusted by moving the float stop up or down the rod Figure 4. 2. Insert hose clamp through slots in mounting bracket as shown in Figure 2. 3. Position hose clamp around discharge pipe with bracket gripping tabs against pipe. Cable should remain outside of hose clamp. 4. Tighten the hose clamp securely. 5. Secure pump cable and switch cable to discharge pipe as shown in Figure 1*. 6. Plug the piggyback plug into a grounded outlet, then plug the pump into the piggyback plug. Refer to Figure 3. 7. Check for proper operation by filling the pump basin with water. Make sure the pump operates at the desired levels. Make any necessary adjustments at this time.5 years agoHelpful?
Q: Superior Pump - Superior Pump Vertical Float Switch does this have a n/o or a n/c contact in it?
5 years ago1 Answer
- A: Thank you for your question! This product has a normally open circuit.5 years agoHelpful?
Q: What us the diameter of the float
7 years ago1 Answer
- A: The diameter for float ball is about 2-1/4“. The diameter of float switch attached with bracket about 8”.7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: How far does the float have to travel to activate the pump?
5 years ago1 Answer
- A: Determine desired activation level and pumping range as shown in Figure 1. Pumping range can be adjusted by moving the float stop up or down the rod Figure 4. 2. Insert hose clamp through slots in mounting bracket as shown in Figure 2. 3. Position hose clamp around discharge pipe with bracket gripping tabs against pipe. Cable should remain outside of hose clamp. 4. Tighten the hose clamp securely. 5. Secure pump cable and switch cable to discharge pipe as shown in Figure 1*. 6. Plug the piggyback plug into a grounded outlet, then plug the pump into the piggyback plug. Refer to Figure 3. 7. Check for proper operation by filling the pump basin with water. Make sure the pump operates at the desired levels. Make any necessary adjustments at this time.5 years agoHelpful?
Q: Superior Pump - Superior Pump Vertical Float Switch does this have a n/o or a n/c contact in it?
5 years ago1 Answer
- A: Thank you for your question! This product has a normally open circuit.5 years agoHelpful?
Q: What us the diameter of the float
7 years ago1 Answer
- A: The diameter for float ball is about 2-1/4“. The diameter of float switch attached with bracket about 8”.7 years agoHelpful?
