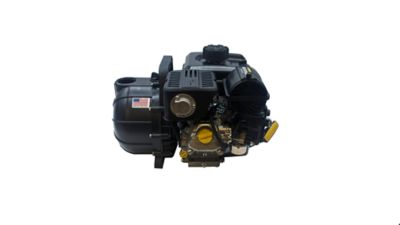

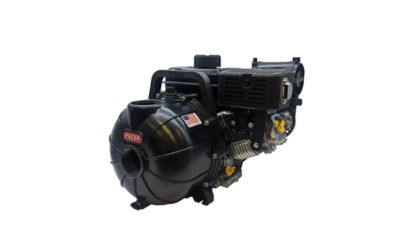

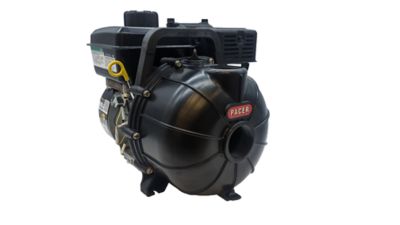

Pacer 6.5 HP Gas-Powered Chemical and Clear Water Transfer Pump, 200 GPM, Engine Driven
Item # 2094864
Item # 2094864
Pacer's S' Series Self-Priming Centrifugal pumps are lightweight and chemically resistant for general service on water, salt water, waste water, agricultural chemicals, and mild acids and bases. They feature stainless steel internal and external fasteners and EPDM elastomers The pumps are molded of tough, engineered thermoplastics. All pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids. It features a 2" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a Briggs & Stratton 6.5HP Vanguard commercial duty gasoline engine with flow rates of up to 200 GPM or 120 ft. TDH. Please Call Pacer with any chemical compatibility or application questions.1-year Limited manufacturer warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 2" Suction & Discharge ports
- 200 Max GPM
- 120 ft. Max TDH
- Suction Lift to 25 ft.
- Built in check valve
- Tough glass reinforced polyester
- Stainless steel hardware
- EPDM Elastomers

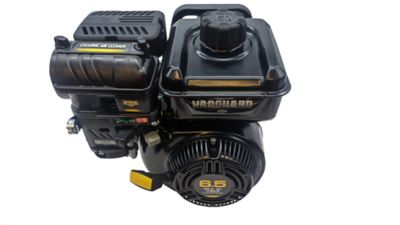

- Briggs & Stratton Vanguard commercial duty gasoline engine
- 6.5 HP
- B&S Feature - Compact OHV design, Dual ball bearings, Cast iron cylinder sleeve
- B&S Feature - Run sense low oil system
- B&S Feature - High-capacity air cleaner
- For use in Aquaculture, Agriculture, Marine and Industrial
- Molded & Assembled in the USA (Lancaster, PA)
| Brand | Pacer |
|---|---|
| Country of Origin | Made in USA |
| Body Material | Polyester |
| Compatible Pipe Material | Plastic |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 2 in. |
| Discharge Rate at 0 ft. | 200 GPM |
| Discharge Rate at 10 ft. | 180 GPM |
| Engine Displacement | 203 cc |
| Features | 2 in. suction and discharge ports, 200 Max GPM, 110 ft. Max TDH, 25 ft. suction lift, Built in check valve, Briggs & Stratton Vanguard Commercial duty gasoline engine, 6.5 HP, Molded & Assembled in the USA |
| Horsepower | 6.5 HP |
| Hose Diameter | 2 in. |
| Impeller Material | Polyester |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 2 in. |
| Maximum Flow Rate | 200 GPM |
| Maximum Head Lift | 120 ft. |
| Maximum Operating Pressure | 48 PSI |
| Maximum Operating Temperature | 130 deg. F |
| Maximum Suction Lift | 25 ft. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | -10 deg. F |
| Power Type | Gas |
| Product Height | 16 in. |
| Product Length | 21 in. |
| Product Weight | 55 lb. |
| Product Width | 18 in. |
| Pump Mechanism | Centrifugal |
| Motor Type | Gasoline |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | P-58-12U4-E6VCP |
