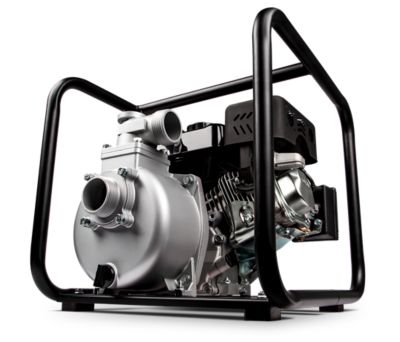

Red Lion 2 in. Aluminum Semi-Trash Pump, 6RLAG-2LST, 617034

SKU: 102308599
Enter Zip Code for price
Product price

Save Up To
See price at checkout
Product Rating is 4.3
4.3
 (156)

Quantity

TSC of franklin #2314
2176 hillsboro rd ste 122
franklin, TN 37069
(615) 595-5700
TSC of franklin #2314
2176 hillsboro rd ste 122
franklin, TN 37069
(615) 595-5700
Check Availability at Other Stores
Standard Delivery Not Available to
This item will ship within 0 days.
Change Delivery Location
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

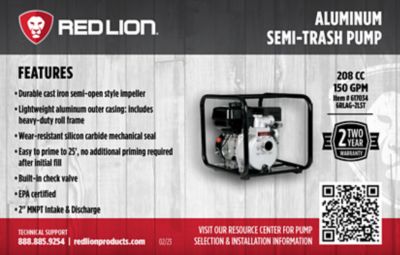

Aluminum Semi-Trash Water Pump

  • Durable cast Iron semi-open style impeller
  • Lightweight Aluminum outer casing
  • Heavy Duty roll frame
  • Wear resistant silicon carbide mechanical seal
  • Self Priming to 25' suction lift
  • EPA Certified

Ideal for high volume water transfer and dewatering. Can handle liquid slurries including sand, pebbles and suspended solids less than 1/2" in diameter.

Specification Description
Brand: Red Lion
Suction Port: 2 in.
Valve Inlet Diameter: 27 mm
Engine Displacement: 208 cc
Compatible Pipe Material: N/A
CountryofOrigin: Imported
Product Weight: 52 lb.
Hose Diameter: 2 in.
Part Number: 617034
Valve Inlet Type: Steel
Special Feature(s): Built-in check valve
Product Length: 17.5 in.
Housing Material: Aluminum
Valve Outlet Diameter: 25 mm
Voltage: N/A
Outlet Diameter: 2 in.
Inlet Diameter: 2 in.
Engine Brand: LCT
Minimum Operating Pressure: 0
Maximum Operating Pressure: 39
Power Type: Gas
Type: Water Pump
Motor Type: 4 Stroke OHV
Maximum Flow Rate: 150 GPM
Product Height: 16.5 in.
Product Width: 20 in.
Operating Temperature Range: 32 - 104 deg. F
Discharge Port: 2 in.
Valve Outlet Type: Steel
Manufacturer Part Number 617034
Red Lion 2 in. Aluminum Semi-Trash Pump, 6RLAG-2LST, 617034 is rated 4.3 out of 5 by 134.
Rated 2 out of 5 by from Red Lion trash pump & sprayer Not bad for the price. It’s great for watering nursery stock
Date published: 2019-08-03
Rated 5 out of 5 by from Great pump for the money! I was a little skeptical because I didn't recognize the brand and the price was much cheaper than the one it replaced. I had one lost in a flood that we use to water cows. Put oil in the motor, primed the pump, started on the 2nd pull, and worked great! It seems to pump about double what the previous one did. Filled a 500 gallon stock tank in just a few minutes. Love the cage too. Makes it much easier to move.
Date published: 2019-08-02
Rated 5 out of 5 by from Pump performance This is an amazing pump. I didn’t realize the volume of water it moves and now working on a water storage system to which this pump will play a major role in.
Date published: 2019-05-21
Rated 4 out of 5 by from Works like it’s supposed to Works great I had to buy a smaller intake filter. I bought a skimmer head instead now it works even better
Date published: 2019-05-20
  • y_2019, m_8, d_5, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_33, tr_101
  • loc_en_US, sid_102308599, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 1ms
  • REVIEWS, PRODUCT

I want to irrigate and 800’ ft produce bed On mostly level ground with a one inch pipe with 50 sprinklers yielding .5 gpm at 40 psi. Which gas pump so I need?

Asked by: Ipmaynard
Thanks for your question. Twenty five gallons per minute creates a lot of friction loss in a 1” pipe. So it will be very important to know the length of pipe to adjust for friction loss. Along with length of pipe I will need to know the vertical difference from the water level to the highest point in the one inch discharge pipe. Can you call me at 888.885.9254. we can review your set up and provide best pump option.
Answered by: Red Lion Product expert
Date published: 2019-07-16

OK to pump brackish and salt water?

Asked by: Earl of Burger
Thanks for your question regarding Red Lion Engine powered transfer pumps. These pumps are designed to pump water. Brackish or salt water will damage the seals. For more information please contact our tech support hotline at 888-956-0000.
Answered by: Red Lion Product expert
Date published: 2018-03-17

Could I use this to water some trees I've planted along a creek a mile from the house. I would be drawing water from the crekk to do this. If this would work, what hoses would I need.

Asked by: 2283
This should work. I will need some more information about your trees and location before I could recommend hoses. Please call me at Red Lion Product support. 888-956-0000. Thanks!
Answered by: Red Lion Product expert
Date published: 2018-06-11

Will this be able to pump sandy, mucky, pond sludge up a few feet and out about 20 feet?

Asked by: Deltoid
Thank you for your question regarding Red Lion Engine Powered pumps. A slurry of particles suspended in water will pass through with the water. However, when there are enough particles to make that water into a mud or sludge the flow will stop because the pump won’t be able to move it. If you have additional questions please call our tech support at 888-956-0000.
Answered by: Red Lion Product expert
Date published: 2018-04-23

Is I have1600’ of 1” ads plastic pipe will this pump work to pump water through 1600’up 40’ in elevation?

Asked by: Kbplaza
Thank you for your question regarding Red Lion Engine Powered Transfer Pumps. The answer to your question is that yes it can do it but the flow would be very low, likely less than 5gpm with very little pressure. Please call me if you have additional questions or if you want to review your set up with me to get the most performance out of your pump. 888-956-0000.
Answered by: Red Lion Product expert
Date published: 2018-06-18

i'm looking to water a 1/2 acre remote wildlife food plot if i drive a 2'' sand point down 25ft would this pump be able to hook up to it and irrigate my crops or do i need another pump if so what would you recommend

Asked by: midwestbuckhunter
Thank you for your question. This pump will work with sand points. You will need to make sure the sand point can provide enough water to support the pump. This pump can pull up to 150 GPM from the well depending on your elevation. Your sand point will need to provide at least 150GPM. You will also need to make sure the depth to water in the sand point is 25' or less. If you have more questions please call me at 888-956-0000. Or visit Redlionproducts.com.
Answered by: Red Lion Product expert
Date published: 2019-02-07

I'm cleaning out a 5000 gallon pond and it has some rocks at the bottom. Will this pickup the rocks, and what if a rock does get picked up, will it ruin the equipment? My rocks are like 1" in size or better. (River rocks)

Asked by: ABAnderson
The rocks could cause damage if they are sucked into the pump. Especially larger ones. My recommendation would be to put a screen on the suction side of the hose to keep as much out of the pump as possible.
Answered by: Red Lion Product expert
Date published: 2019-04-24

What would the flow be at 40 psi and 0 head , would like to use this to wet down dusty road . would be using an old fire truck and a 10 ft boom with 10 nozzles rated at 4 gpm @40 psi, would this handle it?

Asked by: Dave B 50
Thanks for your question. With 10 nozzles at 4GPM the flow would be 40gpm which reduces the pressure to 30psi.
Answered by: Red Lion Product expert
Date published: 2019-06-12
