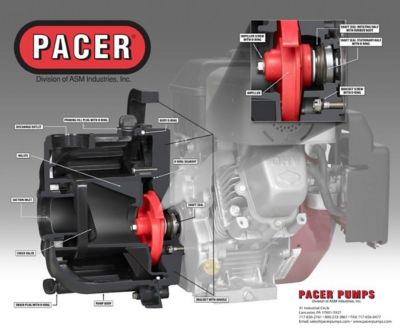

Pacer's S' Series Self-Priming Centrifugal pumps are lightweight and chemically resistant for general service on water, salt water, waste water, agricultural chemicals, and mild acids and bases. They feature stainless steel internal and external fasteners and EPDM elastomers The pumps are molded of tough, engineered thermoplastics. All pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids. It features a 3" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a 5 hp, three-phase electric motor with flow rates of up to 280 GPM or 75 ft. TDH at 60 Hz for powerful pumping. It is recommended a certified electrician install this pump. Please Call Pacer with any chemical compatibility or application questions.1-year Limited manufacturer warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 3" Suction & Discharge ports
- 280 Max GPM
- 75 ft. Max TDH
- Suction Lift to 25 ft.
- Built in check valve
- Tough glass reinforced polyester
- Stainless steel hardware
- EPDM Elastomers
- 5 HP
- 3 Phase Electric motor
- 230/460 V
- For use in Aquaculture, Agriculture, Marine and Industrial
- Molded & Assembled in the USA (Lancaster, PA)
| Brand | Pacer |
|---|---|
| Country of Origin | Made in USA |
| Body Material | Polyester |
| Compatible Pipe Material | Plastic |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 3 in. |
| Discharge Rate at 0 ft. | 280 GPM |
| Discharge Rate at 10 ft. | 260 GPM |
| Engine Displacement | 5 HP |
| Features | 3 in. suction and discharge ports, NPT threads, 280 Max GPM, 75 ft. Max TDH, 25 ft. suction lift, 5 HP 3 Phase electric motor, Molded & Assembled in the USA |
| Hose Diameter | 3 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 3 in. |
| Maximum Flow Rate | 280 GPM |
| Maximum Head Lift | 75 ft. |
| Maximum Operating Pressure | 35 PSI |
| Maximum Operating Temperature | 130 deg. F |
| Maximum Suction Lift | 25 ft. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | -10 deg. F |
| Power Type | Electric |
| Product Height | 18 in. |
| Product Length | 30 in. |
| Product Weight | 117 lb. |
| Product Width | 16 in. |
| Pump Mechanism | Centrifugal |
| Motor Type | Electric |
| Voltage | 230,460v |
| Warranty | 1 year limited |
| Manufacturer Part Number | P-58-13L4-D5.0C |
