Ohio Steel 15 cu. ft. Hybrid ATV/L&G Poly Swivel Cart, 4048P-HYB

SKU: 102788599
Ohio Steel 15 cu. ft. Hybrid ATV/L&G Poly Swivel Cart, 4048P-HYB
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.7
4.7
 (354)

Quantity

TSC of summerdale #1426
20438 state hwy 59
summerdale, AL 36580
(251) 989-2525
TSC of summerdale #1426
20438 state hwy 59
summerdale, AL 36580
(251) 989-2525
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

This patented premium Ohio Steel poly Swivel Dump Cart is ideal for large hauling jobs around your yard, on the farm or out on the trail. An innovative multi-hitch allows use all year long with your lawn tractor, ATV or UTV; it's 1 cart for all seasons! Easy foot pedal activates swivel dump feature that allows for unloading anywhere within a 100 deg. radius. Operating this cart on uneven terrain is a breeze thanks to the pass-through undercarriage that provides a full 12 in. of ground clearance and a rotating hitch that allows the cart the float with the terrain. The 15 cu. ft. heaped capacity impact-resistant structural foam body will hold an impressive 1250 lb., is easy to clean and will not rust. It features molded-in slots for adding build-your-own side panels, load dividers and shelves. Bolts in cart bed are recessed to provide protection from shovels and rocks. It hauls mulch, dirt, rocks, firewood and other gardening supplies with ease.

  • 15 cu. ft. heaped capacity
  • 1,250 lb. load capacity
  • Step-on dump release pedal actives swivel mechanism allowing cart to dump load anywhere within a 100 deg. radius
  • Pivoting hitch and 12 in. ground clearance for use on uneven terrain
  • Innovative multi-hitch works with a ball or pin hitch and converts in seconds with no tools
  • 3 year limited warranty

Specification Description
Brand: Ohio Steel
Part Number: 4048P-HYB
Product Width: 39
CountryofOrigin: Made in USA
Tire Type: PNEUMATIC.
Style: MOWER ATTACHMENT.
Tire Diameter: 16
Product Length: 48.25
Type: Dump Cart
Number of Wheels: 2
Special Feature(s): Innovative multi-hitch works with a ball or pin hitch and converts in seconds with no tools.
Product Height: 13.75
Bed Material: Structural Foam
Capacity: 15 cu. ft.
Maximum Weight Capacity: 1,250 lb.
Frame Material: Steel
Product Weight: 110
Manufacturer Part Number 4048P-HYB
Ohio Steel 15 cu. ft. Hybrid ATV/L&G Poly Swivel Cart, 4048P-HYB is rated 4.7 out of 5 by 354.
Rated 4 out of 5 by from Pretty solid The trailer seems pretty solid for the most part. I feel the bar running from trailer frame to hitch could be beefed up a little. I have yet to use the trailer, bought it mostly for fetching firewood out in the woods. I did build stake racks for it as well. I do like the fact that it has grease fittings on the wheels.
Date published: 2020-01-15
Rated 5 out of 5 by from Great little trailer It worked great for us, we used it to haul sb2 behind a side by side to repair damage around a 1 mile walking trail
Date published: 2020-01-07
Rated 5 out of 5 by from Best little cart in tow! This cart was the perfect addition to my new Gator! it is easy to back up, empties with one press of the foot lever, and cleans up with the garden hose. Really pleased with this purchase!
Date published: 2020-01-02
Rated 5 out of 5 by from One tough trailer Like others have said, this is one tough trailer. Impressive quality and capacity! I used it on day one to move almost 4 cords of firewood. Even with a heaping load it didn’t groan, squeak or moan. This thing is definitely designed to carry heavy loads.
Date published: 2019-12-27
  • y_2020, m_1, d_21, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.4
  • cp_1, bvpage1
  • co_hasreviews, tv_85, tr_269
  • loc_en_US, sid_102788599, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 5ms
  • REVIEWS, PRODUCT

Do the wheels have grease zerts for the bearings?

Asked by: rnyachtclub72
Yes. This cart has grease fittings on each wheel.
Answered by: Ohio Steel Product Expert
Date published: 2019-05-02

I have a rzr 800, would like to use on camping trips. How does the pivet hitch work? Probability would add larger tires too.

Asked by: Max James
The pivoting hitch allows the hitch to turn side to side when going over uneven terrain, similar to the movement ability built into a ball coupler. This product can be used with a hitch pin or has a loop to go around the neck of a ball hitch. This allows you to use the cart with either a riding mower or ATV/UTV and can switch between the two in seconds. If you prefer a standard ball coupler and 18” wheels, we have our 4048PS-ATV which is essentially the same cart with those two features being the only difference.
Answered by: Ohio Steel Product Expert
Date published: 2019-08-30

Apparently I'm not communicating. I understand the cart has to be manually tipped, but if I do that and leave the cart attached to my mower and I pull the mower forward, will the load clear the cart or stay in it, requiring that I tip it further by hand?

Asked by: MLMc
Ok. Thanks for clarifying. The cart is not designed to continue to be pulled forward after the initial dump. You can do this but it will not tip further it will just spread out what already dumped but could not clear the cart due to the pile. It is recommended, as with all poly carts with slopes backs, to empty the remaining contents of the cart with a rake or shovel.
Answered by: Ohio Steel Product Expert
Date published: 2019-04-25

Can a 2" ball hitch receiver be attached in place of the existing one?

Asked by: firewood guy
Thank you for your question. You may replace the innovative multi-hitch system which this cart is equipped with any size ball coupler. Ohio Steel offers only a 1-7/8" coupler that will fit onto this product. Please call (800) 652-2321 x212 for more information on the 1-7/8" coupler.
Answered by: Ohio Steel Product Expert
Date published: 2017-03-18

Is it necessary to tip the cart by hand to fully dump the load, or can you pull the trailer out from under the load? The cart I have hangs up on the load and has to be removed to clear it.

Asked by: MLMc
Thanks for your question. The cart is designed to be dumped by hand. The problem you are describing is not clear to me. Please call Ohio Steel customer service at 1-800-652-2321 x212.
Answered by: Ohio Steel Product Expert
Date published: 2019-03-07

What is the level hitch height?

Asked by: Tom A
The level hitch height is 12 inches.
Answered by: CBeard
Date published: 2018-06-01

What is the tire size? Could I order the 17/8 coupler when ordering cart.

Asked by: JJB1
Thanks for your question. The tire size is 16 x 7.5-8 so it is a 16" wheel (with roller bearings). The 1-7/8" coupler may be ordered by calling Ohio Steel customer service at (800) 652-2321 x212.
Answered by: Ohio Steel Product Expert
Date published: 2017-03-18

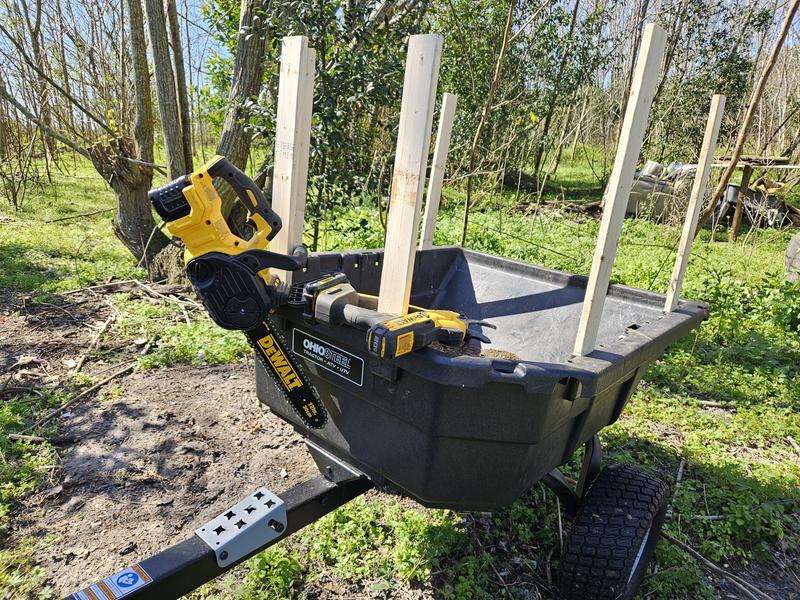

what size of wood stakes do I need to buy for making stake side and front panels?

Asked by: Martytn
Thanks for your question. "Nominal" size 1X3 will work perfectly. This corresponds to an actual board size of 3/4 x 2-1/2. Other dimensional requirements (such as length) are available on page 6 of the instruction manual for this product, which is available on TractorSupply.com. Please copy the address below into your browser bar to access this instruction manual. http://www.tractorsupply.com/static/sites/TSC/downloads/ProdContentPDFs/1027885_Man1.pdf
Answered by: Ohio Steel Product Expert
Date published: 2017-06-01
